Mechanical Diaphragm PumpsNDJ Series Mechanical Diaphragm Metering Pump
- Max Flow
- 40 - 150 L/h
- Max Press
- 3 - 10 bar
- Power
- 60 / 90 W
View Details
Mechanical Diaphragm Metering Pumps
Motor-driven mechanical diaphragm metering pumps for medium to high flow continuous dosing, with optional VFD or actuator control. Multiple brands and quotes.
93 products1 / 4
Mechanical Diaphragm Pumps
Mechanical Diaphragm PumpsNDWS Series Mechanical Diaphragm Metering Pump
- Max Flow
- 8 - 386 L/h
- Max Press
- 3 - 16 bar
- Power
- 180 W
View Details
Mechanical Diaphragm PumpsNDWL Series Mechanical Diaphragm Metering Pump
- Max Flow
- 275 - 530 L/h
- Max Press
- 4.5 - 7 bar
- Power
- 370 W
View Details
Mechanical Diaphragm PumpsND1000 Series Mechanical Diaphragm Metering Pump
- Max Flow
- 660 - 1200 L/h
- Max Press
- 3 - 5 bar
- Power
- 750 W
View Details
Mechanical Diaphragm PumpsND2000 Series Mechanical Diaphragm Metering Pump
- Max Flow
- 500 - 2000 L/h
- Max Press
- 3 - 10 bar
- Power
- 750 W
View Details
Mechanical Diaphragm PumpsHND Series Mechanical Diaphragm Metering Pump
- Max Flow
- 47 - 160 L/h
- Max Press
- 12 - 30 bar
- Power
- 370 / 550 W
View Details
Mechanical Diaphragm PumpsEdose (Yi Dao Ci) Series Mechanical Diaphragm Metering Pump
- Max Flow
- 9 - 150 L/h
- Max Press
- 3 - 10 bar
- Power
- 40 W
View Details
Mechanical Diaphragm PumpsKD Series Mechanical Diaphragm Metering Pump (Cheon-Sei / KEMPION)
- Max Flow
- 20 – 45000 mL/min
- Max Press
- max. 10 Bar
- Power
- 3φ 220/380V 50Hz (standard)
View Details
Mechanical Diaphragm Pumps
Mechanical Diaphragm Pumps
Mechanical Diaphragm PumpsSEKO Kosmo MM2 Mechanical Diaphragm Pump
- Max Flow
- 80 – 2300 L/h
- Max Press
- 10 bar
- Power
- 0.55 – 1.1 kW
View Details
Mechanical Diaphragm PumpsSEKO Kosmo MM1 Mechanical Diaphragm Pump
- Max Flow
- 3 – 530 L/h
- Max Press
- 12 bar
- Power
- 0.25 – 0.37 kW
View Details
Mechanical Diaphragm PumpsSEKO Spring MS1 Mechanical Diaphragm Metering Pump
- Max Flow
- 5.5 – 1200 L/h
- Max Press
- 10 bar
- Power
- 0.18 – 0.55 kW
View Details
Mechanical Diaphragm PumpsSEKO Spring MSA Mechanical Diaphragm Metering Pump
- Max Flow
- 10 – 120 L/h
- Max Press
- 5 bar
- Power
- 0.06 kW
View Details
Mechanical Diaphragm PumpsDoseuro Type D Spring Return Mechanical Diaphragm Metering Pump
- Max Flow
- approx. 49 – 1400 L/h
- Max Press
- approx. 3 – 14 barg
View Details
Mechanical Diaphragm PumpsDoseuro Type FM Compact Spring Return Mechanical Diaphragm Pump
- Max Flow
- approx. 14 – 47 L/h
- Max Press
- approx. 5 – 10 barg
View Details
Mechanical Diaphragm PumpsDoseuro DV101 Series Vertical Metering Pump
- Max Flow
- approx. 79 – 502 L/h
- Max Press
- approx. 3 – 13 barg
View Details
Mechanical Diaphragm PumpsMilton Roy PRIMEROYAL Model PP API675 Metering Pump
- Max Flow
- max. >15,665 L/h (single head,)
- Max Press
- up to 1,034 bar (note etc. high pressure duty, depends on liquid end)
- Power
- vertical or type; 50/60 Hz
View Details
Mechanical Diaphragm PumpsMilton Roy PRIMEROYAL Model PN API675 Metering Pump
- Max Flow
- max. >9,683 L/h (single head; inside large bore point can see approx. 9,863 L/h)
- Max Press
- up to 1,034 bar (high pressure note etc., depends on liquid end; NX small plunger inside can see approx. 1,000 bar)
- Power
- vertical or type; 50/60 Hz
View Details
Mechanical Diaphragm PumpsMilton Roy PRIMEROYAL Model PR API675 Metering Pump
- Max Flow
- max. >15,659 L/h (single head, / inside large flow point)
- Max Press
- up to 1,034 bar (high pressure note duty, depends on liquid end)
- Power
- vertical or type; 50/60 Hz
View Details
Mechanical Diaphragm PumpsMilton Roy PRIMEROYAL Model PQ API675 Metering Pump
- Max Flow
- max. 8,657 L/h (single head)
- Max Press
- max. 1,035 bar
View Details
Mechanical Diaphragm PumpsMilton Roy PRIMEROYAL X (PX) Ultra-High Pressure API675 Metering Pump
- Max Flow
- max. 60,560 L/h
- Max Press
- 1,380 bar（20K PSIG）
- Power
- single head max. 75 kW; can combination
View Details

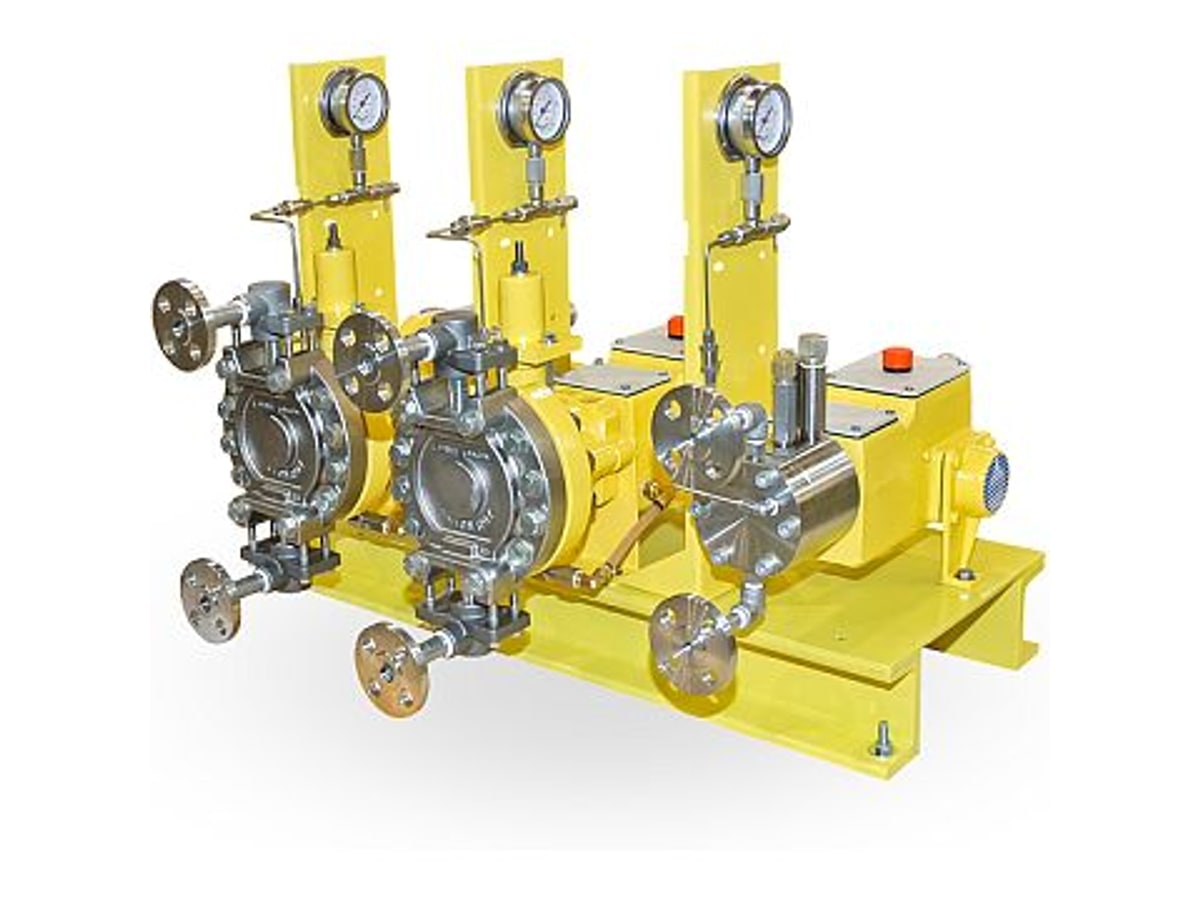

Mechanical Diaphragm PumpsMilton Roy MILROYAL Series High-Pressure Modular Metering Pump
- Max Flow
- approx. 125–7,873 L/h (: to 2080 gph)
- Max Press
- approx. 7–1,380 bar (max. approx. 20,000 psi)
View Details

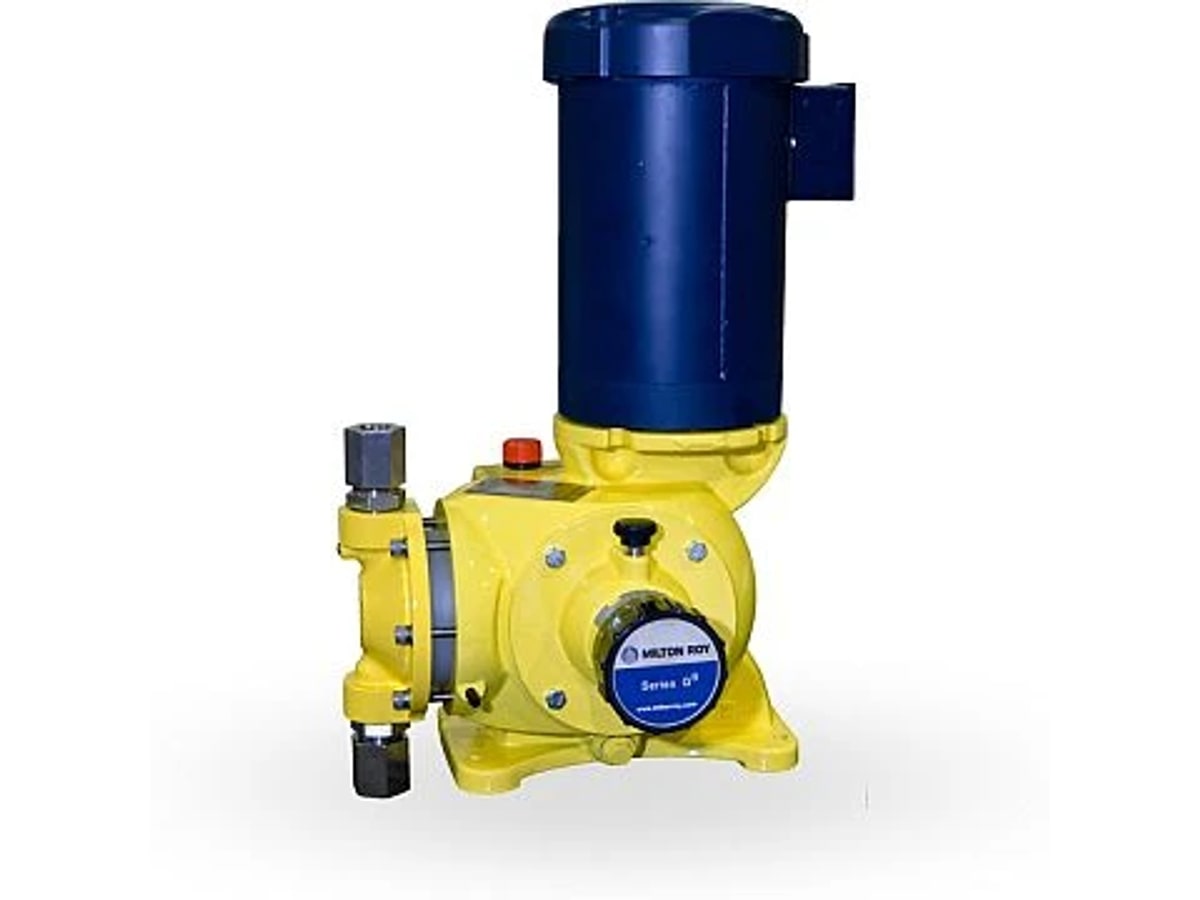

Mechanical Diaphragm PumpsMilton Roy G Series GM/GB Mechanical Diaphragm Metering Pump
- Max Flow
- single head max. 1800 L/h (GB1800; 2026/2024)
- Max Press
- max. discharge pressure 12 bar (GM small flow; inside per type no. 12/10/7/5/4/3–4 bar)
View Details
Selecting a mechanical diaphragm pump
A mechanical diaphragm metering pump uses an electric motor, gearbox and eccentric or cam mechanism to move the diaphragm. The diaphragm separates the drive from the pumped liquid, so there is no dynamic seal to leak.
Compared with solenoid pumps they deliver higher flows and suit continuous dosing at low to moderate pressure, for example PAC, PAM and hypochlorite feed in water and wastewater plants or cooling-water treatment. Output is usually set with a manual stroke-length knob, and a VFD motor or electric stroke actuator can be added for automatic control.
Key selection points are maximum flow and discharge pressure, motor supply (single or three phase, explosion-proof or not), diaphragm and head materials such as PVC, PVDF, PTFE or stainless steel, and the viscosity and solids content of the liquid.
