Mechanical Diaphragm Pumps

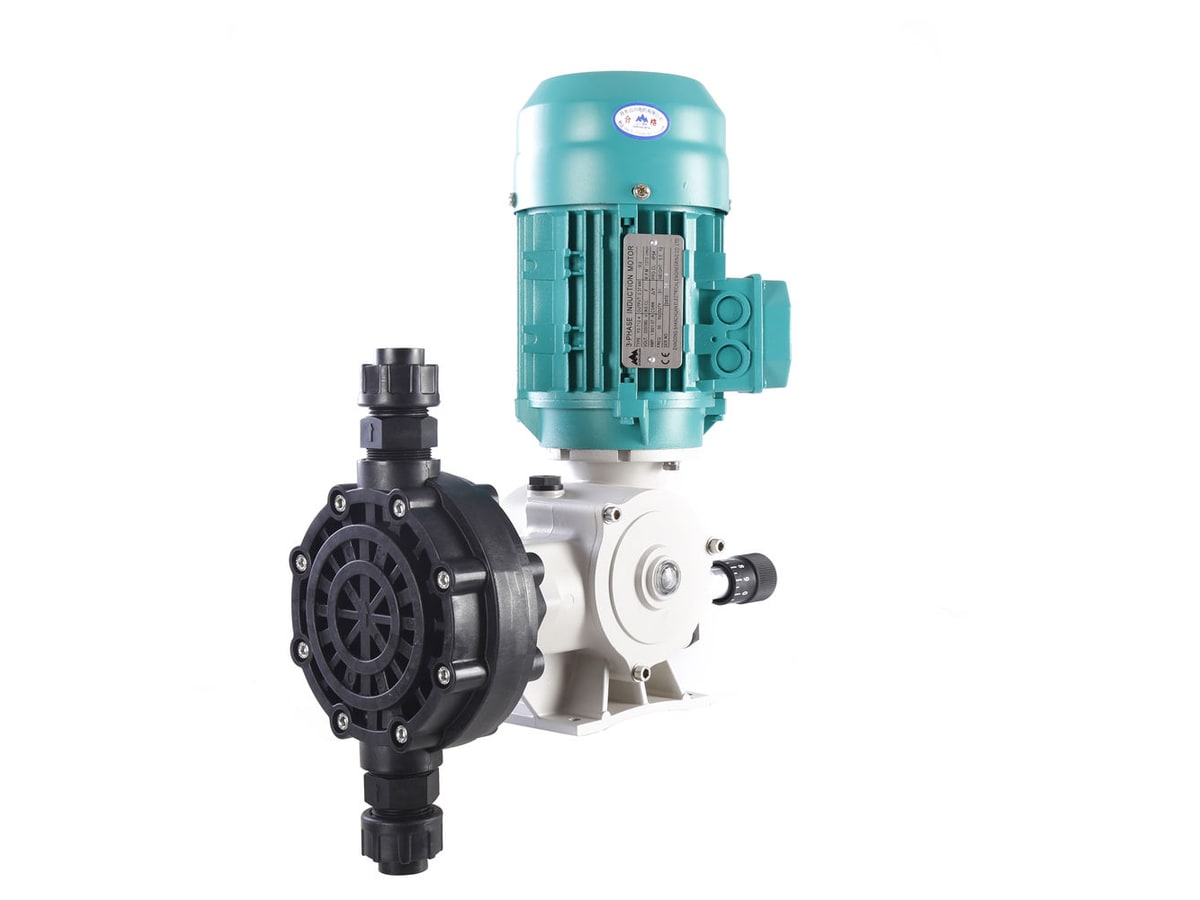

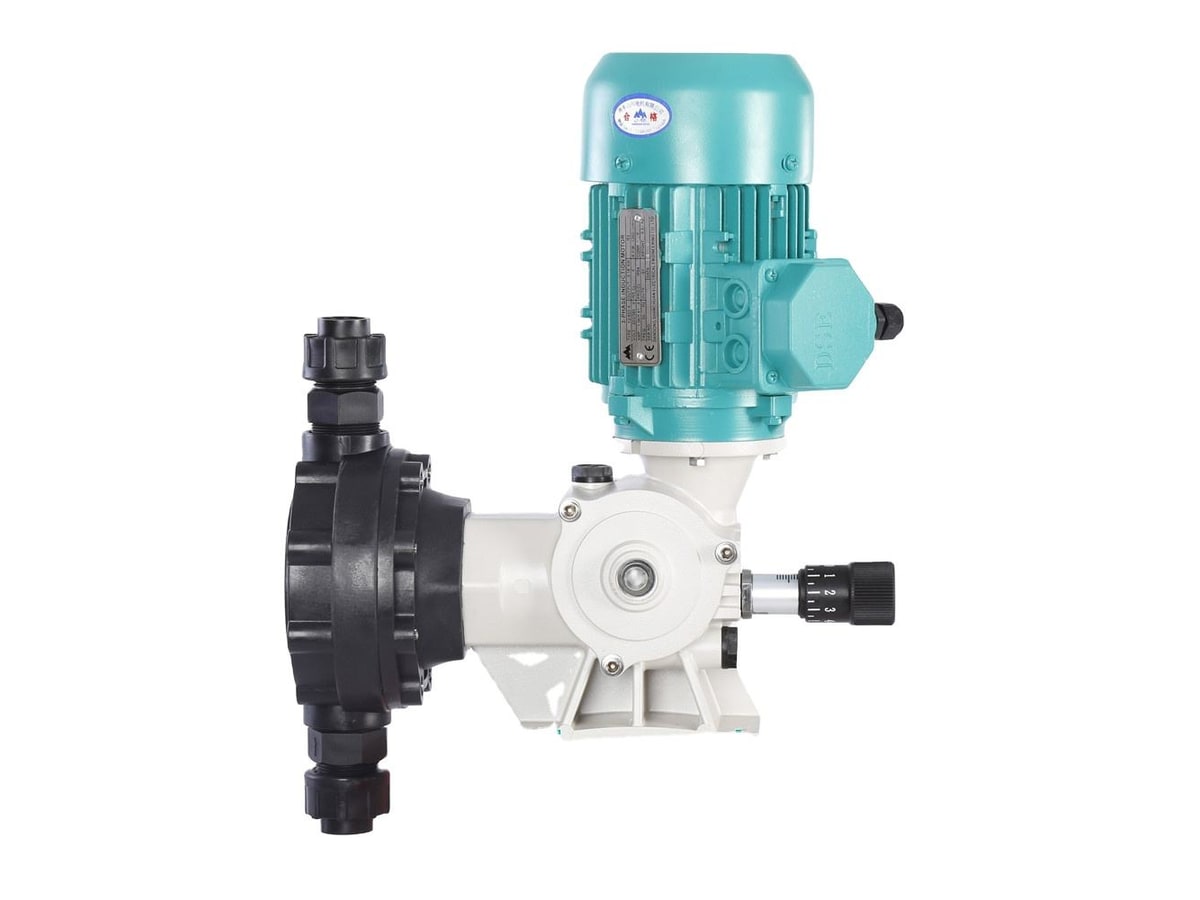

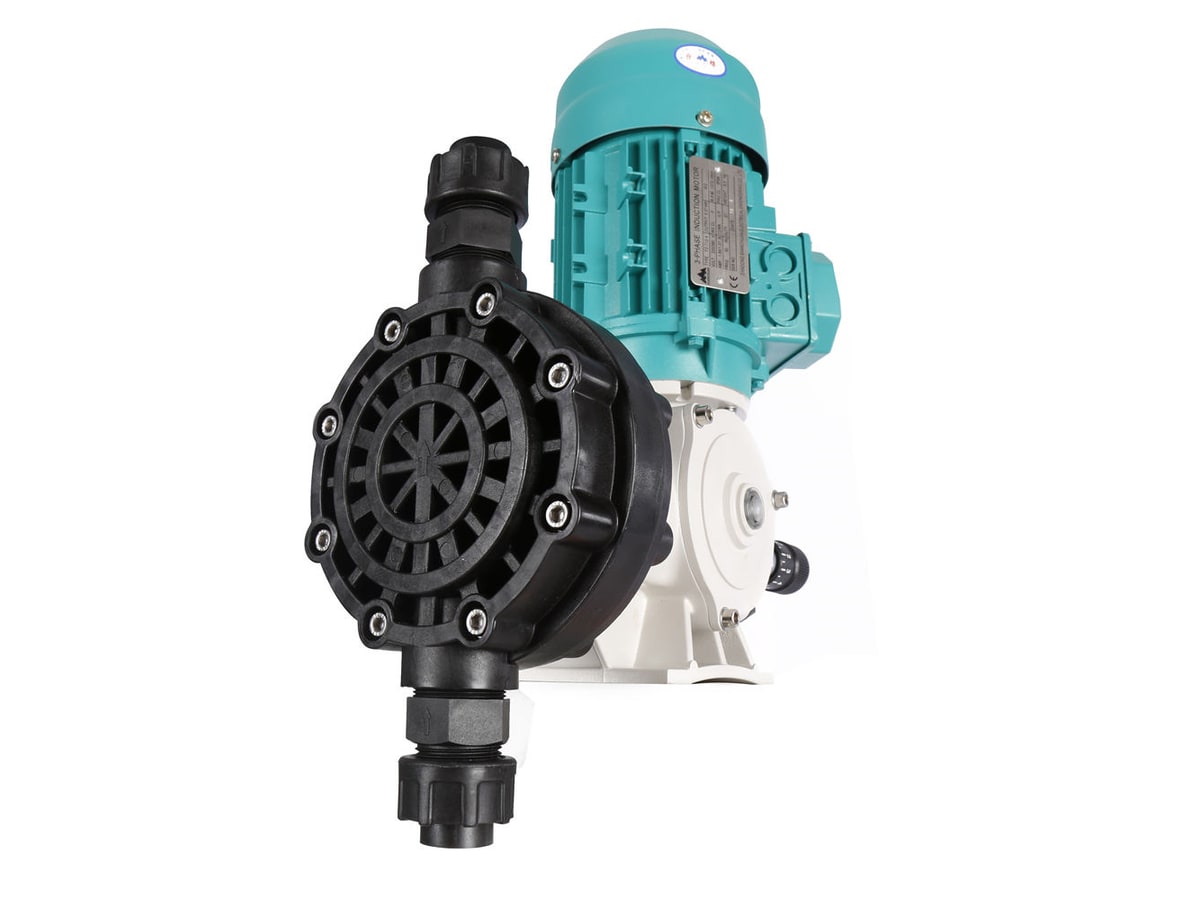

NDWL Series Mechanical Diaphragm Metering Pump
High-flow mechanical diaphragm pump, about 275-530 L/h, cast-aluminum housing and precision drive; optional 4-20mA stroke, VFD and Ex motors.
Max flow
275 - 530 L/h
Max pressure
4.5 - 7 bar
Turndown / accuracy
—
Wetted materials
PVC / PVDF / PTFE / SS316
Protection
—
Power
—
Features
- High-strength low-pressure cast aluminum housing
- Precision worm-gear drive, energy efficient
- Stroke length adjustable during operation
- Heads PVC/PVDF/PTFE/SS316
- Pure PTFE diaphragm for stable safe dosing
- Optional 4-20mA stroke, VFD and Ex motors
Specifications
| Flow rate | 275 - 530 L/h |
| Pressure | 4.5 - 7 bar |
| Motor power | 370 W |
| Pump speed | 118 / 177 SPM |
| Liquid-end material | PVC / PVDF / PTFE / SS316 |
Applications
Materials & media
| Liquid end | PVC / PVDF / PTFE / SS316 |
| Diaphragm | PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Manual stroke | Standard |
| 4-20mA / VFD | — |
| Explosion-proof motor | — |
Models & specs
| Model | Flow | Pressure | SPM | Power | Notes | |
| NDWL-275/0.7 | 275 L/h | 7 bar | 118 | 370 W | diaphragm 120mm | |
| NDWL-355/0.7 | 355 L/h | 7 bar | 118 | 370 W | ||
| NDWL-410/0.6 | 410 L/h | 6 bar | 177 | 370 W | ||
| NDWL-530/0.45 | 530 L/h | 4.5 bar | 177 | 370 W |

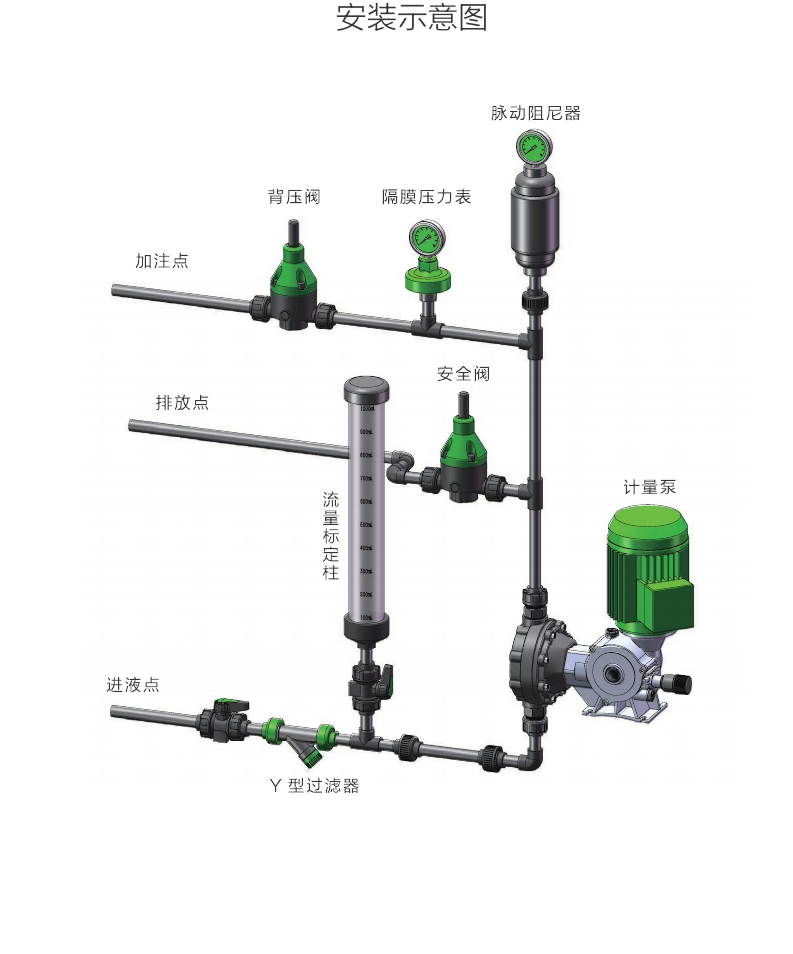

Dimensions & installation
total height approx. 370mm; base 125×113mm, mounting 97×87mm (φ10.5).

Downloads
