Mechanical Diaphragm Pumps

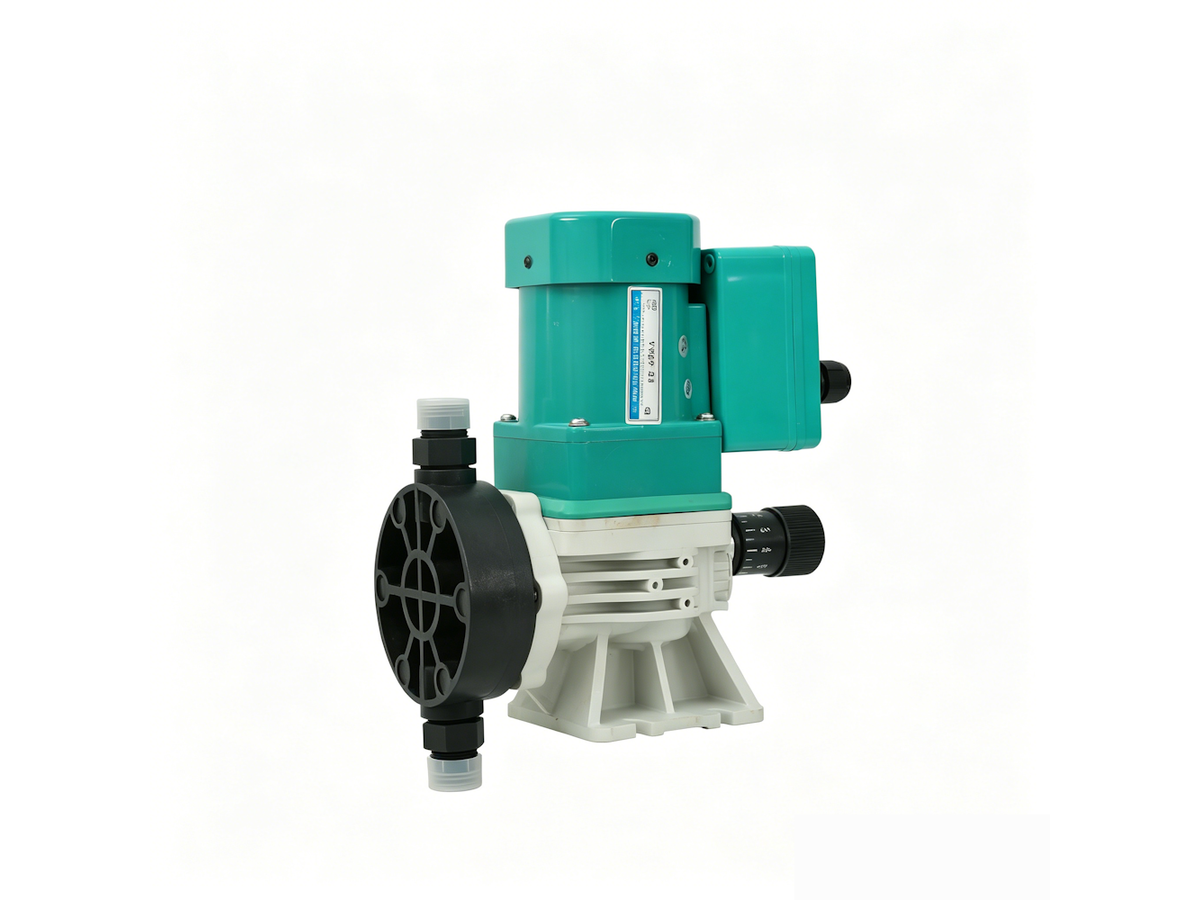

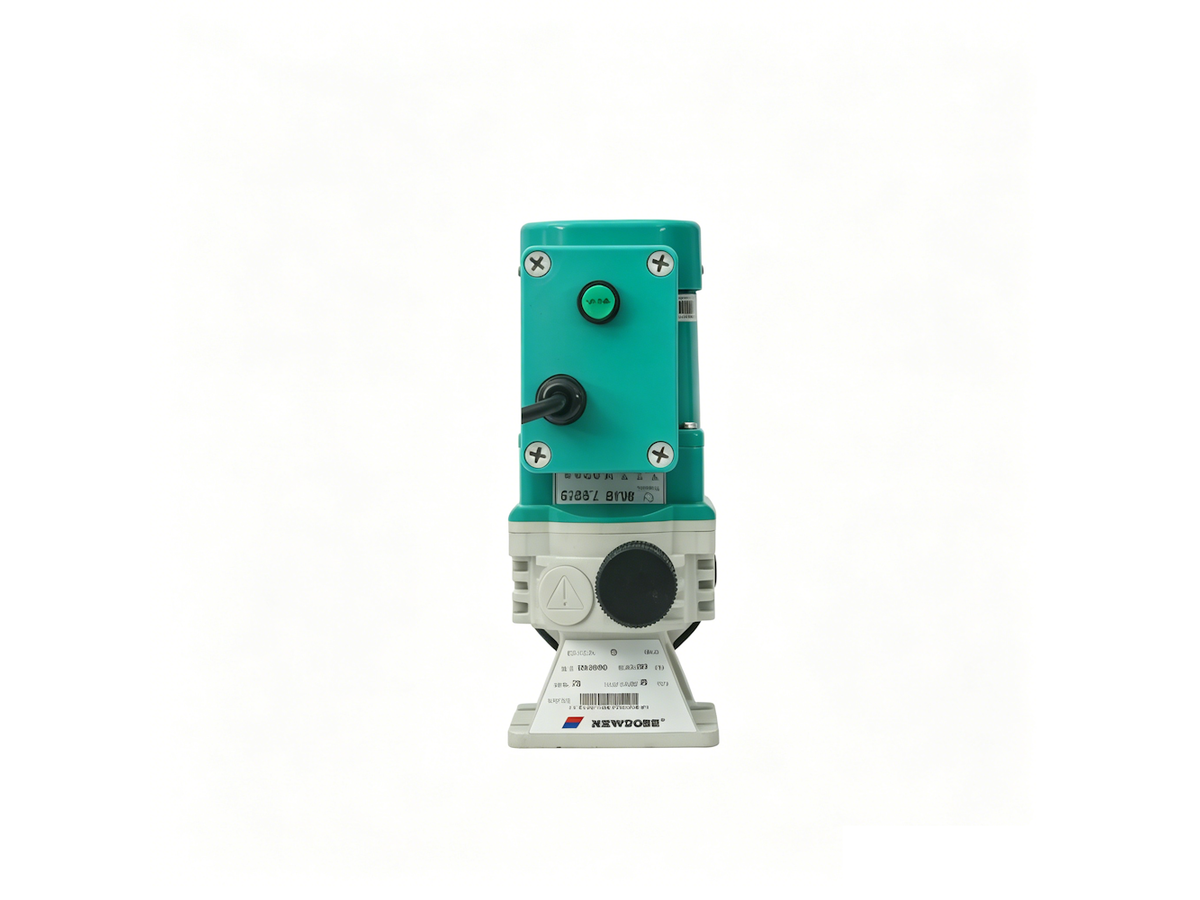

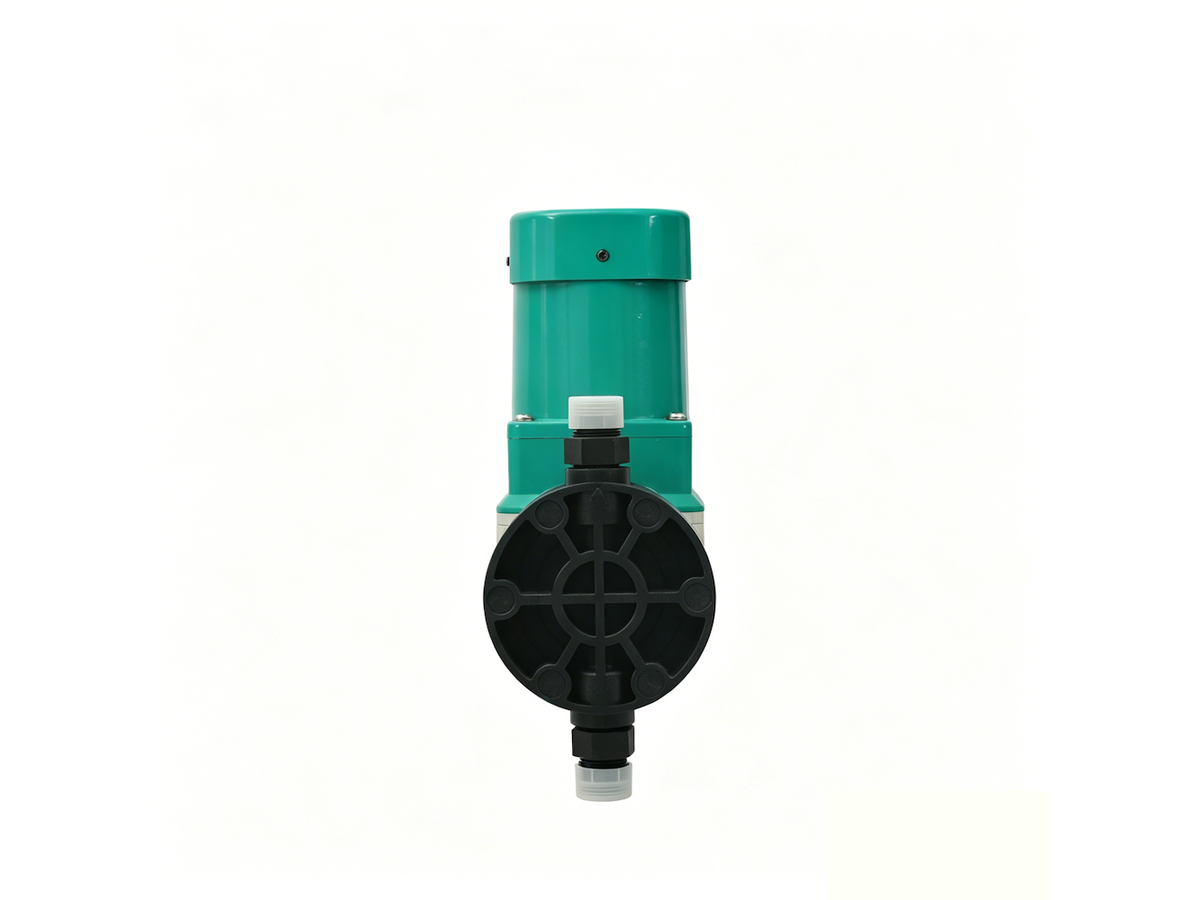

Edose (Yi Dao Ci) Series Mechanical Diaphragm Metering Pump
Lightweight Edose mechanical diaphragm pump, models E-9/1.0 to E-150/0.3, 9-150 L/h; one-button start/stop, pure PTFE diaphragm dry-run capable with 5-year warranty.
Max flow
9 - 150 L/h
Max pressure
3 - 10 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
220 / 380 V
Features
- One-button start/stop, no extra control cabinet
- Optional multifunction junction box (switch, motor protection, level)
- Pure PTFE diaphragm, dry-run capable, 5-year warranty
- Self-locking adjustment for stable displacement
- Lightweight design, compact footprint, lower energy use
Specifications
| Flow rate | 9 - 150 L/h |
| Pressure | 3 - 10 bar |
| Motor power | 40 W |
| Power supply | 220 / 380 V |
| Model range | E-9/1.0 … E-150/0.3 |
Applications
Materials & media
| Liquid end | PVC / PVDF / PTFE / SS316 |
| Diaphragm | PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| One-key start/stop | Standard |
| Self-locking stroke adjust | Standard |
| Multifunction junction box | — |
Models & specs
| Model | Flow | Pressure | SPM | Power | |
| E-9/1.0 | 9 L/h | 10 bar | 54 | 40 W | |
| E-15/1.0 | 15 L/h | 10 bar | 90 | 40 W | |
| E-30/0.7 | 30 L/h | 7 bar | 90 | 40 W | |
| E-42/0.7 | 42 L/h | 7 bar | 180 | 40 W | |
| E-60/0.5 | 60 L/h | 5 bar | 180 | 40 W | |
| E-72/0.5 | 72 L/h | 5 bar | 180 | 40 W | |
| E-90/0.3 | 90 L/h | 3 bar | 180 | 40 W | |
| E-120/0.3 | 120 L/h | 3 bar | 180 | 40 W | |
| E-150/0.3 | 150 L/h | 3 bar | 174 | 40 W |

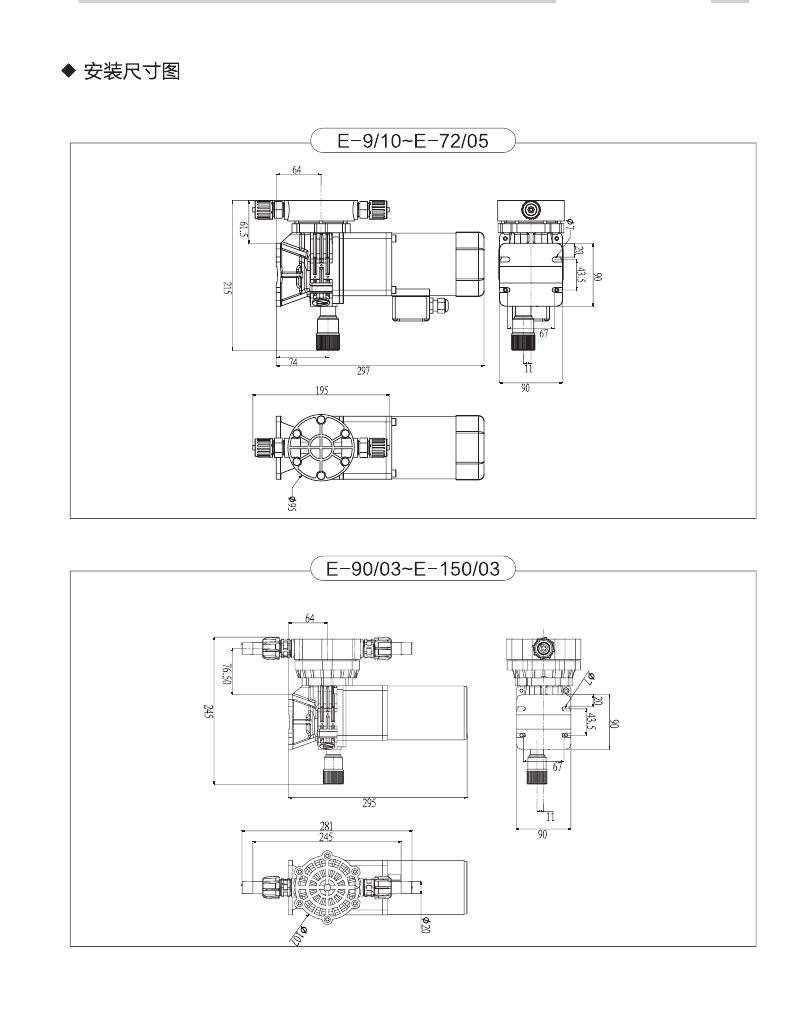

Dimensions & installation
mounting dimensions see 25 mounting dimensions. power supply 220/380V.
