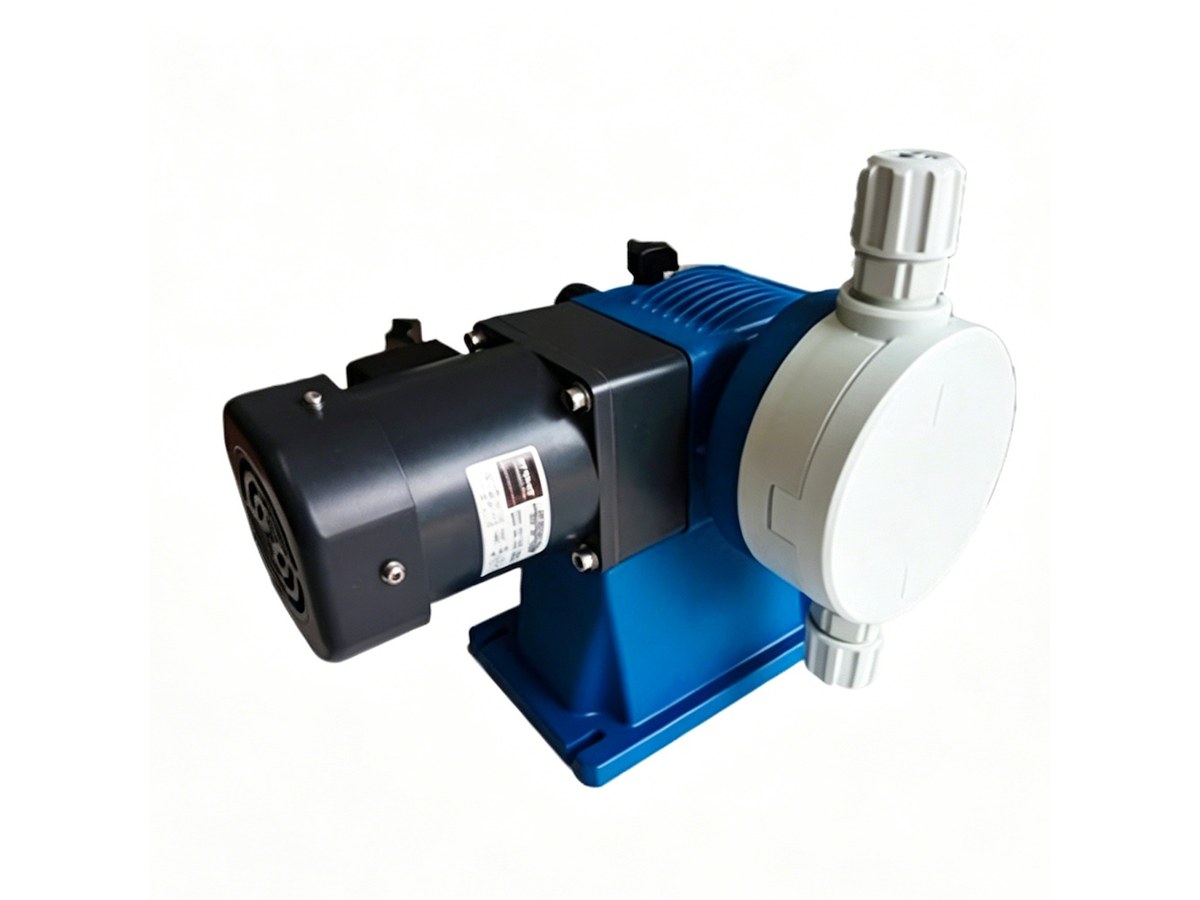

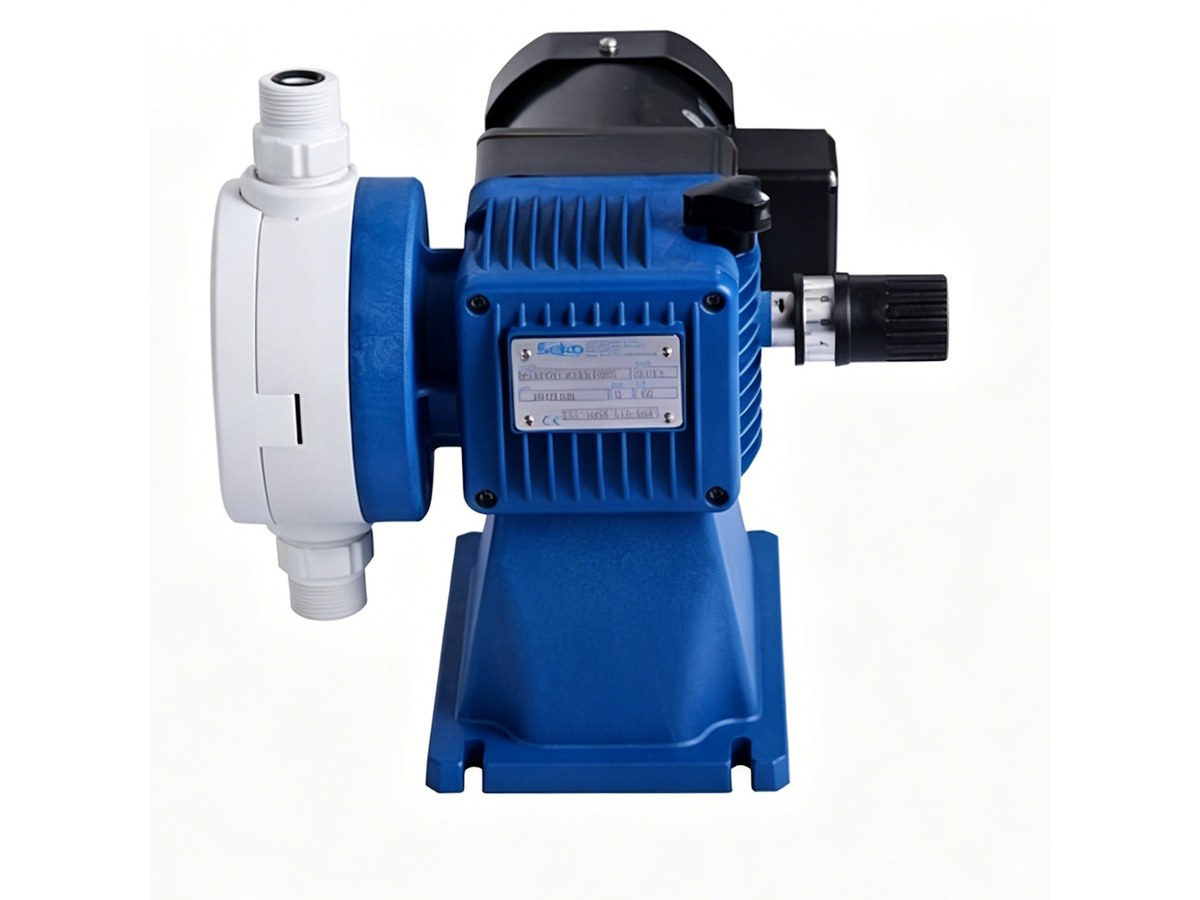

SEKO Spring MSA Mechanical Diaphragm Metering Pump
Newest Spring member with dual-cam spring return and PPS housing. Flow 10–120 L/h, max 5 bar.
Max flow
10 – 120 L/h
Max pressure
5 bar
Turndown / accuracy
—
Wetted materials
PVC / SS316L · PTFE diaphragm
Protection
—
Power
—
Features
- Dual-cam mechanism, quiet and stable
- PPS housing: chemical & heat resistant
- Manual stroke adjustment
- 0.06 kW motor; 3ph or 1ph
Specifications
| Flow | 10 – 120 L/h |
| Max pressure | 5 bar |
| Motor power | 0.06 kW |
| Wetted parts | PVC / SS316L · PTFE diaphragm |
| Housing | PPS |
| Brand | SEKO |
Applications
Materials & media
| Wetted parts | PVC / SS316L · PTFE diaphragm |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | SPM | Power | Weight | Tube | Notes | |
| MSAF070P | 10 L/h | 5 bar | 30 | 0.06 kW/4P | 11/8 kg | 8×12 / 3/8" GF / DN15 | diaphragm Ø70 mm · stroke 4 mm | |
| MSAF070O | 20 L/h | 5 bar | 50 | 0.06 kW/4P | 11/8 kg | 8×12 / 3/8" GF / DN15 | diaphragm Ø70 mm · stroke 4 mm | |
| MSAF070N | 40 L/h | 5 bar | 100 | 0.06 kW/4P | 11/8 kg | 8×12 / 3/8" GF / DN15 | diaphragm Ø70 mm · stroke 4 mm | |
| MSAF070M | 60 L/h | 5 bar | 150 | 0.06 kW/4P | 11/8 kg | 8×12 / 3/8" GF / DN15 | diaphragm Ø70 mm · stroke 4 mm | |
| MSAF070R | 90 L/h | 5 bar | 166 | 0.06 kW/4P | 11/8 kg | 8×12 / 3/8" GF / DN15 | diaphragm Ø70 mm · stroke 5 mm | |
| MSAH070R | 120 L/h | 3 bar | 166 | 0.06 kW/4P | 11/8 kg | 8×12 / 3/8" GF / DN15 | diaphragm Ø70 mm · stroke 7 mm |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
