Mechanical Diaphragm Pumps
NDJ Series Mechanical Diaphragm Metering Pump
Compact mechanical diaphragm pump (NDJS/NDJL), about 40-150 L/h, tank-mountable; heads in PVC/PVDF/PTFE/SS316.
Max flow
40 - 150 L/h
Max pressure
3 - 10 bar
Turndown / accuracy
—
Wetted materials
PVC / PVDF / PTFE / SS316
Protection
—
Power
—
Features
- Eccentric shaft supported by bearings both ends
- Grease-lubricated gearbox, easy maintenance
- Stroke length adjustable while running
- Head materials PVC, PVDF, PTFE, SS316
- Long-life pure PTFE diaphragm
- Can mount directly on dosing tanks
Specifications
| Flow rate | 40 - 150 L/h |
| Pressure | 3 - 10 bar |
| Motor power | 60 / 90 W |
| Sub-series | NDJS / NDJL |
| Liquid-end material | PVC / PVDF / PTFE / SS316 |
Applications
Materials & media
| Liquid end | PVC / PVDF / PTFE / SS316 |
| Diaphragm | PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Manual stroke | Standard |
| Electric stroke 4-20mA | — |
Models & specs
| Model | Flow | Pressure | SPM | Power | Notes | |
| NDJS-40/1.0 | 40 L/h | 10 bar | 87 | 60 W | stroke 5mm diaphragm 90mm | |
| NDJS-60/0.5 | 60 L/h | 5 bar | 104 | 60 W | ||
| NDJS-75/0.5 | 75 L/h | 5 bar | 130 | 60 W | ||
| NDJS-100/0.5 | 100 L/h | 5 bar | 104 | 60 W | ||
| NDJS-130/0.5 | 130 L/h | 5 bar | 130 | 60 W | ||
| NDJS-150/0.3 | 150 L/h | 3 bar | 130 | 60 W | diaphragm 105mm | |
| NDJL-70/1.0 | 70 L/h | 10 bar | 87 | 90 W | ||
| NDJL-80/0.7 | 80 L/h | 7 bar | 130 | 90 W | ||
| NDJL-105/0.7 | 105 L/h | 7 bar | 104 | 90 W | ||
| NDJL-150/0.5 | 150 L/h | 5 bar | 130 | 90 W |

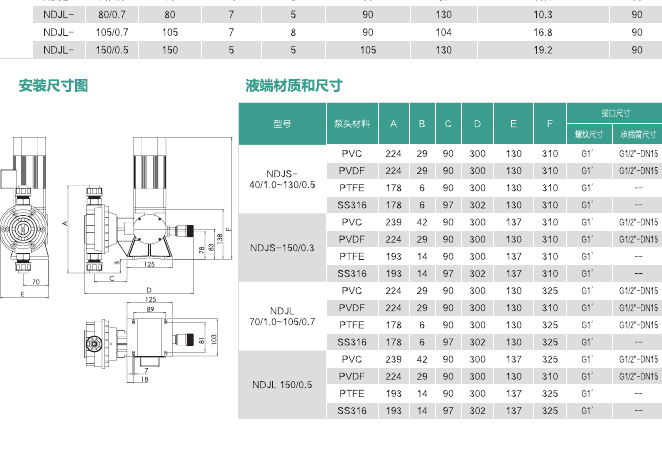

Dimensions & installation
NDJS-40~130: A=224 B=29 C=90 D=300 E=130 F=310; NDJS-150: A=239 B=42; NDJL motor 90W F=325. connection is G1" or G1/2"-DN15.
Downloads
