Mechanical Diaphragm Pumps

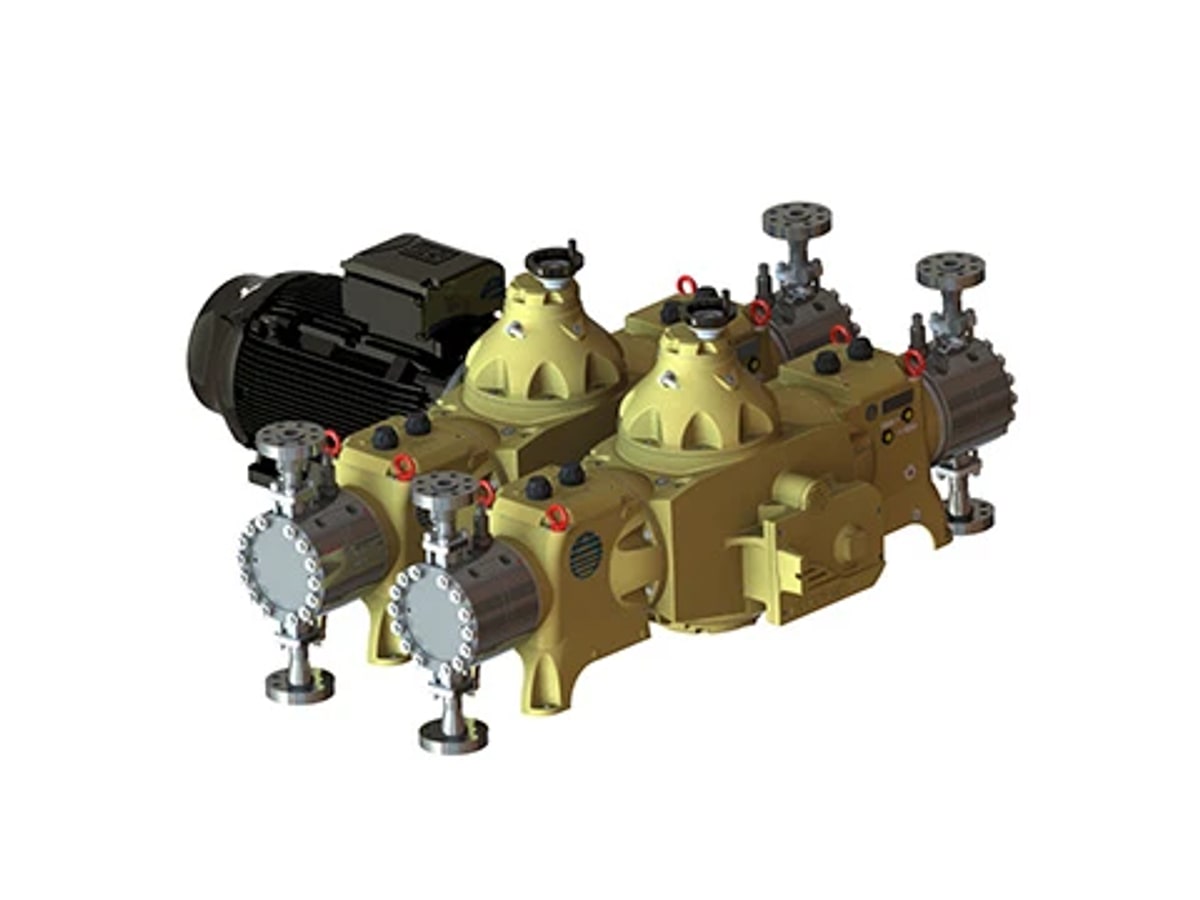

Milton Roy PRIMEROYAL X (PX) Ultra-High Pressure API675 Metering Pump

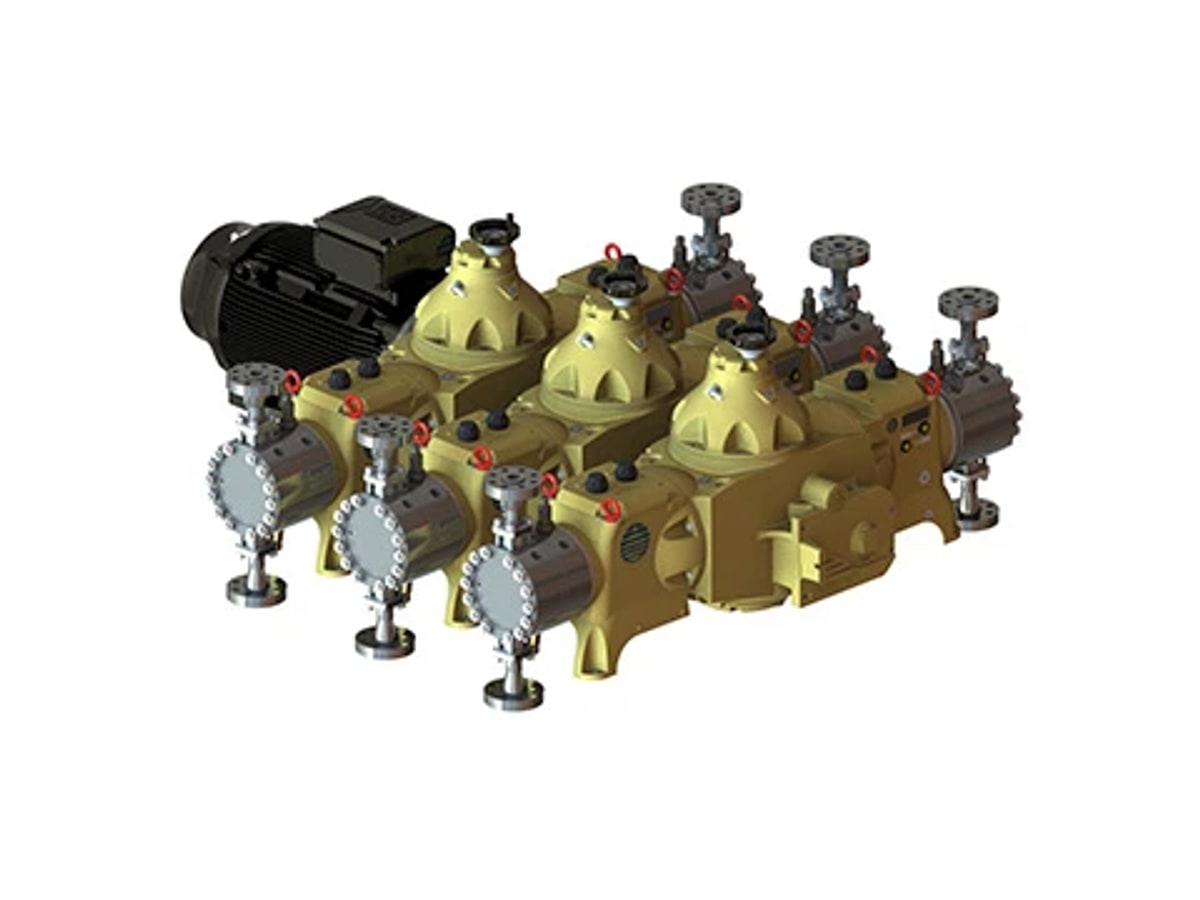

PRIMEROYAL X (PX) ultra-high pressure API 675 pump up to 1,380 bar (20K PSIG); triplex flow up to 60,560 L/h. Thrust 60,000 N, stroke 120 mm, max 175 spm, simplex motor up to 75 kW.
Max flow
max. 60,560 L/h
Max pressure
1,380 bar（20K PSIG）
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- API 675 compliant; API 674 in fixed-stroke configuration
- Compact variable eccentric drive; capacity adjustable running or stopped
- Vertical or horizontal motor; manual or electric stroke control
- Liquid ends: packed plunger, PTFE double diaphragm, metallic double diaphragm
- Multiplexable; ATEX motor options
- Modular design for demanding industrial processes
Specifications
| Flow | max. 60,560 L/h |
| Max pressure | 1,380 bar（20K PSIG） |
| Thrust | 60,000 N |
| Stroke length | 120 mm（100%） |
| Stroke speed | max. 175 spm |
| Motor power | single head max. 75 kW; can combination |
| Liquid ends | PTFE double diaphragm / metal double diaphragm |
| Motor | vertical or type |
| Brand | m Milton Roy |
| Standard | API 675 |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Notes | |
| PX single head | depends on liquid end and stroke configuration | max. 1,380 bar | ultra-high pressure API675; optional plunger, PTFE double diaphragm, metal double diaphragm; with stroke controller can remote high accuracy | |
| PX | max. 60,560 L/h | max. 1,380 bar | flow up to 60,560 L/h; high pressure large flow dosing | |
| PX- metal double diaphragm | selection | ultra-high pressure | metal double diaphragm liquid end + vertical motor + manual stroke adjustment is type configuration |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
