Solenoid Diaphragm Pumps

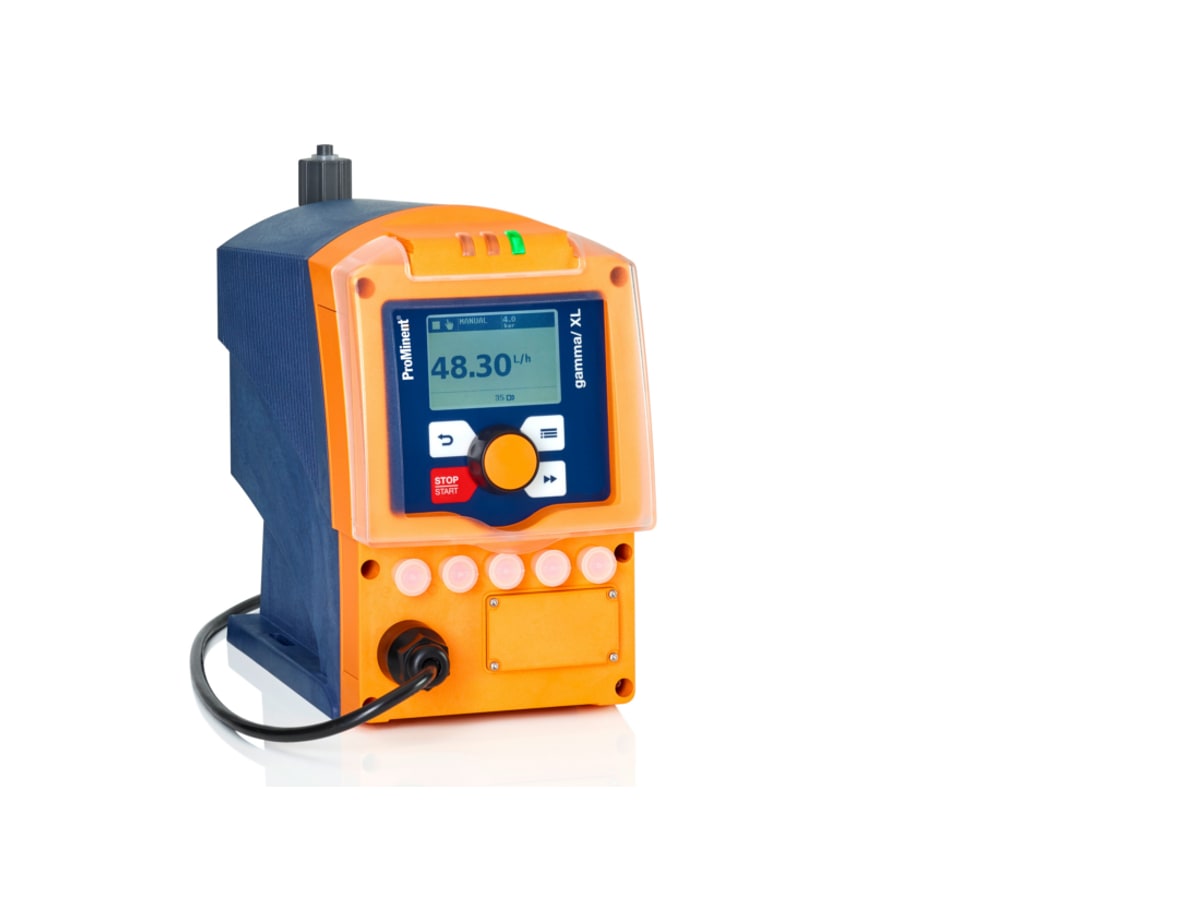

ProMinent gamma/XL Solenoid Diaphragm Metering Pump
Larger gamma/X sibling: 4 ml/h–80 L/h, 25–2 bar, same intelligence and connectivity.
Max flow
4 ml/h – 80 L/h
Max pressure
25 – 2 bar
Turndown / accuracy
±1%
Wetted materials
—
Protection
IP66
Power
—
Features
- 4 ml/h–80 L/h, 25–2 bar

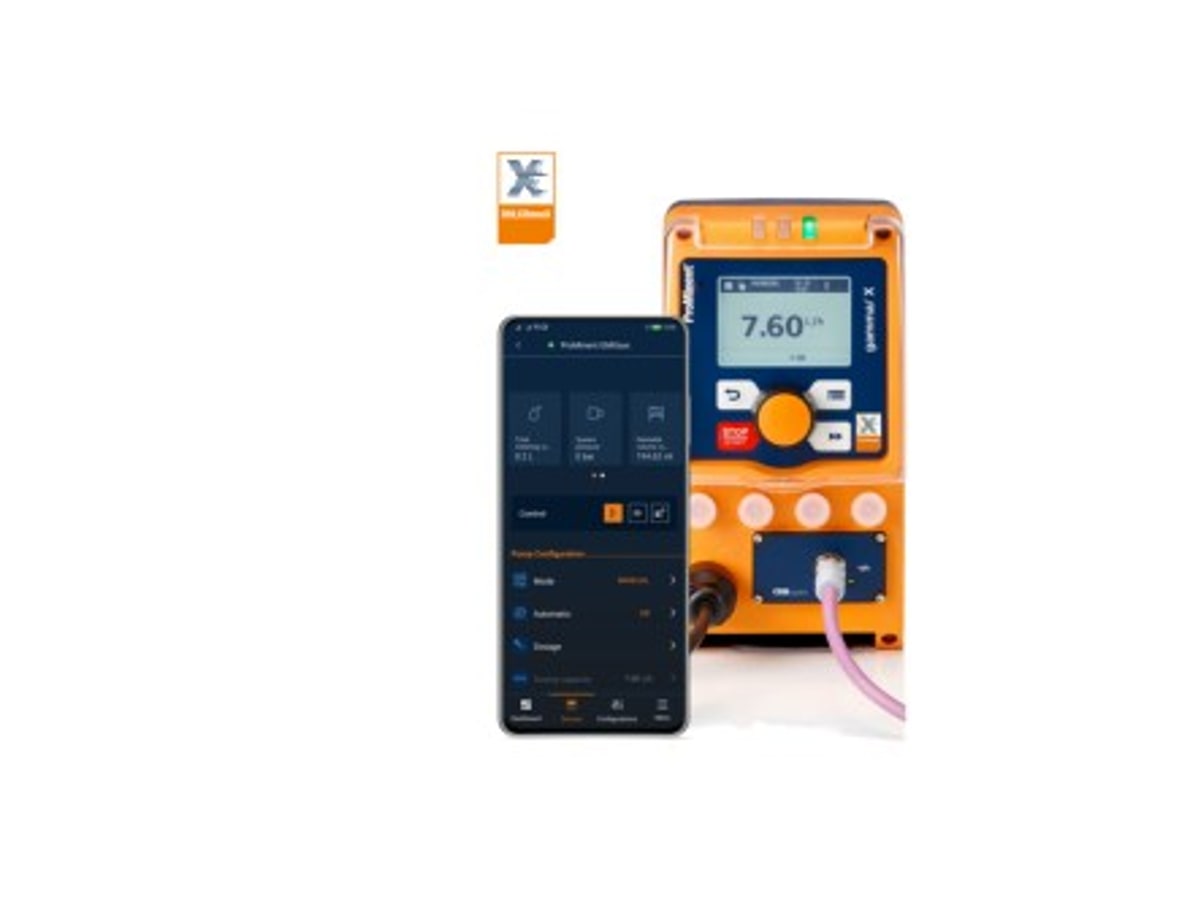

- Same intelligence as gamma/X
- Extended flow capacity
Specifications
| Flow | 4 ml/h – 80 L/h |
| Back pressure | 25 – 2 bar |
| Brand | ProMinent |
| Series flow | 4 ml/h – 80 L/h |
| Pressure | 25 – 2 bar |
| Repeatability | ±1% |
| Avg power | 78 W |
| Ingress | IP66 |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | SPM | Notes | |
| GXLa 2508 | 7.5 L/h | 25 bar | 200 | only NP/SS | |
| GXLa 1608 | 7.8 L/h | 16 bar | 200 | ||
| GXLa 1612 | 12 L/h | 16 bar | 200 | ||
| GXLa 1020 | 19.6 L/h | 10 bar | 200 | ||
| GXLa 0730 | 29.4 L/h | 7 bar | 200 | ||
| GXLa 0450 | 49 L/h | 4 bar | 200 | ||
| GXLa 0280 | 78.5 L/h | 2 bar | 200 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
