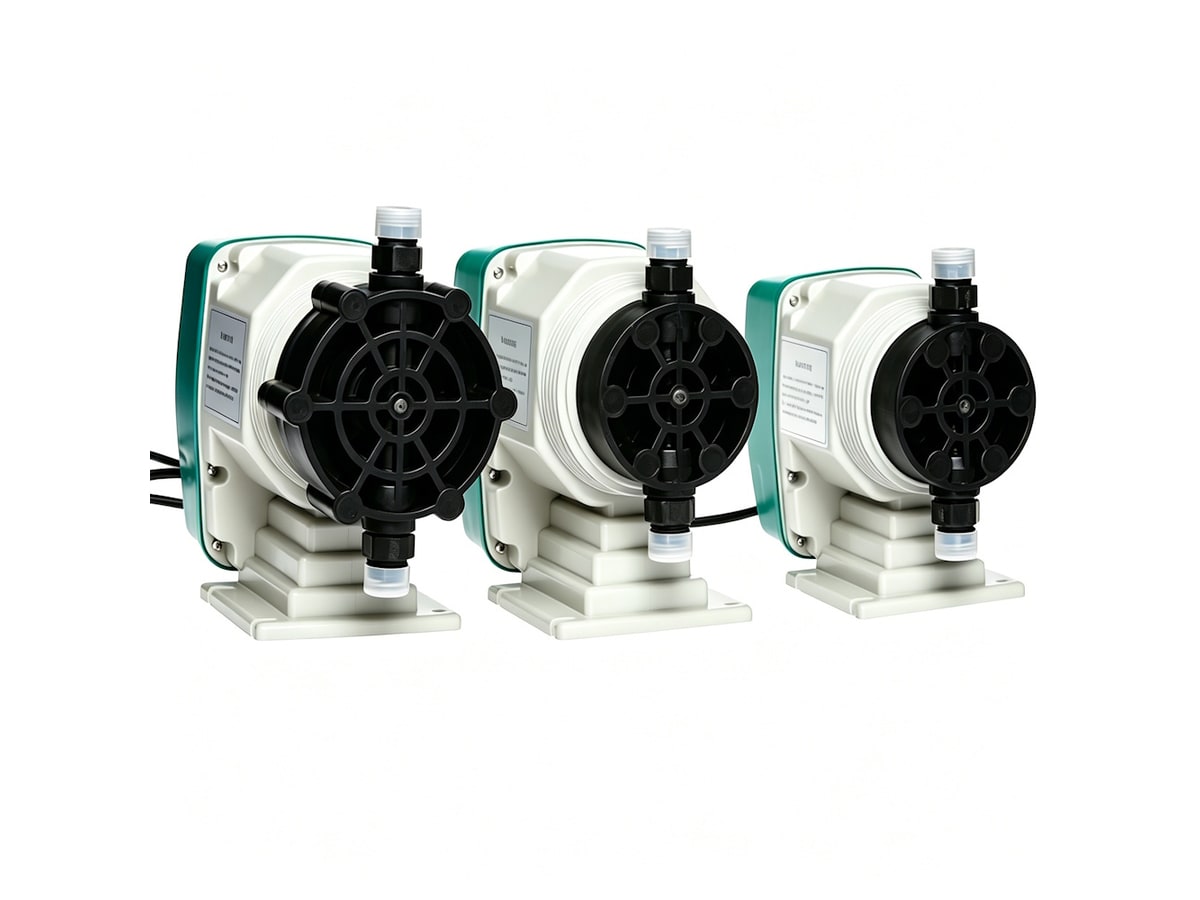

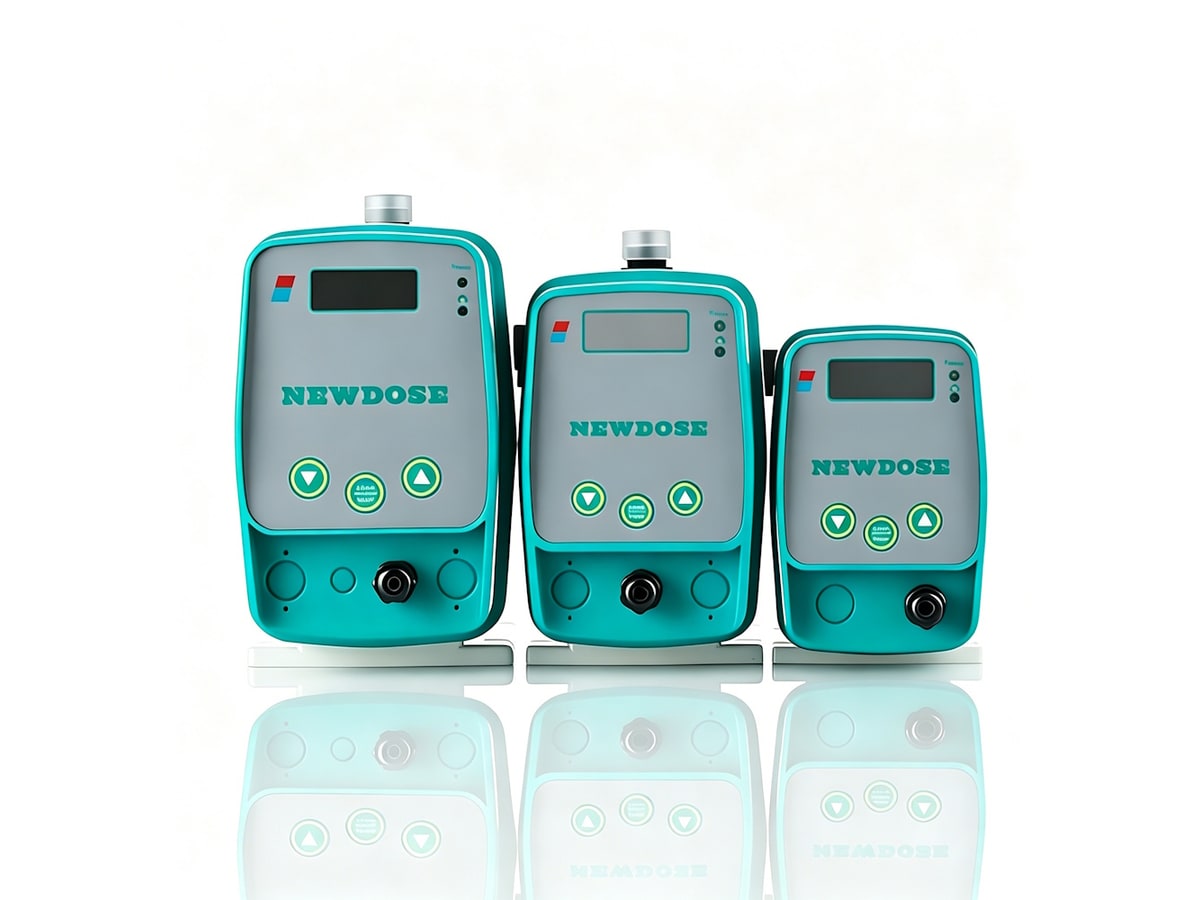

DC Series Solenoid Diaphragm Metering Pump

RS485 smart solenoid diaphragm pump for host or dedicated HMI centralized control; one screen can control up to 128 pumps.

Max flow

2 - 55 L/h

Max pressure

0.1 - 16 Bar

Turndown / accuracy

—

Wetted materials

—

Protection

—

Power

220V 50Hz

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Solenoid Diaphragm Pumps). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

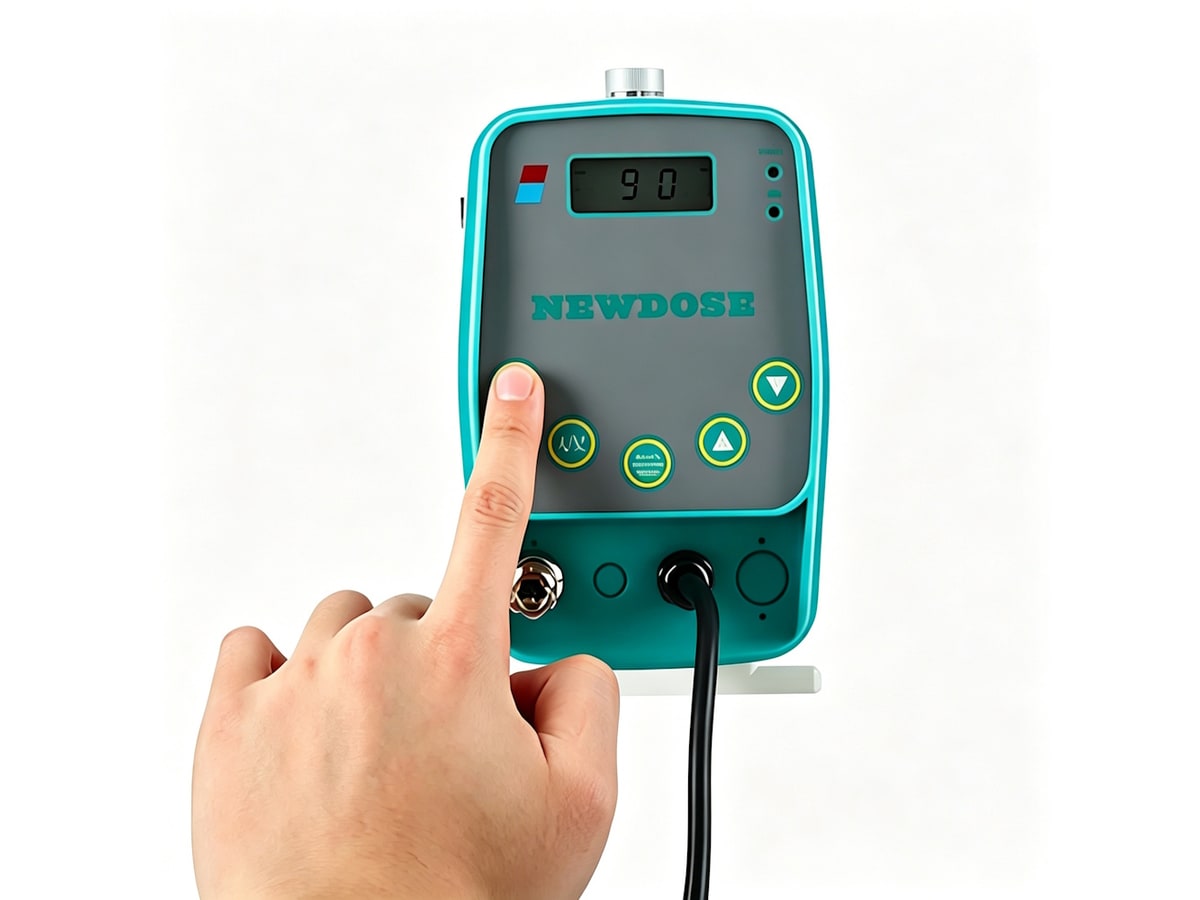

Manual up/down keypad control
RS485 remote smart communication
Online start/stop and parameter control from host
Dedicated HMI supports up to 128 pumps
Digital operating-frequency display
Level switch interface

Specifications

Flow rate	2 - 55 L/h
Pressure	0.1 - 16 Bar
Stroke frequency	120 - 240 SPM
Control	RS485
Power supply	220V 50Hz
Weight	3.8 kg

Applications

Multi-pump dosing rooms

Smart-water remote O&M

Highly automated process dosing

Skid system communication integration

Materials & media

Head	PP / PVC / PVDF / SS316 / PTFE (selection code PPV/PVT/PVDF/SST/PTFE)
Diaphragm	PTFE
Valve seat	PTFE / SS316 (depends on head)
Ball	SS316 (depends on head)
Seal	FKM (optional EPDM / PTFE / AFLAS)

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Manual	Standard
RS485	Standard

Models & specs

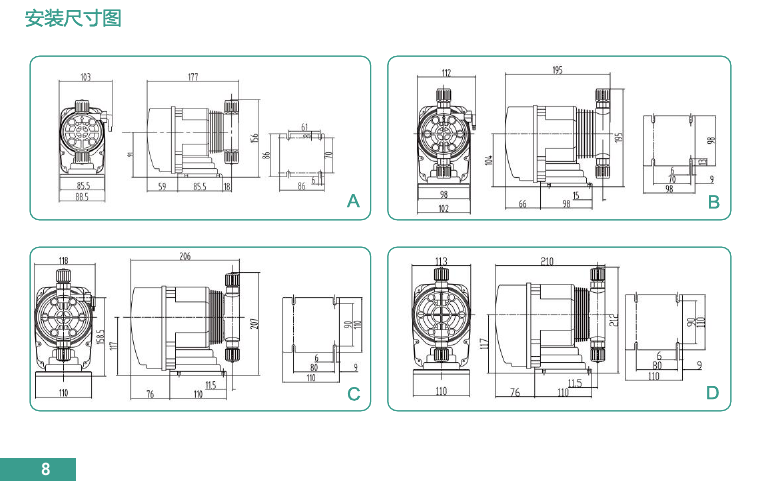

Model	Flow	Pressure	Install size
DC-02-07-L	2 L/h	7 Bar	C
DC-03-07-L	3 L/h	7 Bar	C
DC-05-05-L	5 L/h	5 Bar	C
DC-09-03-L	9 L/h	3 Bar	C
DC-02-16-X	2 L/h	16 Bar	C
DC-06-07-X	6 L/h	7 Bar	C
DC-09-07-X	9 L/h	7 Bar	C
DC-12-07-X	12 L/h	7 Bar	C
DC-15-03-X	15 L/h	3 Bar	C
DC-20-03-X	20 L/h	3 Bar	C
DC-30-03-X	30 L/h	3 Bar	C
DC-50-02-X	50 L/h	2 Bar	D
DC-06-16-GX	6 L/h	16 Bar	C
DC-23-05-GX	23 L/h	5 Bar	C
DC-33-03-GX	33 L/h	3 Bar	C
DC-55-0.1-GX	55 L/h	0.1 Bar	C
