Solenoid Diaphragm Pumps

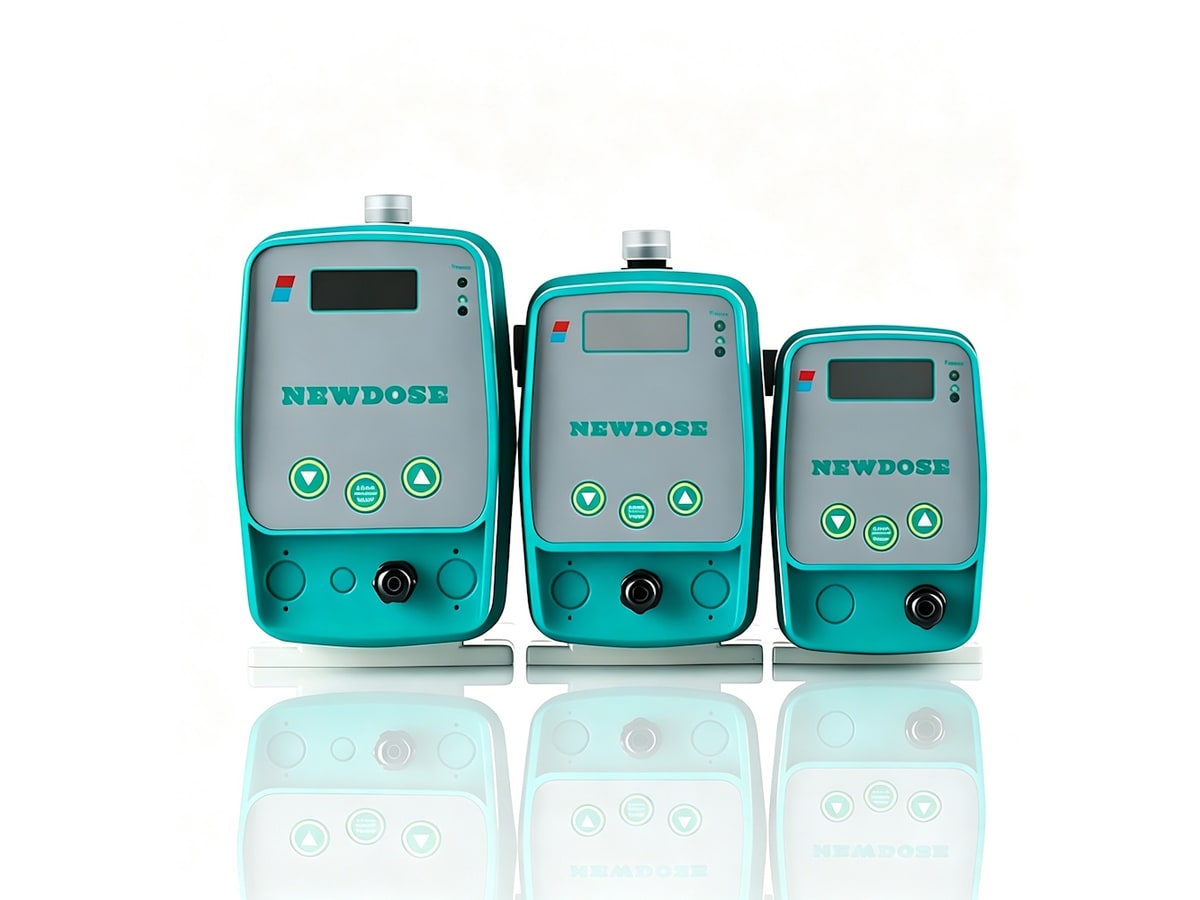

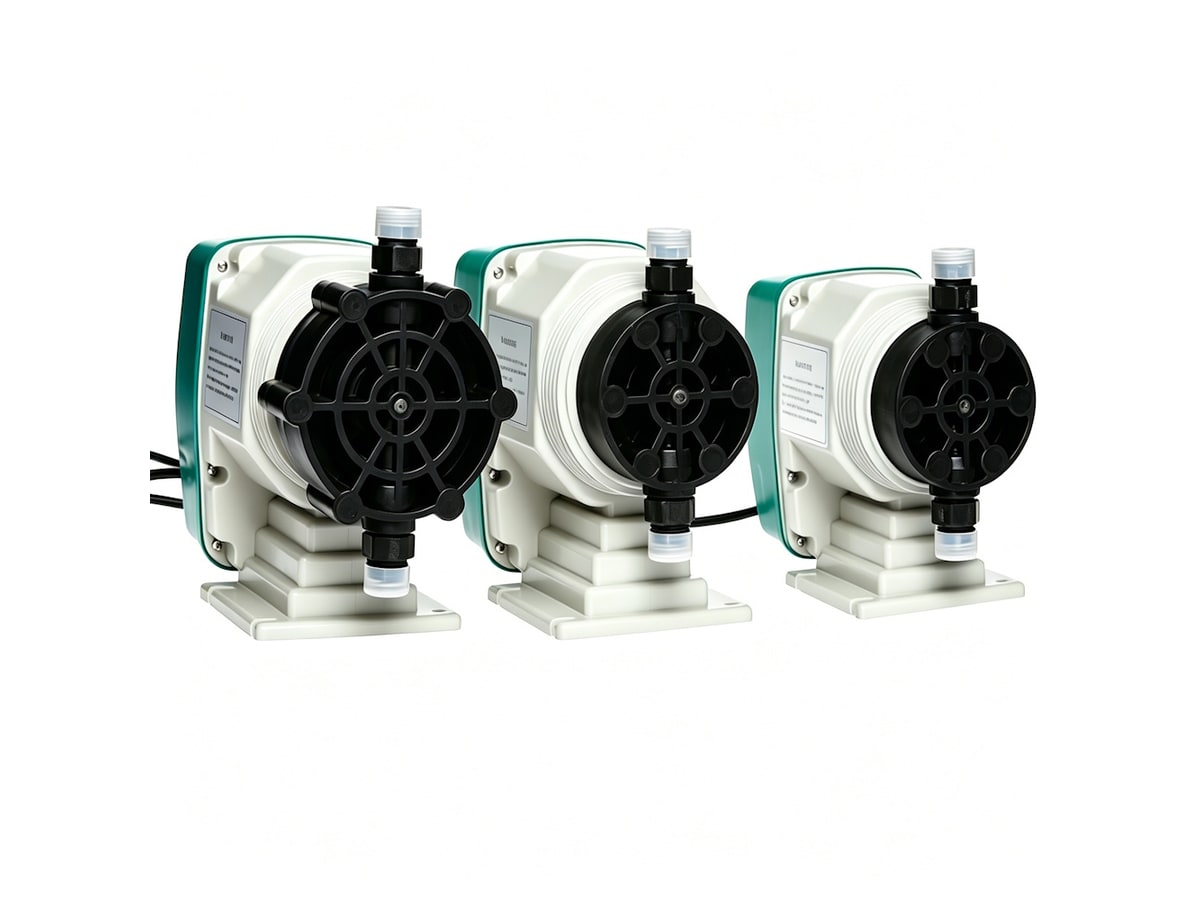

DP Series Solenoid Diaphragm Metering Pump
Pulse-signal external-control solenoid diaphragm pump with frequency division/multiplication proportional dosing, level-switch input and digital frequency display.
Max flow
2 - 55 L/h
Max pressure
0.1 - 16 Bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
220V 50Hz
Features

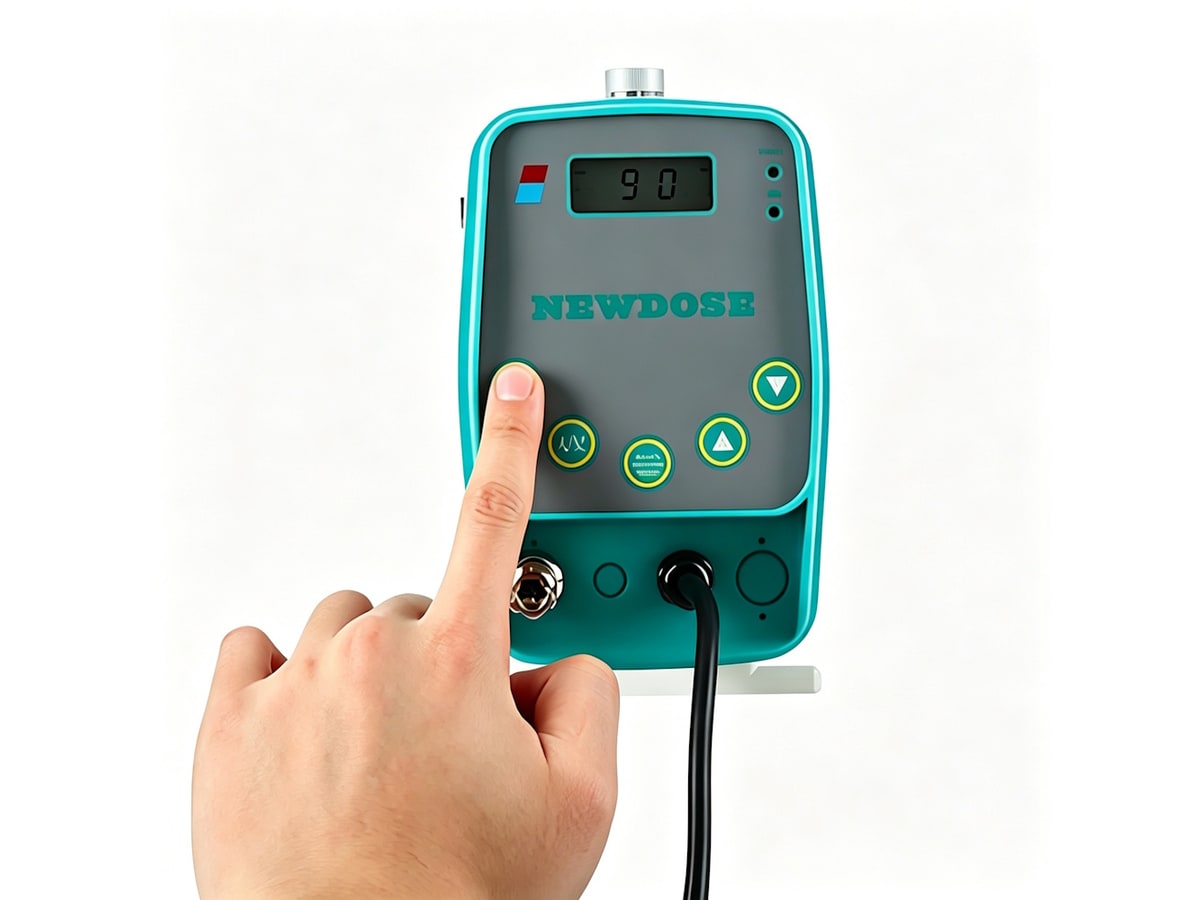

- Manual up/down keypad control
- Remote digital pulse signal control
- Frequency division and multiplication modes
- Digital operating-frequency display
- Level switch interface
- GX high-flow models available
Specifications
| Flow rate | 2 - 55 L/h |
| Pressure | 0.1 - 16 Bar |
| Stroke frequency | 120 - 240 SPM |
| Control | manual / outside pulse |
| Power supply | 220V 50Hz |
| Power | 30 - 65 W |
Applications
Materials & media
| Head | PP / PVC / PVDF / SS316 / PTFE (selection code PPV/PVT/PVDF/SST/PTFE) |
| Diaphragm | PTFE |
| Valve seat | PTFE / SS316 (depends on head) |
| Ball | SS316 (depends on head) |
| Seal | FKM (optional EPDM / PTFE / AFLAS) |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Manual | Standard |
| External pulse | Standard |
Models & specs
| Model | Flow | Pressure | SPM | Power | Weight | Install size | |
| DP-02-07-LM | 2 L/h | 7 Bar | — | 40 W | 3.2 kg | B | |
| DP-03-07-LM | 3 L/h | 7 Bar | — | 40 W | 3.2 kg | B | |
| DP-05-05-LM | 5 L/h | 5 Bar | — | 40 W | 3.2 kg | B | |
| DP-09-03-LM | 9 L/h | 3 Bar | — | 40 W | 3.2 kg | B | |
| DP-02-16-X | 2 L/h | 16 Bar | — | 65 W | 3.8 kg | C | |
| DP-06-07-X | 6 L/h | 7 Bar | — | 65 W | 3.8 kg | C | |
| DP-09-07-X | 9 L/h | 7 Bar | — | 65 W | 3.8 kg | C | |
| DP-12-07-X | 12 L/h | 7 Bar | — | 65 W | 3.8 kg | C | |
| DP-15-03-X | 15 L/h | 3 Bar | — | 65 W | 3.8 kg | C | |
| DP-20-03-X | 20 L/h | 3 Bar | — | 65 W | 3.8 kg | C | |
| DP-30-03-X | 30 L/h | 3 Bar | — | 65 W | 3.8 kg | D | |
| DP-50-02-X | 50 L/h | 2 Bar | — | 65 W | 3.8 kg | D | |
| DP-08-16-GX | 8 L/h | 16 Bar | 200 | 60 W | 3.8 kg | C | |
| DP-23-05-GX | 23 L/h | 5 Bar | 200 | 60 W | 3.8 kg | C | |
| DP-33-03-GX | 33 L/h | 3 Bar | 200 | 60 W | 3.8 kg | C | |
| DP-55-0.1-GX | 55 L/h | 0.1 Bar | 240 | 60 W | 3.8 kg | C |

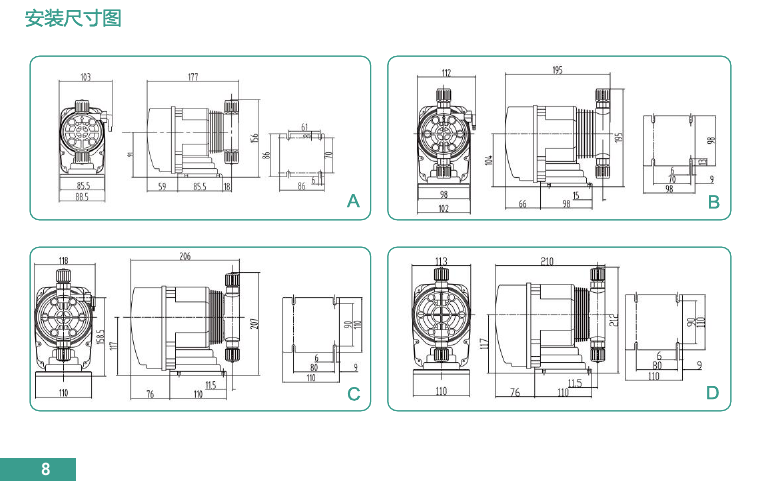

Dimensions & installation
installation dimensions as solenoid pump A/B/C/D for (see selection dimensions).
Downloads
