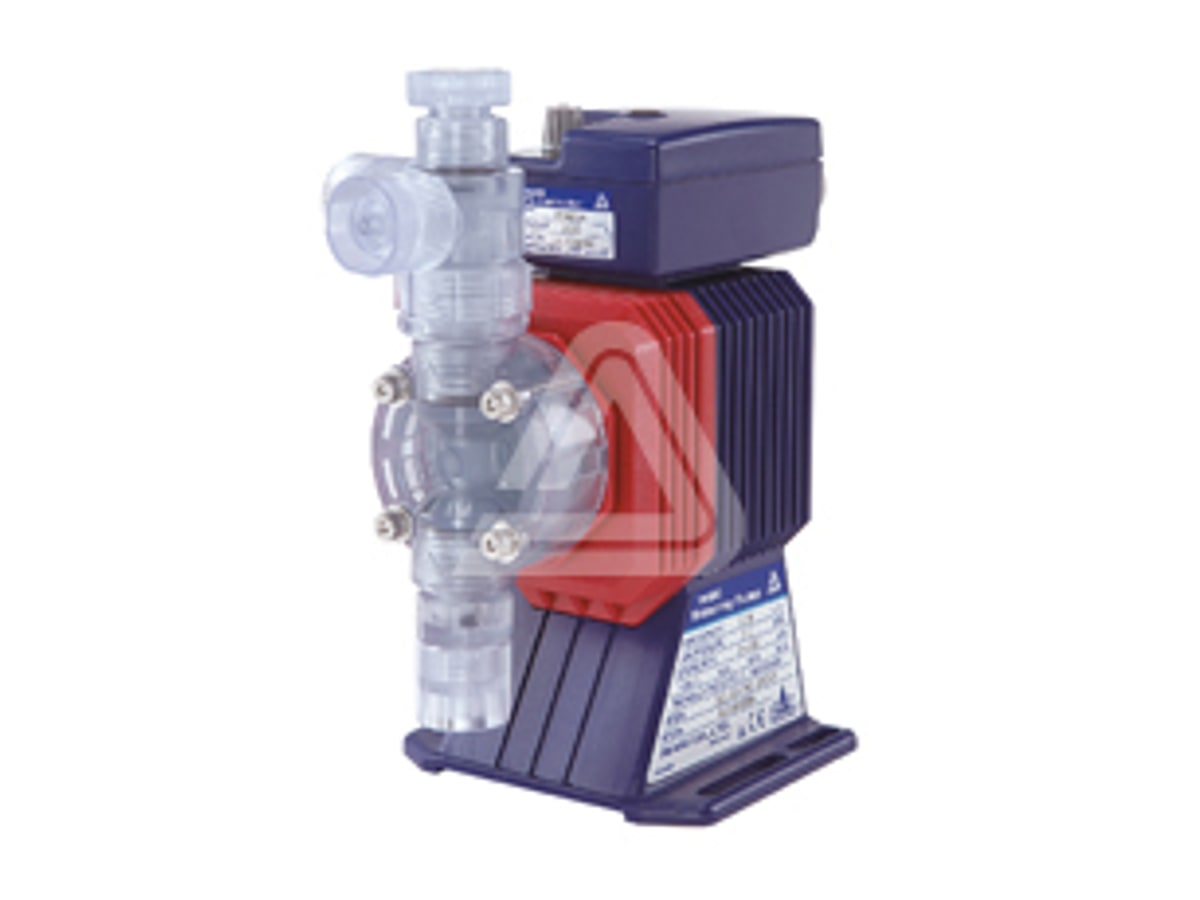

Iwaki ES Solenoid Metering Pump

Name: Iwaki ES Solenoid Metering Pump
Brand: IWAKI

ES series. Max 420 mL/min, 1.0 MPa, PVC/GFRPP, liquid PVC 0–40°C / GFRPP 0–60°C.

Max flow

2.28 – 24 L/h（38–400 mL/min）

Max pressure

1.0 MPa

Turndown / accuracy

—

Wetted materials

PVC / GFRPP

Protection

—

Power

AC220–240V single-phase 50Hz

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Solenoid Diaphragm Pumps). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

Max 420 mL/min
Max 1.0 MPa
PVC, GFRPP
Temp depends on material

Specifications

Max flow	2.28 – 24 L/h（38–400 mL/min）
Max pressure	1.0 MPa
Materials	PVC / GFRPP
Liquid temp	PVC 0–40°C；GFRPP 0–60°C
Brand	Iwaki
Max pressure	0.2 – 1.0 MPa
Stroke rate	0 – 360 spm
Power supply	AC220–240V single-phase 50Hz

Applications

Municipal water

Industrial wastewater

Chemical dosing

Materials & media

Materials

PVC / GFRPP

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Control options are listed in notes or confirmed on inquiry.

Models & specs

Model	Flow	Pressure	Notes
ES-B11	2.28 L/h	1.0 MPa	38 mL/min
ES-B16	3.9 L/h	0.7 MPa	65 mL/min
ES-B21	5.7 L/h	0.4 MPa	95 mL/min
ES-B31	12 L/h	0.2 MPa	200 mL/min
ES-C16	4.8 L/h	1.0 MPa	80 mL/min
ES-C21	7.8 L/h	0.7 MPa	130 mL/min
ES-C31	16.2 L/h	0.35 MPa	270 mL/min
ES-C36	24 L/h	0.2 MPa	400 mL/min
