Solenoid Diaphragm Pumps

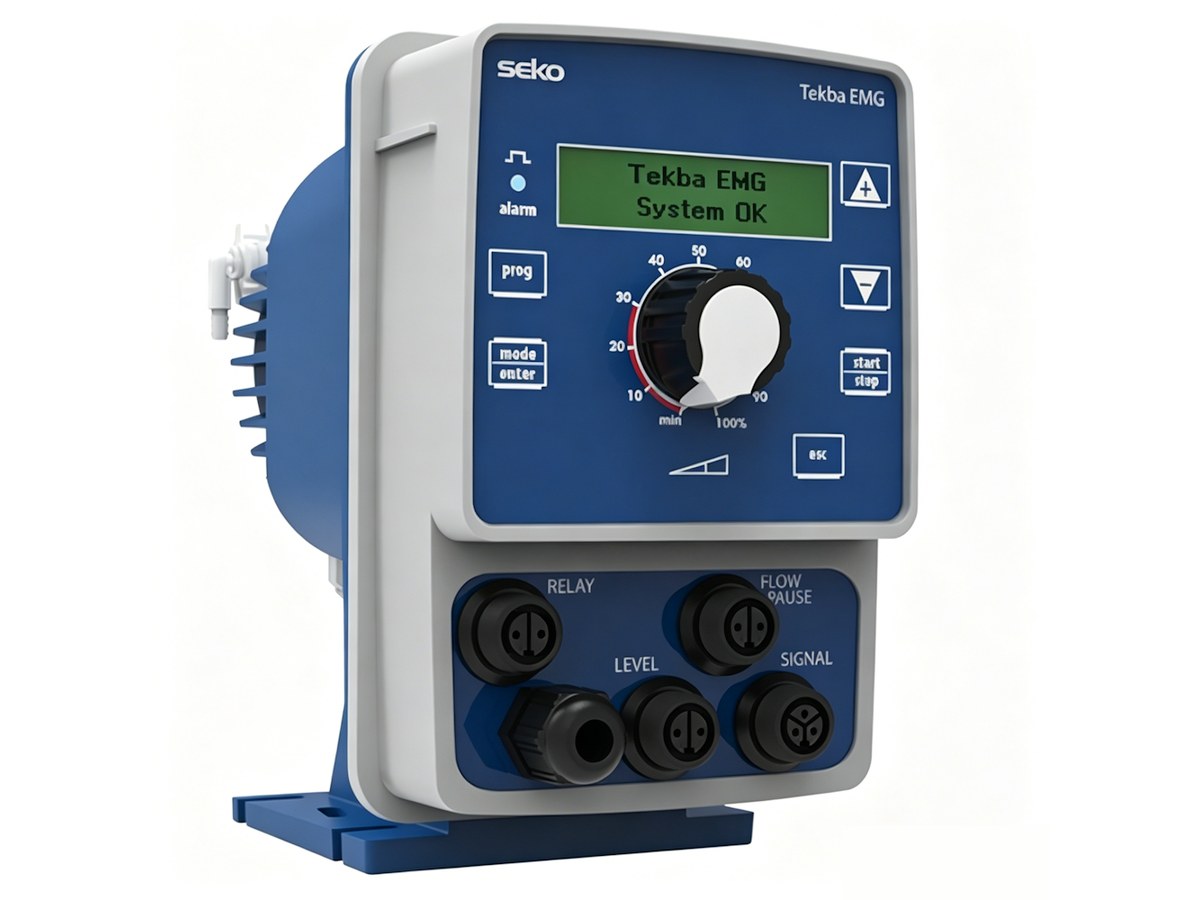

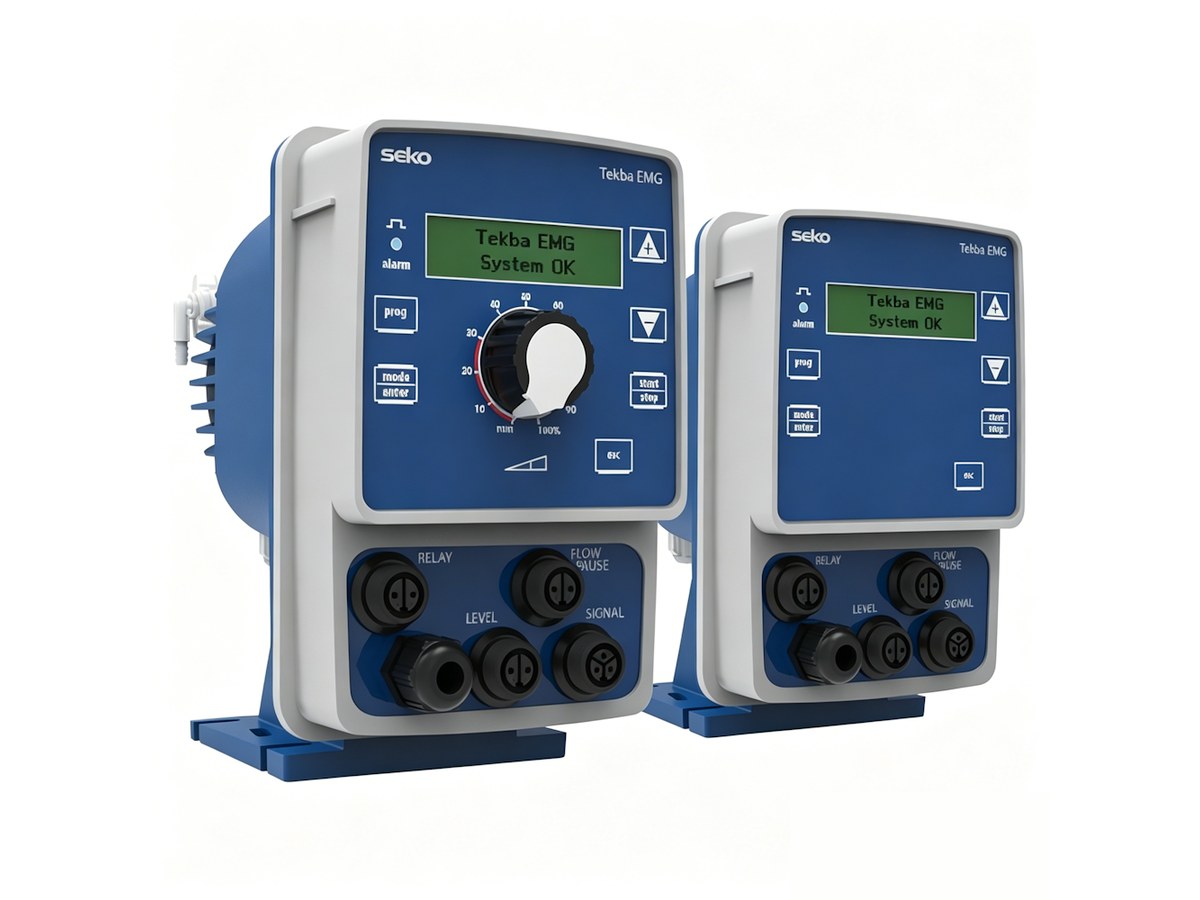

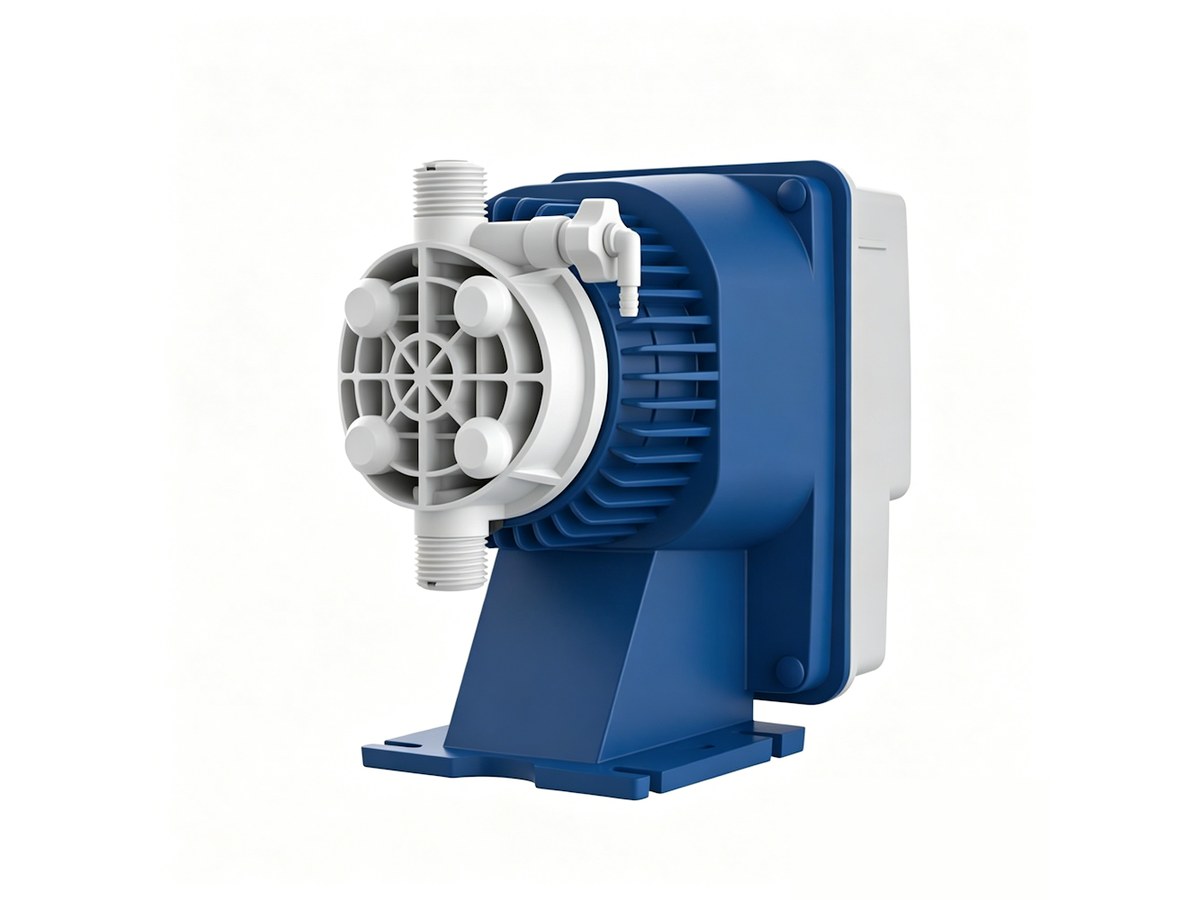

SEKO Tekba Digital Horizontal Solenoid Diaphragm Pump
Microprocessor digital horizontal solenoid diaphragm pump with EMS/EML/EMC/EMM/EMG control variants. Flow 2.5–110 L/h, max 20 bar.
Max flow
2.5 – 110 L/h
Max pressure
20 bar
Turndown / accuracy
—
Wetted materials
PVDF / PTFE / EPDM|FPM|PTFE / ceramic
Protection
—
Power
100–240 Vac, 50/60 Hz
Features
- EMS: manual flow
- EML: manual flow + level probe
- EMC: pulse input auto/manual
- EMM: 4–20 mA auto/manual
- EMG: multifunction PPM/timer/batch; optional RS485 or Wi-Fi
- Wide-range 100–240 Vac; patented solenoid drive algorithm
- PVDF head + 5-year PTFE diaphragm; FPM/EPDM/PTFE seals
Specifications
| Flow | 2.5 – 110 L/h |
| Max pressure | 20 bar |
| Power supply | 100–240 Vac, 50/60 Hz |
| Wetted parts | PVDF / PTFE / EPDM|FPM|PTFE / ceramic |
| Mounting | type base mounting |
| Brand | SEKO |
Applications
Materials & media
| Wetted parts | PVDF / PTFE / EPDM|FPM|PTFE / ceramic |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | SPM | Power | Weight | Tube | Notes | |
| 600 | 2.5–7 L/h | 8–20 bar | 120 | 20 W | 3.9 kg | 4/6 · 4/7 | duty point: 20bar/2.5L/h; 18/3; 14/4.2; 8/7 | |
| 603 | 4–8 L/h | 2–12 bar | 160 | 20 W | 3.4 kg | 4/6 | duty point: 12bar/4L/h; 10/5; 8/6; 2/8 | |
| 800 | 7–18 L/h | 1–16 bar | 300 | 40 W | 4.4 kg | 4/6 | duty point: 16bar/7L/h; 10/10; 5/15; 1/18 | |
| 803 | 20–110 L/h | 0.1–5 bar | 300 | 40 W | 4.4 kg | 8/12 | duty point: 5bar/20L/h; 4/32; 2/62; 0.1/110 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
