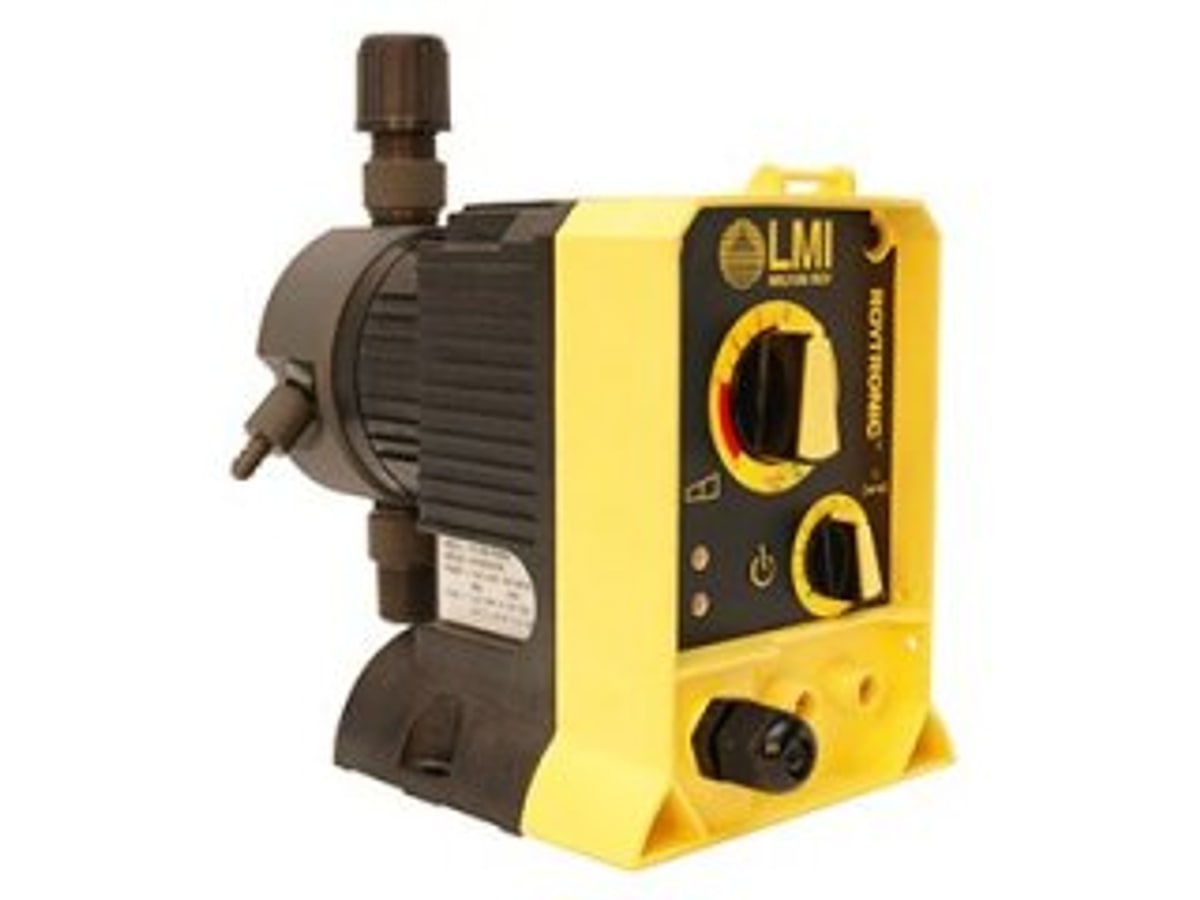

Milton Roy LMI P+ Series Solenoid Metering Pump
LMI P+ Series solenoid metering pumps: max 15.1 L/h, max 17.2 bar; stroke speed 1–240 spm and stroke length 30–100%; FastPrime/AutoPrime liquid ends; optional 4–20 mA / pulse remote control.
Max flow
max. 15.1 L/h (output code 9 FastPrime)
Max pressure
max. 17.2 bar (250 psi, output code 1/4)
Turndown / accuracy
—
Wetted materials
—
Protection
outside connection IP68; optional 4–20 mA / pulse / remote switch
Power
—
Features
- Max flow 15.1 L/h; max pressure 17.2 bar
- Max fluid temperature 50°C
- Stroke speed 1–240 spm; stroke length 30–100%; adjustable while running or stopped
- Thick-wall reinforced polyarylamide drive housing
- FastPrime liquid ends with bleed; optional single- or double-ball check valves
- IP68 external connectors; optional 4–20 mA / pulse and remote on/off
- P+7 / P+8 optional low-level float switch and indicator
Specifications
| Flow | max. 15.1 L/h (output code 9 FastPrime) |
| Max pressure | max. 17.2 bar (250 psi, output code 1/4) |
| Fluid temperature | max. 50 °C |
| Stroke speed | 1–240 spm (depends on output code) |
| Stroke length | 30–100% |
| Drive | solenoid drive diaphragm |
| Liquid ends | FastPrime / AutoPrime; PVC, PVDF, PP, acrylic head; ceramic or PTFE valve ball |
| Enclosure / I/O | outside connection IP68; optional 4–20 mA / pulse / remote switch |
| Brand | m LMI / Milton Roy LMI |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Enclosure / I/O | outside connection IP68; optional 4–20 mA / pulse / remote switch |
Models & specs
| Model | Flow | Pressure | Notes | |
| P+X1 FastPrime | 0.01–0.9 L/h | 17.2 bar(250 psi) | AutoPrime approx. 0.005–0.5 L/h @ 7.6 bar; 120 SPM | |
| P+X4 FastPrime | 0.02–1.9 L/h | 17.2 bar(250 psi) | AutoPrime approx. 0.01–0.9 L/h @ 7.6 bar; 240 SPM | |
| P+X5 FastPrime | 0.04–3.8 L/h | 7.6 bar(110 psi) | AutoPrime approx. 0.02–2.8 L/h @ 7.6 bar | |
| P+X6 FastPrime | 0.08–7.6 L/h | 3.4 bar(50 psi) | AutoPrime approx. 0.06–6.4 L/h @ 3.4 bar | |
| P+X8 FastPrime | 0.12–12.1 L/h | 1.5 bar(22 psi) | 240 SPM | |
| P+X9 FastPrime | 0.15–15.1 L/h | 1.0 bar(15 psi) | series max flow point; 240 SPM |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
