Solenoid Diaphragm Pumps

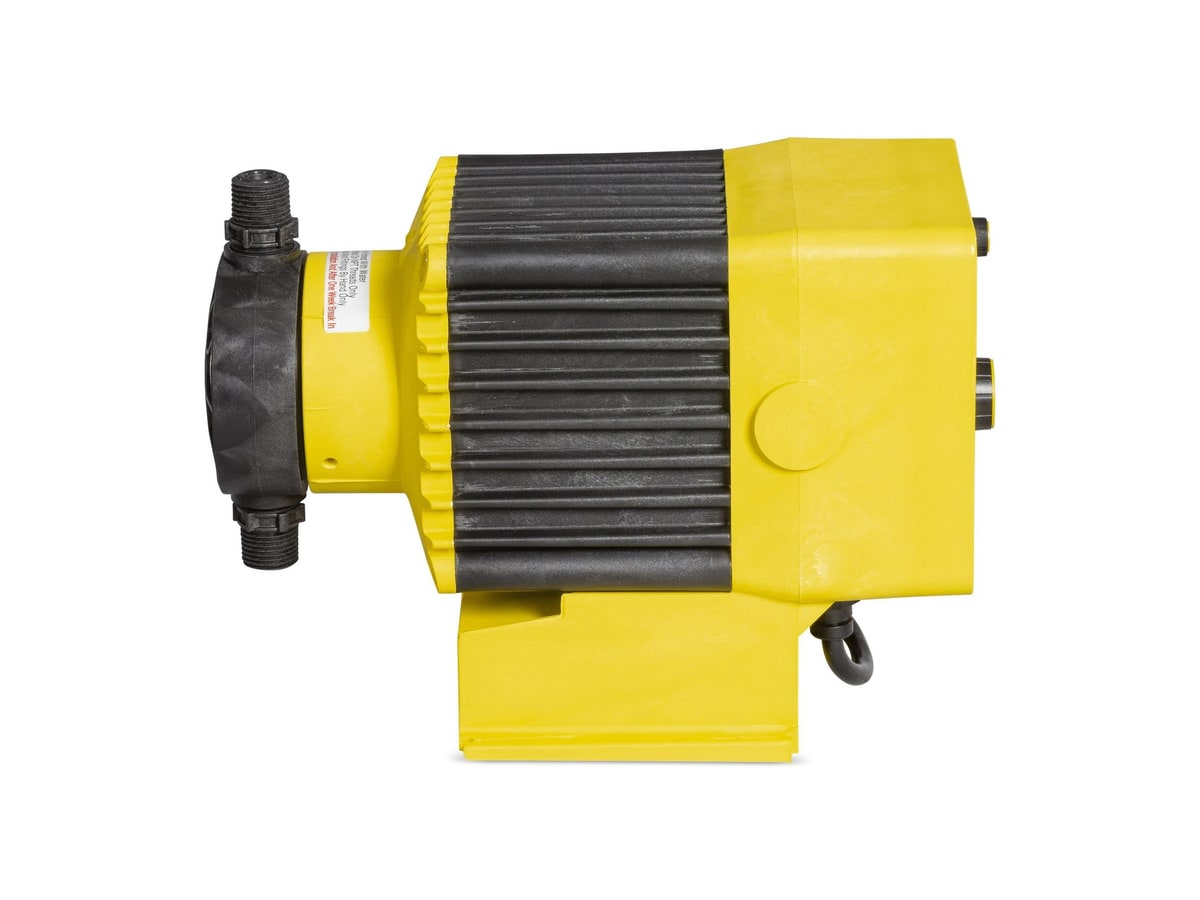

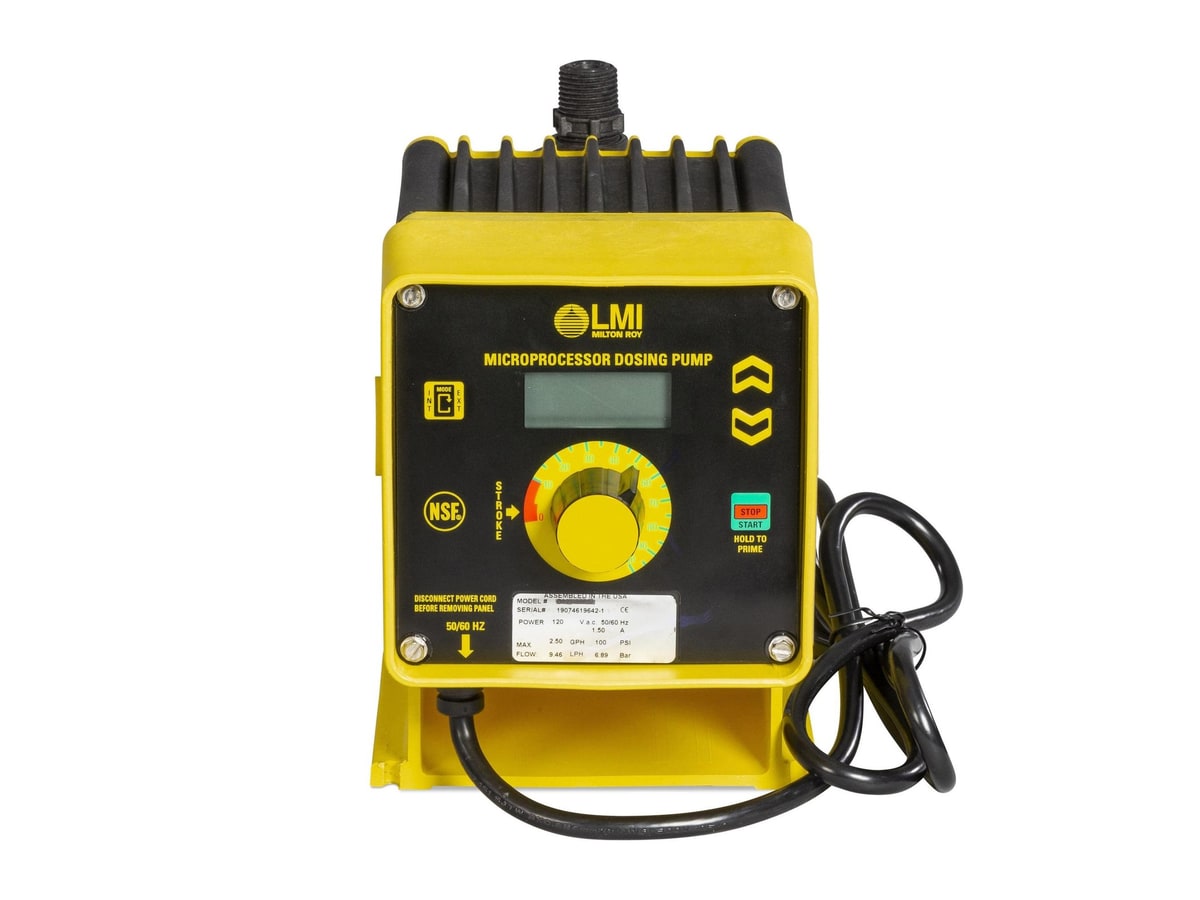

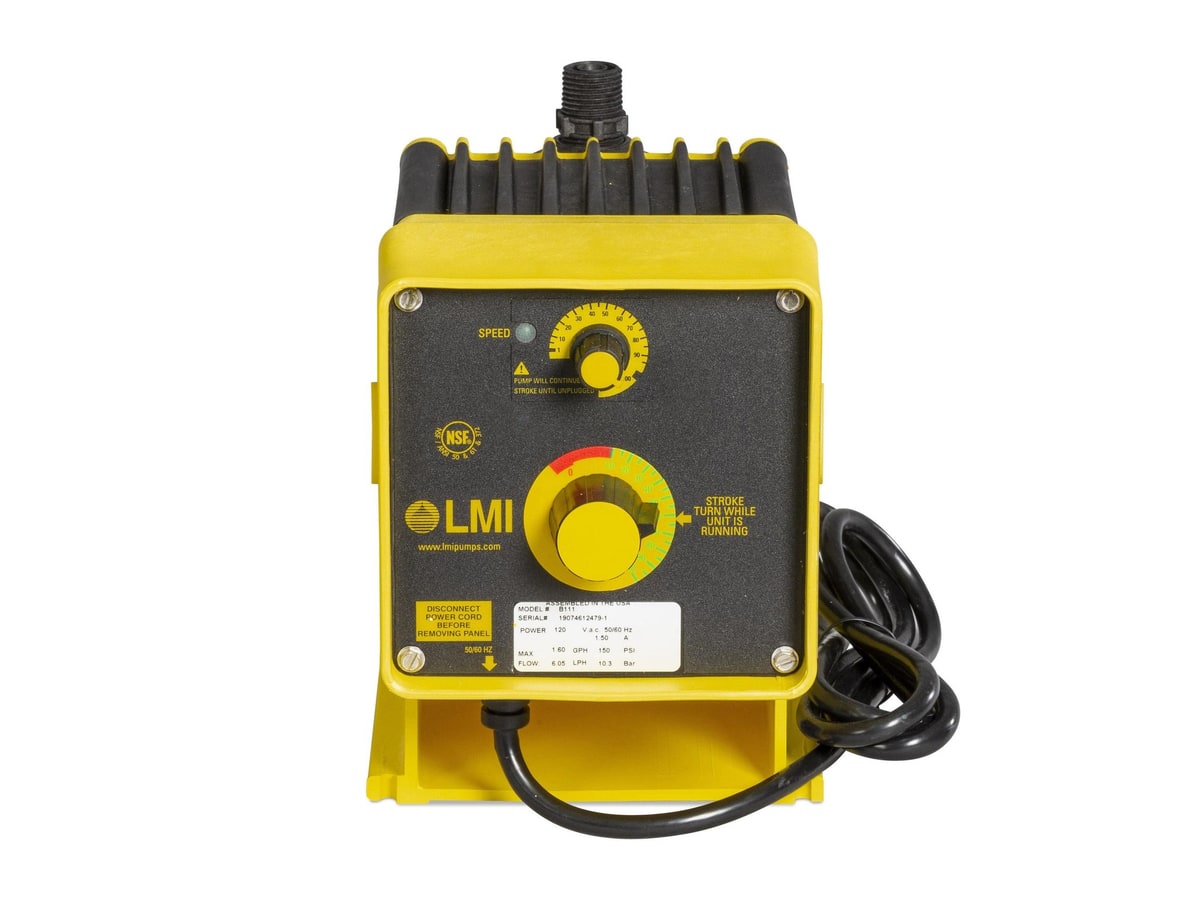

Milton Roy LMI B Series Metering Pump
LMI B Series solenoid-driven diaphragm metering pumps: flow up to 17 L/h, pressure up to 10 bar; manual/auto speed control, stroke adjustable while running, ±2% steady-state accuracy (10–100% flow).
Max flow
up to 17 L/h (; inside B-13/73/93 max. 17 L/h)
Max pressure
up to 10 bar (; inside max. 10 kg/cm²)
Turndown / accuracy
±2% (10–100% flow range)
Wetted materials
—
Protection
—
Power
AC 230V 50Hz single-phase; power consumption approx. 75 W; "9" series can automatic control (e.g. 4–20 mA)
Features
- Flow up to 17 L/h; pressure up to 10 bar
- Solenoid-driven mechanical diaphragm; fewer moving parts
- Manual/auto speed control; stroke adjustable while running
- PTFE-faced Hypalon composite diaphragm
- 0–100% capacity adjustability running or stopped
- ±2% steady-state accuracy (10–100% of rated flow); max suction lift 1.5 mWC
- “9” series for automatic control (e.g. 4–20 mA)
Specifications
| Flow | up to 17 L/h (; inside B-13/73/93 max. 17 L/h) |
| Max pressure | up to 10 bar (; inside max. 10 kg/cm²) |
| Drive | solenoid drive mechanical diaphragm |
| Accuracy | ±2% (10–100% flow range) |
| Max suction lift | 1.5 m water column |
| Power | AC 230V 50Hz single-phase; power consumption approx. 75 W; "9" series can automatic control (e.g. 4–20 mA) |
| Liquid ends | PP / PVC / PVDF; valve ball ceramic; diaphragm TEFLON FACED HYPALON |
| Weight | plastic liquid end approx. 5.5 kg |
| Brand | m LMI / Milton Roy LMI |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Power | AC 230V 50Hz single-phase; power consumption approx. 75 W; "9" series can automatic control (e.g. 4–20 mA) |
Models & specs
| Model | Flow | Pressure | Notes | |
| B-11 / B-71 / B-91 | 0.06–6 L/h | 10 kg/cm² | connection 3/8"×1/4" | |
| B-12 / B-72 / B-92 | 0.095–9.5 L/h | 7 kg/cm² | connection 3/8"×1/4" | |
| B-13 / B-73 / B-93 | 0.17–17 L/h | 3.5 kg/cm² | connection 1/2"×3/8"; series max flow point |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
