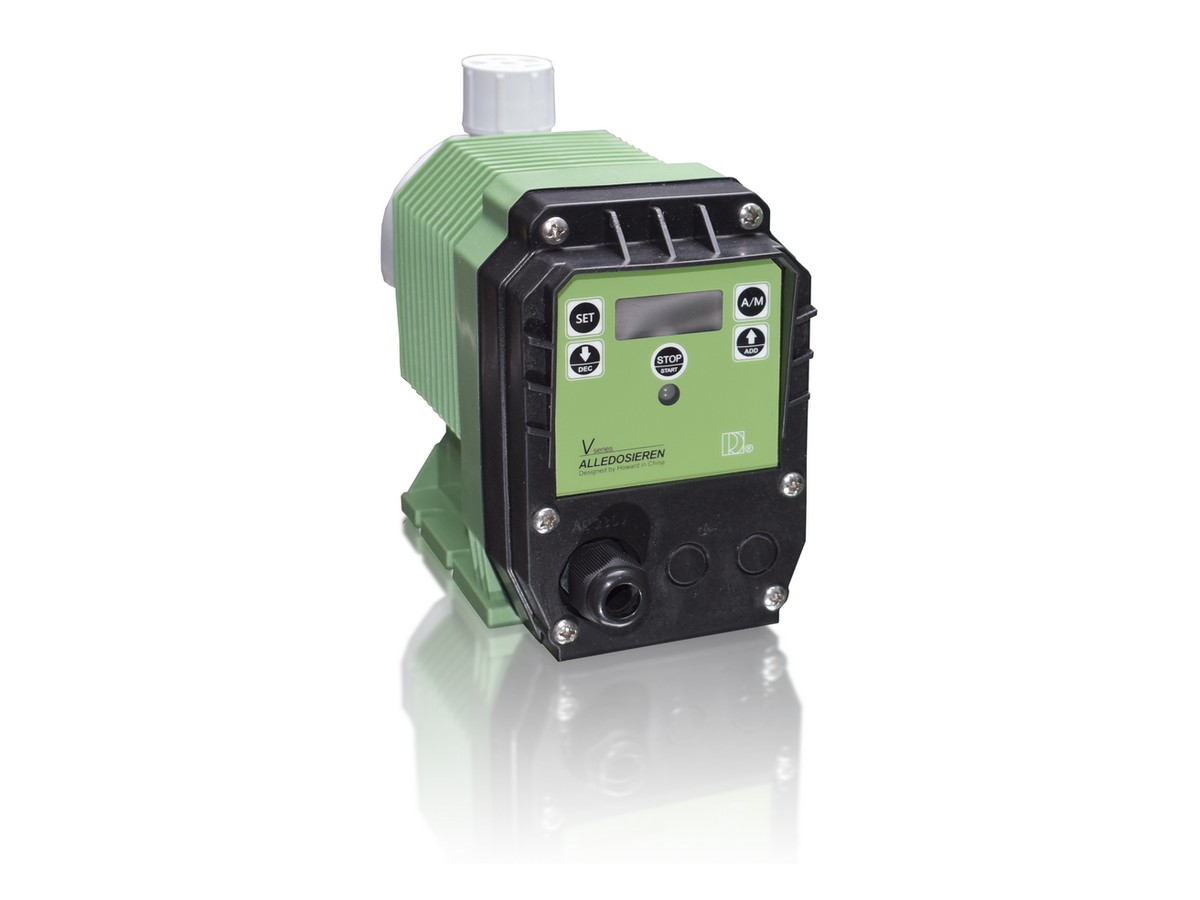

Aldose V Series Solenoid Diaphragm Metering Pump

Chongqing Aldose V solenoid diaphragm pump. Flow ~0.48–20 L/h, pressure ~1.0–8.2 bar; LCD stroke display, timer, optional pulse/4–20 mA.

Max flow

0.48 – 20 L/h

Max pressure

1.0 – 8.2 bar

Turndown / accuracy

—

Wetted materials

—

Protection

—

Power

AC220 / AC110 / DC24

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Solenoid Diaphragm Pumps). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

Solenoid diaphragm; LCD stroke rate
Cycle/countdown timer
Optional start/stop, level, pulse, 4–20 mA
PP/PVC/PTFE/SUS304 heads; PTFE diaphragm
13 flow codes 00508–20001; ~30 W
Approx. 173×83×138 mm

Specifications

Flow range	0.48 – 20 L/h
Pressure	1.0 – 8.2 bar
Stroke rate	90 – 180 r/min
Suction lift	1.2 – 1.5 m
Power	approx. 30 W
Weight	approx. 2.9 kg
Power supply	AC220 / AC110 / DC24
Brand	Aldose / ALLDOS / ALLEDOSIEREN

Applications

Water treatment dosing

Industrial chemical dosing

Cooling/boiler chemical feed

Disinfection dosing

Materials & media

Ask for wetted-parts details or check the brochure.

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Control options are listed in notes or confirmed on inquiry.

Models & specs

Model	Flow	Pressure	Notes
V-00508	0.48 L/h	8.2 bar	flow code 00508
V-01008	1.08 L/h	8.2 bar	flow code 01008
V-02008	2.16 L/h	8.2 bar	flow code 02008
V-03008	3.12 L/h	7.6 bar	flow code 03008
V-04006	3.6 L/h	6.8 bar	flow code 04006
V-05006	5.04 L/h	6.2 bar	flow code 05006
V-06005	6.0 L/h	4.8 bar	flow code 06005
V-08004	8.16 L/h	3.8 bar	flow code 08004
V-09003	9.0 L/h	3.5 bar	flow code 09003
V-10004	10.2 L/h	3.2 bar	flow code 10004
V-12003	12.48 L/h	2.8 bar	flow code 12003
V-15002	15.2 L/h	1.8 bar	flow code 15002
V-20001	20.0 L/h	1.0 bar	flow code 20001
