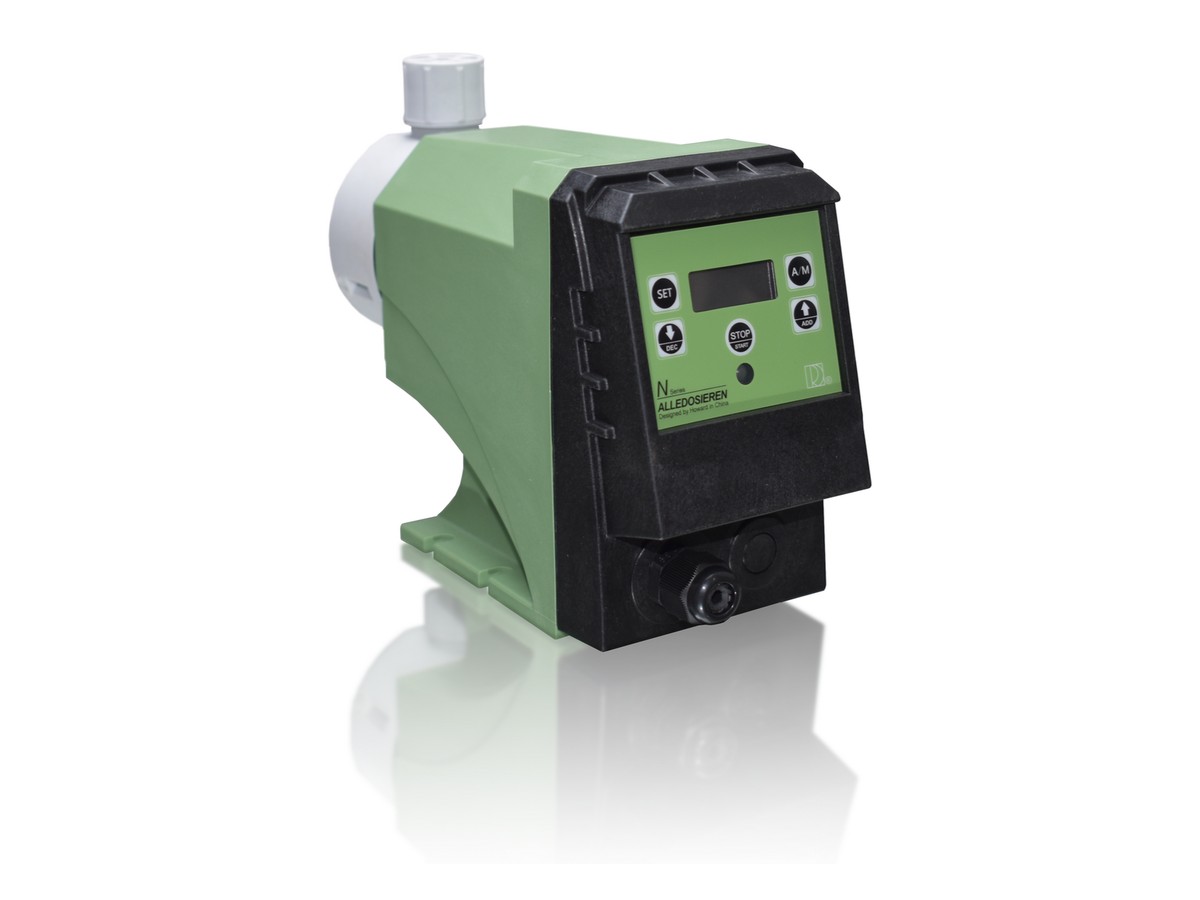

Aldose N Series Solenoid Diaphragm Metering Pump
Chongqing Aldose N solenoid diaphragm pump. Flow ~1.08–19.2 L/h, pressure ~0.8–8.2 bar; LCD flow display, timer, optional pulse/4–20 mA.
Max flow
1.08 – 19.2 L/h
Max pressure
0.8 – 8.2 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
AC220 / AC110 / DC24
Features
- Solenoid diaphragm; LCD flow (L/h)
- Built-in cycle/countdown timer
- Optional start/stop, level, pulse, 4–20 mA
- PP/PVC/PTFE/SUS304 heads; PTFE diaphragm
- Flow codes 01008–20001; ~30 W; ~2.9 kg
- G1/2" ports; 4×6 mm tubing
Specifications
| Flow range | 1.08 – 19.2 L/h |
| Pressure | 0.8 – 8.2 bar |
| Stroke rate | 120 – 200 r/min |
| Suction lift | 1.2 – 1.5 m |
| Power | approx. 30 W |
| Weight | approx. 2.9 kg |
| Power supply | AC220 / AC110 / DC24 |
| Brand | Aldose / ALLDOS / ALLEDOSIEREN |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Notes | |
| N-01008 | 1.08 L/h | 8.2 bar | flow code 01008 | |
| N-03008 | 3.6 L/h | 7.8 bar | flow code 03008 | |
| N-07005 | 7.2 L/h | 4.8 bar | flow code 07005 | |
| N-10004 | 9.6 L/h | 4.0 bar | flow code 10004 | |
| N-15003 | 14.4 L/h | 2.5 bar | flow code 15003 | |
| N-20001 | 19.2 L/h | 0.8 bar | flow code 20001 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
