Solenoid Diaphragm Pumps

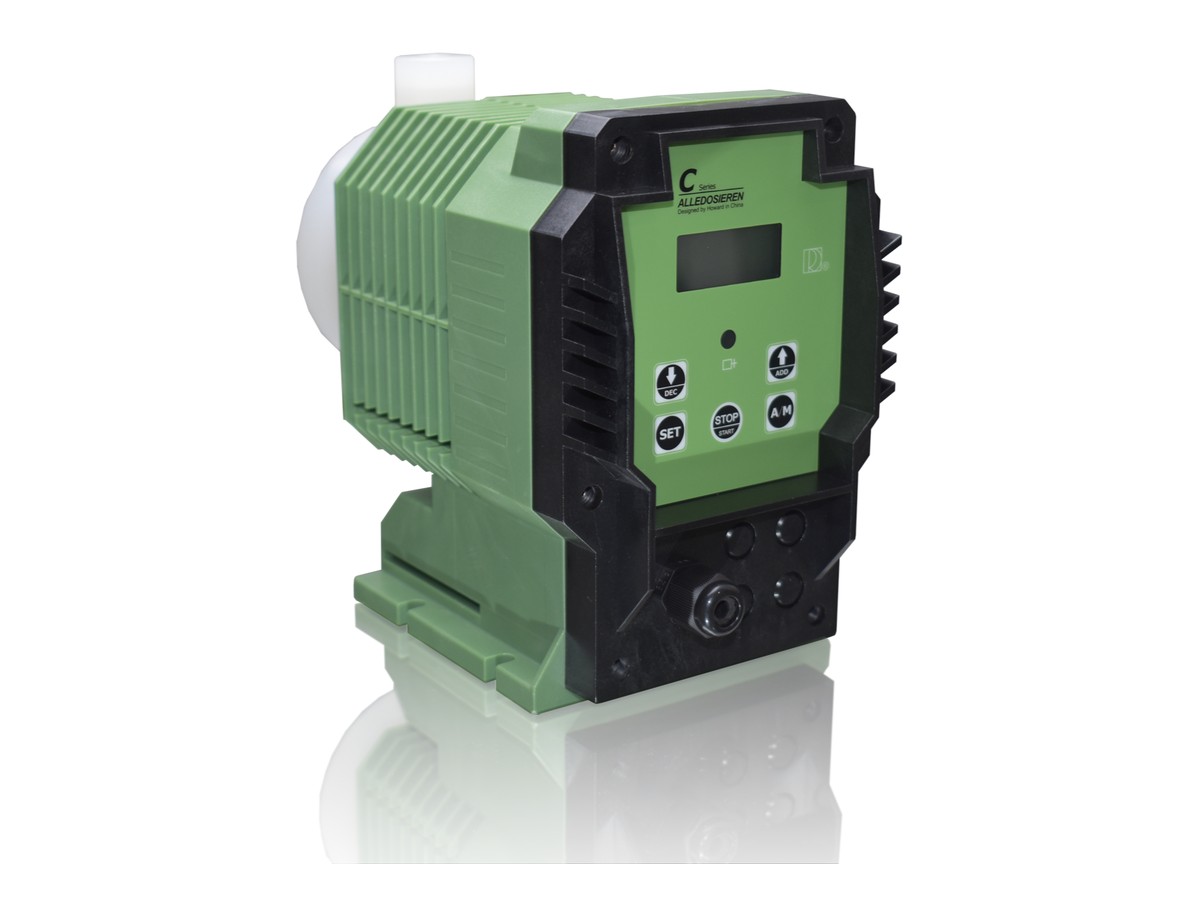

Aldose C Series Solenoid Diaphragm Metering Pump
Chongqing Aldose C solenoid diaphragm pump. Flow ~1.08–31.2 L/h, up to ~22.7 bar; timer/pulse/4–20 mA, optional RS485 Modbus-RTU.
Max flow
1.08 – 31.2 L/h
Max pressure
1.8 – 22.7 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
AC220 / AC110 / DC24
Features
- Solenoid diaphragm; LCD stroke display
- Timer; optional start/stop, level, pulse, 4–20 mA
- Optional RS485 Modbus-RTU
- High pressure up to ~22.7 bar (01023)
- ~55 W; ~4.6 kg
- Machined PP/PVC/PTFE/SUS304 heads
Specifications
| Flow range | 1.08 – 31.2 L/h |
| Pressure | 1.8 – 22.7 bar |
| Stroke rate | 90 – 160 r/min |
| Suction lift | 1.2 – 1.5 m |
| Power | approx. 55 W |
| Weight | approx. 4.6 kg |
| Comm | optional RS485 Modbus-RTU |
| Power supply | AC220 / AC110 / DC24 |
| Brand | Aldose / ALLDOS / ALLEDOSIEREN |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Comm | optional RS485 Modbus-RTU |
Models & specs
| Model | Flow | Pressure | Notes | |
| C-01023 | 1.08 L/h | 22.7 bar | flow code 01023 | |
| C-02018 | 2.16 L/h | 17.3 bar | flow code 02018 | |
| C-04015 | 4.2 L/h | 14.1 bar | flow code 04015 | |
| C-06011 | 6.8 L/h | 11.3 bar | flow code 06011 | |
| C-09009 | 9.0 L/h | 8.5 bar | flow code 09009 | |
| C-12007 | 12.48 L/h | 6.8 bar | flow code 12007 | |
| C-16005 | 16.8 L/h | 4.2 bar | flow code 16005 | |
| C-20003 | 21.6 L/h | 3.5 bar | flow code 20003 | |
| C-26003 | 26.5 L/h | 2.5 bar | flow code 26003 | |
| C-30002 | 31.2 L/h | 1.8 bar | flow code 30002 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
