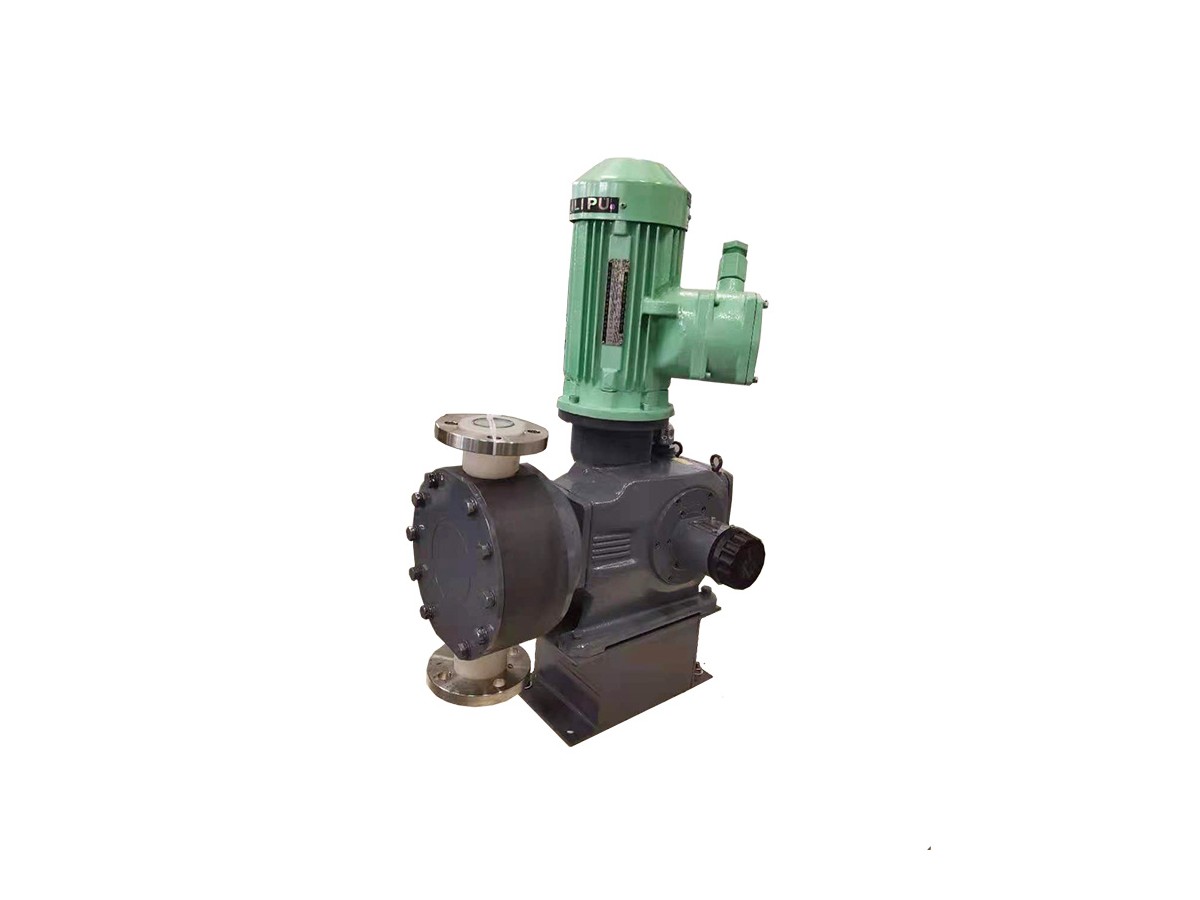

Ailipu JZM-D Mechanical Diaphragm Metering Pump

Name: Ailipu JZM-D Mechanical Diaphragm Metering Pump
Brand: Ailipu

JZM-D (JZMD) mechanical diaphragm. Flow ~600–1800 L/h, ~0.25–0.7 MPa.

Max flow

600 – 1800 L/h

Max pressure

0.25 – 0.7 MPa

Turndown / accuracy

rated accuracy ±1%

Wetted materials

—

Protection

—

Power

—

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Mechanical Diaphragm Pumps). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

Large diaphragm φ200/130
Dual pressure options
High-flow dosing
Suction ≤3 m

Specifications

Type	mechanical diaphragm metering pump
Flow range	600 – 1800 L/h
Pressure range	0.25 – 0.7 MPa
Diaphragm	φ200/130 mm
Accuracy	rated accuracy ±1%
Suction lift	≤3 m water column
Motor	approx. 0.75–1.5 kW
Weight	approx. 80–100 kg
Brand	Ailipu

Applications

Municipal water

Industrial wastewater

Chemical dosing

Environmental engineering

Pharma & paper

Materials & media

Diaphragm

φ200/130 mm

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Control options are listed in notes or confirmed on inquiry.

Models & specs

Model	Flow	Pressure	Power	Notes
JZMD-600/0.7	600 L/h	0.7 MPa	1.1 kW	stroke 11.5 mm; speed 72 min⁻¹; diaphragm φ200/130; connection DN25; power 1.1 kW; approx. 80–100 kg
JZMD-600/0.5	600 L/h	0.5 MPa	0.75 kW	stroke 11.5 mm; speed 72 min⁻¹; diaphragm φ200/130; connection DN25; power 0.75 kW; approx. 80–100 kg
JZMD-650/0.6	650 L/h	0.6 MPa	1.1 kW	stroke 12.5 mm; speed 72 min⁻¹; diaphragm φ200/130; connection DN25; power 1.1 kW; approx. 80–100 kg
JZMD-650/0.4	650 L/h	0.4 MPa	0.75 kW	stroke 12.5 mm; speed 72 min⁻¹; diaphragm φ200/130; connection DN25; power 0.75 kW; approx. 80–100 kg
JZMD-750/0.5	750 L/h	0.5 MPa	1.1 kW	stroke 14 mm; speed 72 min⁻¹; diaphragm φ200/130; connection DN25; power 1.1 kW; approx. 80–100 kg
JZMD-750/0.35	750 L/h	0.35 MPa	0.75 kW	stroke 14 mm; speed 72 min⁻¹; diaphragm φ200/130; connection DN25; power 0.75 kW; approx. 80–100 kg
JZMD-800/0.5	800 L/h	0.5 MPa	1.1 kW	stroke 11.5 mm; speed 96 min⁻¹; diaphragm φ200/130; connection DN40; power 1.1 kW; approx. 80–100 kg
JZMD-800/0.35	800 L/h	0.35 MPa	0.75 kW	stroke 11.5 mm; speed 96 min⁻¹; diaphragm φ200/130; connection DN40; power 0.75 kW; approx. 80–100 kg
JZMD-850/0.5	850 L/h	0.5 MPa	1.1 kW	stroke 12.5 mm; speed 96 min⁻¹; diaphragm φ200/130; connection DN40; power 1.1 kW; approx. 80–100 kg
JZMD-850/0.3	850 L/h	0.3 MPa	0.75 kW	stroke 12.5 mm; speed 96 min⁻¹; diaphragm φ200/130; connection DN40; power 0.75 kW; approx. 80–100 kg
JZMD-1000/0.4	1000 L/h	0.4 MPa	1.1 kW	stroke 14 mm; speed 96 min⁻¹; diaphragm φ200/130; connection DN40; power 1.1 kW; approx. 80–100 kg
JZMD-1000/0.25	1000 L/h	0.25 MPa	0.75 kW	stroke 14 mm; speed 96 min⁻¹; diaphragm φ200/130; connection DN40; power 0.75 kW; approx. 80–100 kg
JZMD-1200/0.35	1200 L/h	0.35 MPa	1.1 kW	stroke 11.5 mm; speed 140 min⁻¹; diaphragm φ200/130; connection DN40; power 1.1 kW; approx. 80–100 kg
JZMD-1500/0.3	1500 L/h	0.3 MPa	1.1 kW	stroke 14 mm; speed 140 min⁻¹; diaphragm φ200/130; connection DN40; power 1.1 kW; approx. 80–100 kg
JZMD-1800/0.3	1800 L/h	0.3 MPa	1.5 kW	stroke 16.5 mm; speed 140 min⁻¹; diaphragm φ200/130; connection DN40; power 1.5 kW; approx. 80–100 kg
