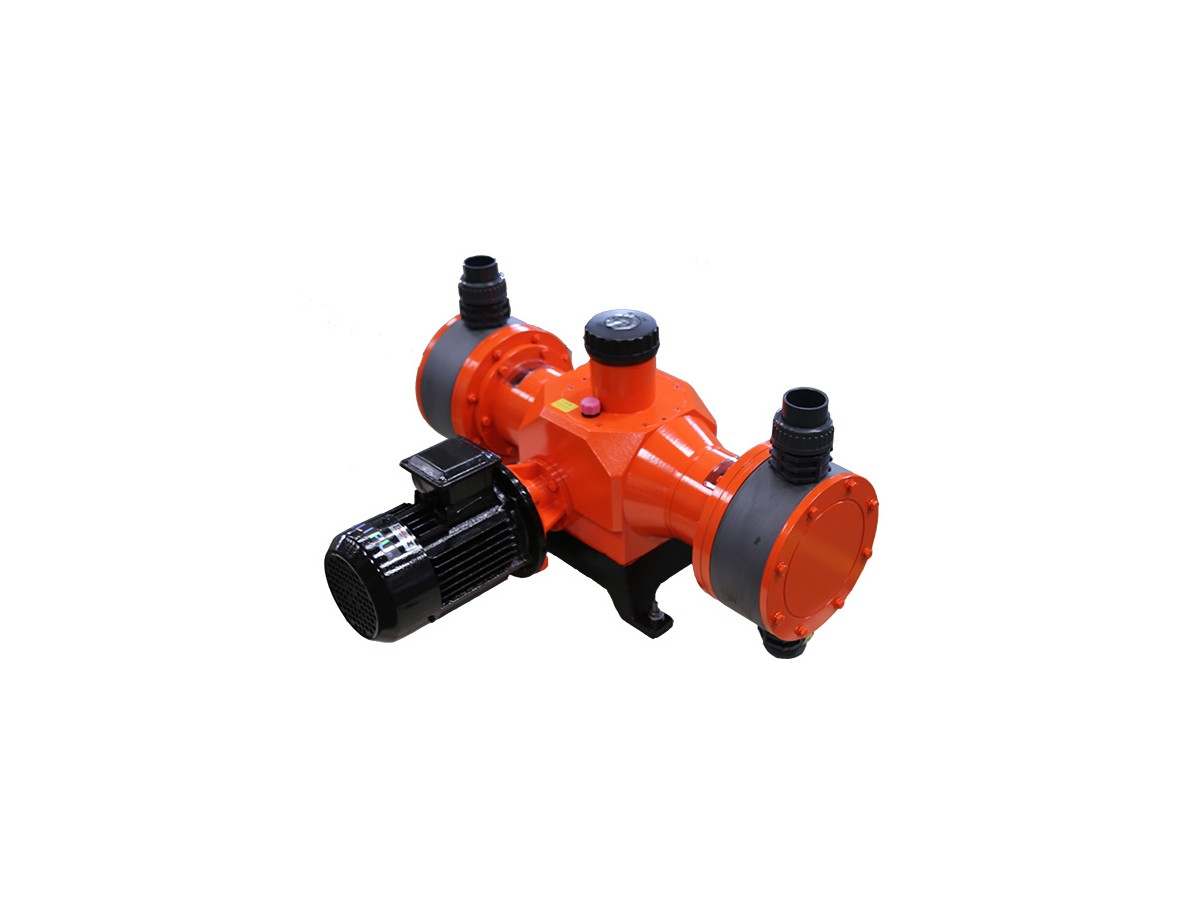

Ailipu JDM-S Mechanical Diaphragm Metering Pump

Name: Ailipu JDM-S Mechanical Diaphragm Metering Pump
Brand: Ailipu

JDM-S high-flow mechanical diaphragm (incl. dual-head 2JDM-S). Flow 2000–6000 L/h at 0.3 MPa.

Max flow

2000 – 6000 L/h

Max pressure

0.3 MPa

Turndown / accuracy

—

Wetted materials

—

Protection

—

Power

—

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Mechanical Diaphragm Pumps). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

Very high flow
Single/dual head
3 m suction
DN40

Specifications

Type	mechanical diaphragm metering pump
Flow range	2000 – 6000 L/h
Pressure range	0.3 MPa
Suction lift	3 m
Connection	DN40 (double head is per head DN40)
Motor	1.1 – 2.2 kW
Weight	approx. 110–270 kg
Brand	Ailipu

Applications

Municipal water

Industrial wastewater

Chemical dosing

Environmental engineering

Pharma & paper

Materials & media

Ask for wetted-parts details or check the brochure.

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Control options are listed in notes or confirmed on inquiry.

Models & specs

Model	Flow	Pressure	Power	Notes
JDM-S2000/0.3	2000 L/h	0.3 MPa	1.1 kW	suction lift 3 m; speed 96 spm; connection DN40; power 1.1 kW; approx. 110 kg
JDM-S3000/0.3	3000 L/h	0.3 MPa	1.1 kW	suction lift 3 m; speed 144 spm; connection DN40; power 1.1 kW; approx. 110 kg
2JDM-S4000/0.3	4000 L/h	0.3 MPa	1.5 kW	suction lift 3 m; speed 96 spm; connection per head DN40; power 1.5 kW; approx. 270 kg
2JDM-S6000/0.3	6000 L/h	0.3 MPa	2.2 kW	suction lift 3 m; speed 144 spm; connection per head DN40; power 2.2 kW; approx. 270 kg
