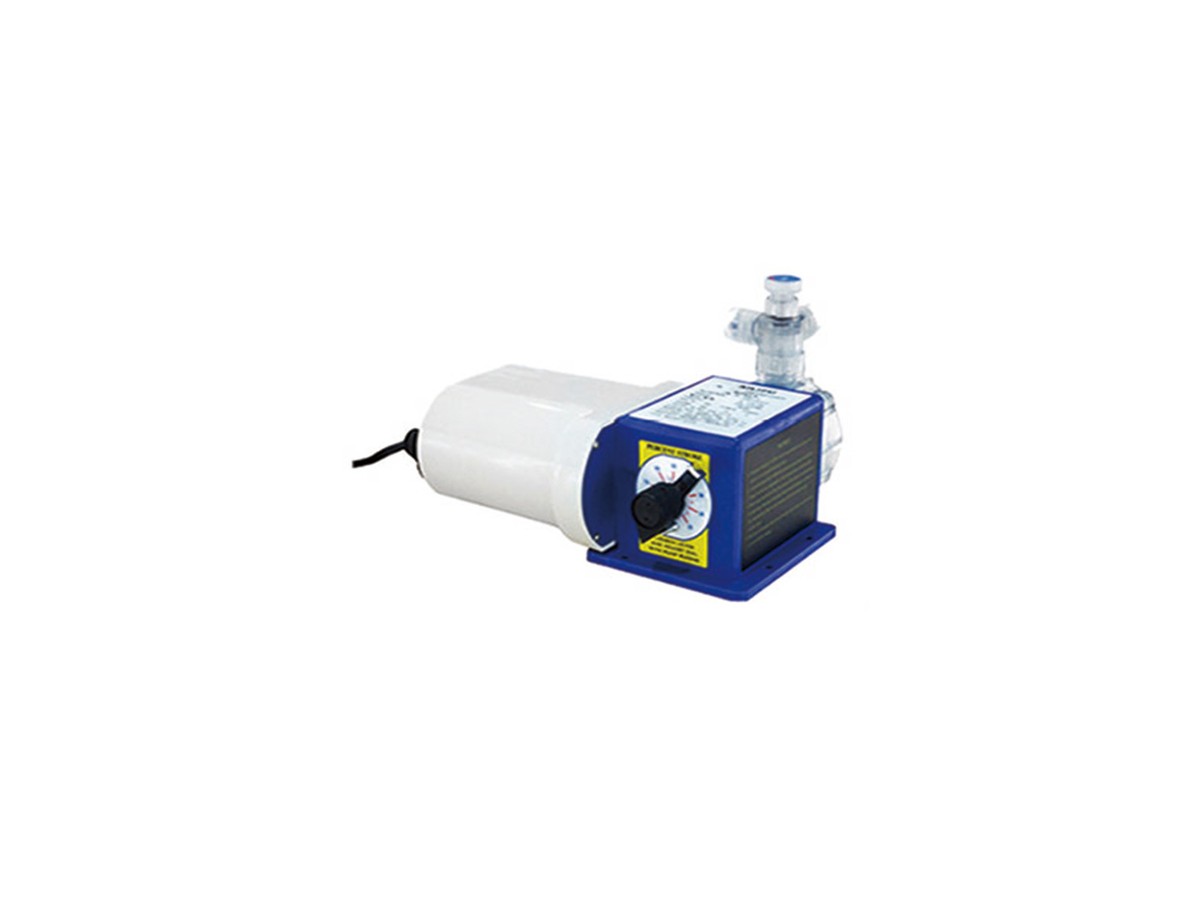

Ailipu JM Mechanical Diaphragm Metering Pump
JM compact mechanical diaphragm. Flow ~0.47–15.77 L/h, ~0.42–0.7 MPa.
Max flow
0.47 – 15.77 L/h
Max pressure
0.42 – 0.7 MPa
Turndown / accuracy
rated accuracy ±1% (stroke 30%–100%)
Wetted materials
PVC / PVDF / PTFE / SS304 / SS316L etc. optional
Protection
—
Power
single-phase 220V or three-phase 380V (depends on model)
Features
- Compact low-flow
- Mechanical diaphragm
- Lab/small dosing
Specifications
| Flow range | 0.47 – 15.77 L/h |
| Max pressure | 0.42 – 0.7 MPa |
| Accuracy | rated accuracy ±1% (stroke 30%–100%) |
| Suction lift | ≤3 m water column (mechanical diaphragm) |
| Liquid temp | 15 – 85 °C (see range) |
| Viscosity | 0.3 – 2000 mm²/s (incl. solids particles) |
| Wetted materials | PVC / PVDF / PTFE / SS304 / SS316L etc. optional |
| Diaphragm | PTFE or rubber composite PTFE |
| Adjustment | 0–100% class; manual / VFD / digital or stroke controller |
| Power supply | single-phase 220V or three-phase 380V (depends on model) |
| Series flow | 0.47 – 15.77 L/h |
| Series pressure | 0.42 – 48 MPa |
| Motor power | approx. 15 W |
| Brand | Ailipu |
Applications
Materials & media
| Wetted materials | PVC / PVDF / PTFE / SS304 / SS316L etc. optional |
| Diaphragm | PTFE or rubber composite PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Adjustment | 0–100% class; manual / VFD / digital or stroke controller |
Models & specs
| Model | Flow | Pressure | Power | Notes | |
| JM-0.47/0.7 | 0.47 L/h | 0.7 MPa | 15 W | speed 7 min⁻¹; connection M19×1.5; power 15 W; approx. 3.36 kg | |
| JM-1.1/0.7 | 1.1 L/h | 0.7 MPa | 15 W | speed 12 min⁻¹; connection M19×1.5; power 15 W; approx. 3.36 kg | |
| JM-2.36/0.7 | 2.36 L/h | 0.7 MPa | 15 W | speed 24 min⁻¹; connection M19×1.5; power 15 W; approx. 3.36 kg | |
| JM-3.78/0.7 | 3.78 L/h | 0.7 MPa | 15 W | speed 48 min⁻¹; connection M19×1.5; power 15 W; approx. 3.36 kg | |
| JM-4.72/0.7 | 4.72 L/h | 0.7 MPa | 15 W | speed 48 min⁻¹; connection M19×1.5; power 15 W; approx. 3.36 kg | |
| JM-10.72/0.42 | 10.72 L/h | 0.42 MPa | 15 W | speed 72 min⁻¹; connection M19×1.5; power 15 W; approx. 3.36 kg | |
| JM-15.77/0.42 | 15.77 L/h | 0.42 MPa | 15 W | speed 72 min⁻¹; connection M19×1.5; power 15 W; approx. 3.36 kg |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
