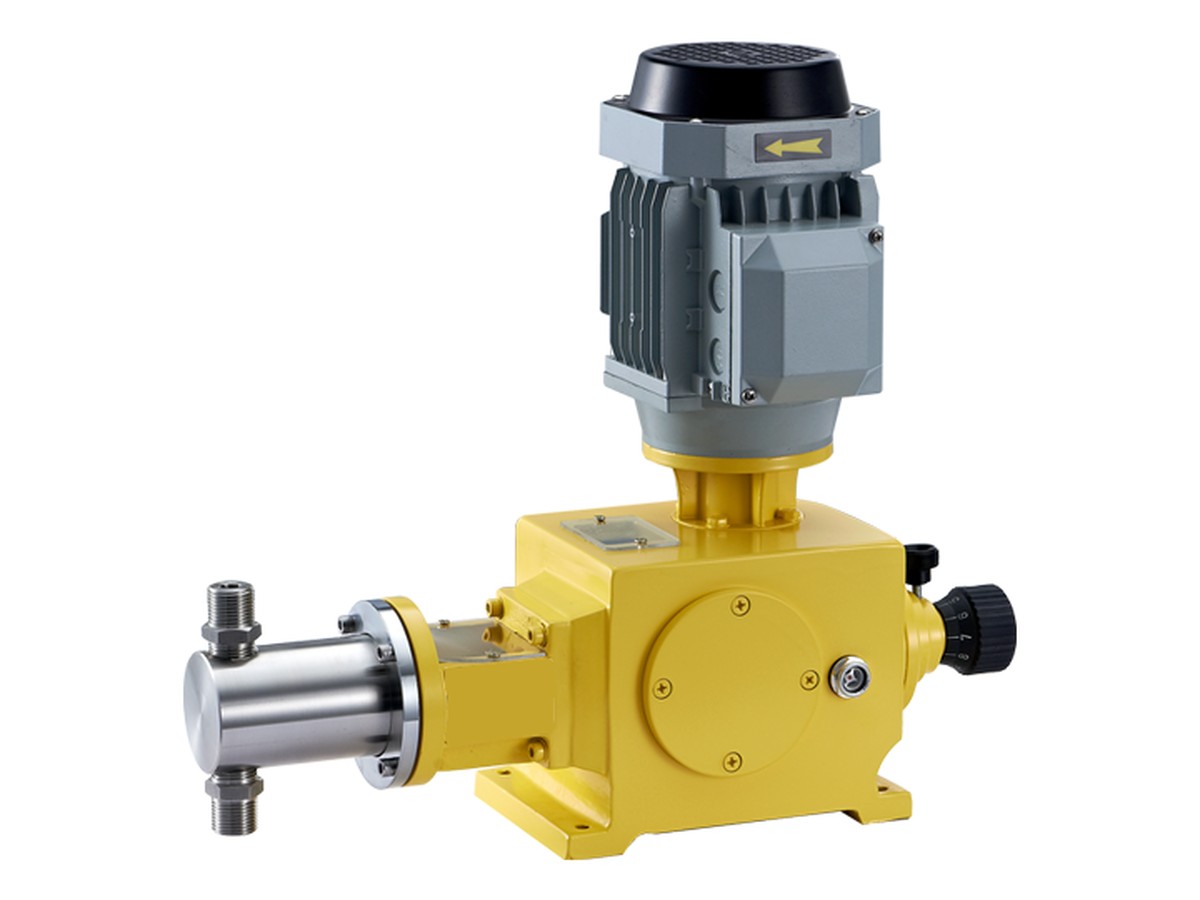

Zhongcheng JPX Plunger Metering Pump

Name: Zhongcheng JPX Plunger Metering Pump
Brand: Zhongcheng

Zhongcheng JPX plunger metering pump: ~1–230 L/h, ~1–40 MPa; ±1% accuracy class per page.

Max flow

1 L/h … 230 L/h

Max pressure

1–40 MPa

Turndown / accuracy

—

Wetted materials

—

Protection

—

Power

—

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Metering Pump). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

SS and PTFE wetted parts
Precision cast housing with bronze worm gear
Flow adjustable running or stopped
Optional jacketed head / explosion-proof motor
Dual/multi-head parallel options

Specifications

Metering range	1–230 L/H
Pressure range	1–40 MPa
Drive/Control	motor drive; manual or 4–20 mA automatic
Media	approx. -30~120 °C; viscosity approx. 0.3~800 mm²/s

Applications

High-accuracy plunger dosing

Corrosive/abrasive service

Materials & media

Ask for wetted-parts details or check the brochure.

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Drive/Control

motor drive; manual or 4–20 mA automatic

Models & specs

Model	Flow	Pressure	Power
JPX1/40	1 L/h	40 MPa	0.37 kW
JPX2/40	2 L/h	40 MPa	—
JPX5/33	5 L/h	33 MPa	—
JPX8/21	8 L/h	21 MPa	—
JPX12/15	12 L/h	15 MPa	—
JPX20/8	20 L/h	8 MPa	—
JPX33/5	33 L/h	5 MPa	—
JPX52/3.3	52 L/h	3.3 MPa	—
JPX65/2.6	65 L/h	2.6 MPa	—
JPX88/2.1	88 L/h	2.1 MPa	—
JPX105/1.7	105 L/h	1.7 MPa	—
JPX125/1.4	125 L/h	1.4 MPa	—
JPX155/1.1	155 L/h	1.1 MPa	—
JPX190/1.1	190 L/h	1.1 MPa	—
JPX230/1.0	230 L/h	1.0 MPa	—
