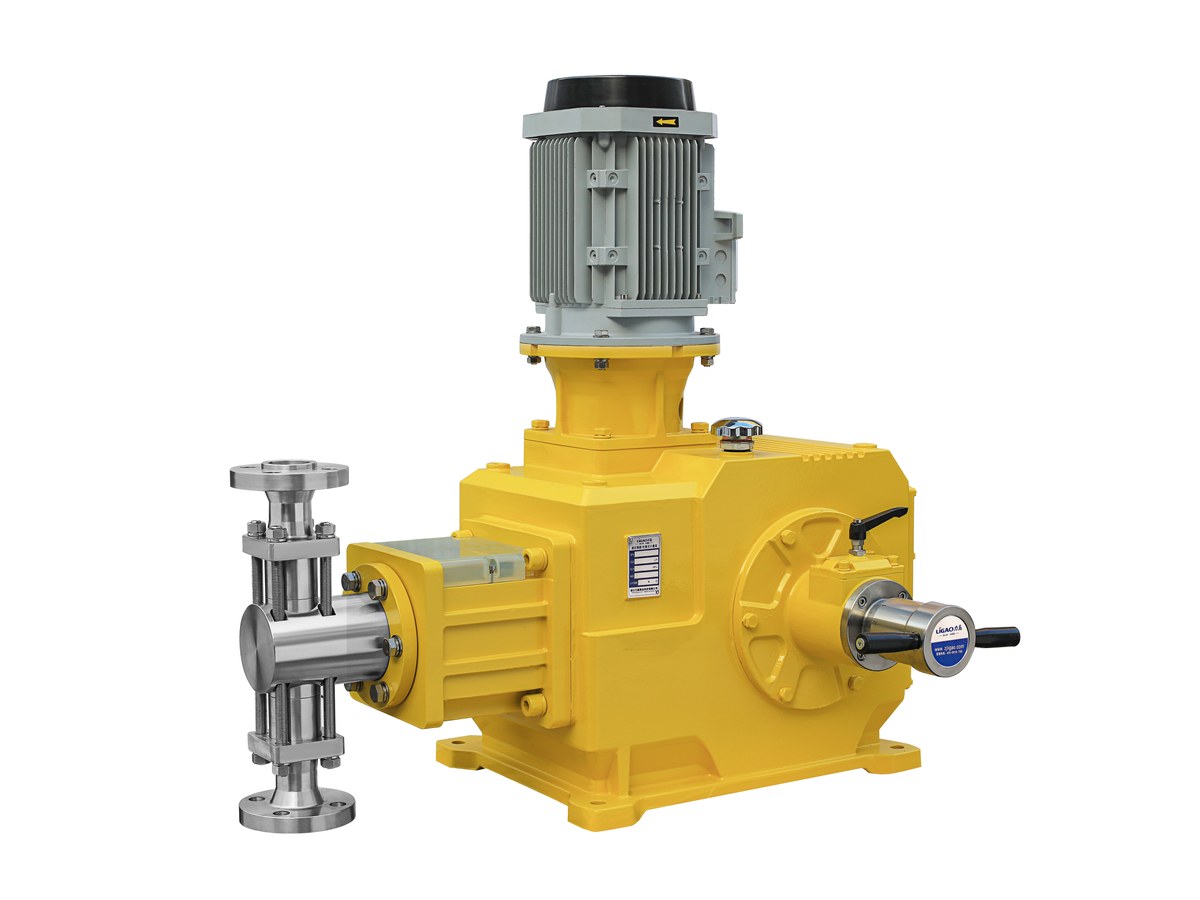

Ligao JPG Plunger Metering Pump

Name: Ligao JPG Plunger Metering Pump
Brand: Ligao

Ligao JPG plunger pump. ~100–16000 L/h; pressure by motor rating, up to ~50 MPa.

Max flow

100–16000 L/h

Max pressure

max. approx. 50 MPa (by motor power)

Turndown / accuracy

—

Wetted materials

304, 316L etc.

Protection

—

Power

—

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Metering Pump). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

Very large-flow plunger
Multi-kW pressure ratings
Multi-head options

Specifications

Flow range	100–16000 L/h
Max pressure	max. approx. 50 MPa (by motor power)
Stroke / control	high accuracy stroke adjustment
Wetted materials	304, 316L etc.
Diaphragm / plunger	ceramic plunger
Drive	motor plunger drive

Applications

Municipal water

Industrial wastewater

Chemical dosing

Oil & gas

Power & environmental

Pharma & paper

Materials & media

Wetted materials	304, 316L etc.
Diaphragm / plunger	ceramic plunger

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Stroke / control

high accuracy stroke adjustment

Models & specs

Model	Flow	Pressure	Power
JPG100/50	100 L/h	50 MPa	see manual
JPG150/(30/43/50)	150 L/h	30 / 43 / 50 MPa (by motor power)	see manual
JPG200/(25/34/50)	200 L/h	25 / 34 / 50 MPa (by motor power)	see manual
JPG260/(19/26/40/50)	260 L/h	19 / 26 / 40 / 50 MPa (by motor power)	see manual
JPG370/(14/18/28/36)	370 L/h	14 / 18 / 28 / 36 MPa (by motor power)	see manual
JPG460/(11/15/23/30)	460 L/h	11 / 15 / 23 / 30 MPa (by motor power)	see manual
JPG660/(8/10/16/21)	660 L/h	8 / 10 / 16 / 21 MPa (by motor power)	see manual
JPG800/(6.5/9/13/18)	800 L/h	6.5 / 9 / 13 / 18 MPa (by motor power)	see manual
JPG950/(5.3/7.5/11/14.5)	950 L/h	5.3 / 7.5 / 11 / 14.5 MPa (by motor power)	see manual
JPG1110/(4.5/6.2/9.5/12)	1110 L/h	4.5 / 6.2 / 9.5 / 12 MPa (by motor power)	see manual
JPG1300/(4/5.5/8.3/10.5)	1300 L/h	4 / 5.5 / 8.3 / 10.5 MPa (by motor power)	see manual
JPG1500/(3.5/4.6/7.2/9.3)	1500 L/h	3.5 / 4.6 / 7.2 / 9.3 MPa (by motor power)	see manual
JPG1680/(3/4.2/6.3/8.2)	1680 L/h	3 / 4.2 / 6.3 / 8.2 MPa (by motor power)	see manual
JPG1880/(2.7/3.7/5.5/7.4)	1880 L/h	2.7 / 3.7 / 5.5 / 7.4 MPa (by motor power)	see manual
JPG2150/(2.4/3.3/5/6.5)	2150 L/h	2.4 / 3.3 / 5 / 6.5 MPa (by motor power)	see manual
JPG2400/(2.1/3/4.5/5.9)	2400 L/h	2.1 / 3 / 4.5 / 5.9 MPa (by motor power)	see manual
JPG2650/(1.9/2.7/4/5.2)	2650 L/h	1.9 / 2.7 / 4 / 5.2 MPa (by motor power)	see manual
JPG3210/(1.6/2.2/3.3/4.4)	3210 L/h	1.6 / 2.2 / 3.3 / 4.4 MPa (by motor power)	see manual
JPG3850/(1.3/1.9/2.8/3.7)	3850 L/h	1.3 / 1.9 / 2.8 / 3.7 MPa (by motor power)	see manual
JPG4520/(1.1/1.6/2.4/3)	4520 L/h	1.1 / 1.6 / 2.4 / 3 MPa (by motor power)	see manual
JPG5240/(1/1.4/2/2.5)	5240 L/h	1 / 1.4 / 2 / 2.5 MPa (by motor power)	see manual
JPG6000/(0.9/1.2/1.8/2.3)	6000 L/h	0.9 / 1.2 / 1.8 / 2.3 MPa (by motor power)	see manual
JPG6850/(0.8/1/1.6/2)	6850 L/h	0.8 / 1 / 1.6 / 2 MPa (by motor power)	see manual
JPG7700/(0.7/0.9/1.4/1.8)	7700 L/h	0.7 / 0.9 / 1.4 / 1.8 MPa (by motor power)	see manual
JPG8600/(0.6/0.8/1.2/1.6)	8600 L/h	0.6 / 0.8 / 1.2 / 1.6 MPa (by motor power)	see manual
JPG9600/(0.5/0.7/1.1/1.5)	9600 L/h	0.5 / 0.7 / 1.1 / 1.5 MPa (by motor power)	see manual
JPG10700/(0.5/0.7/1/1.3)	10700 L/h	0.5 / 0.7 / 1 / 1.3 MPa (by motor power)	see manual
JPG11600/(0.5/0.7/1/1.3)	11600 L/h	0.5 / 0.7 / 1 / 1.3 MPa (by motor power)	see manual
JPG13000/(0.4/0.6/0.9/1.2)	13000 L/h	0.4 / 0.6 / 0.9 / 1.2 MPa (by motor power)	see manual
JPG14500/(0.3/0.5/0.8/1)	14500 L/h	0.3 / 0.5 / 0.8 / 1 MPa (by motor power)	see manual
JPG16000/(0.3/0.5/0.7/0.9)	16000 L/h	0.3 / 0.5 / 0.7 / 0.9 MPa (by motor power)	see manual
