Plunger Metering Pumps

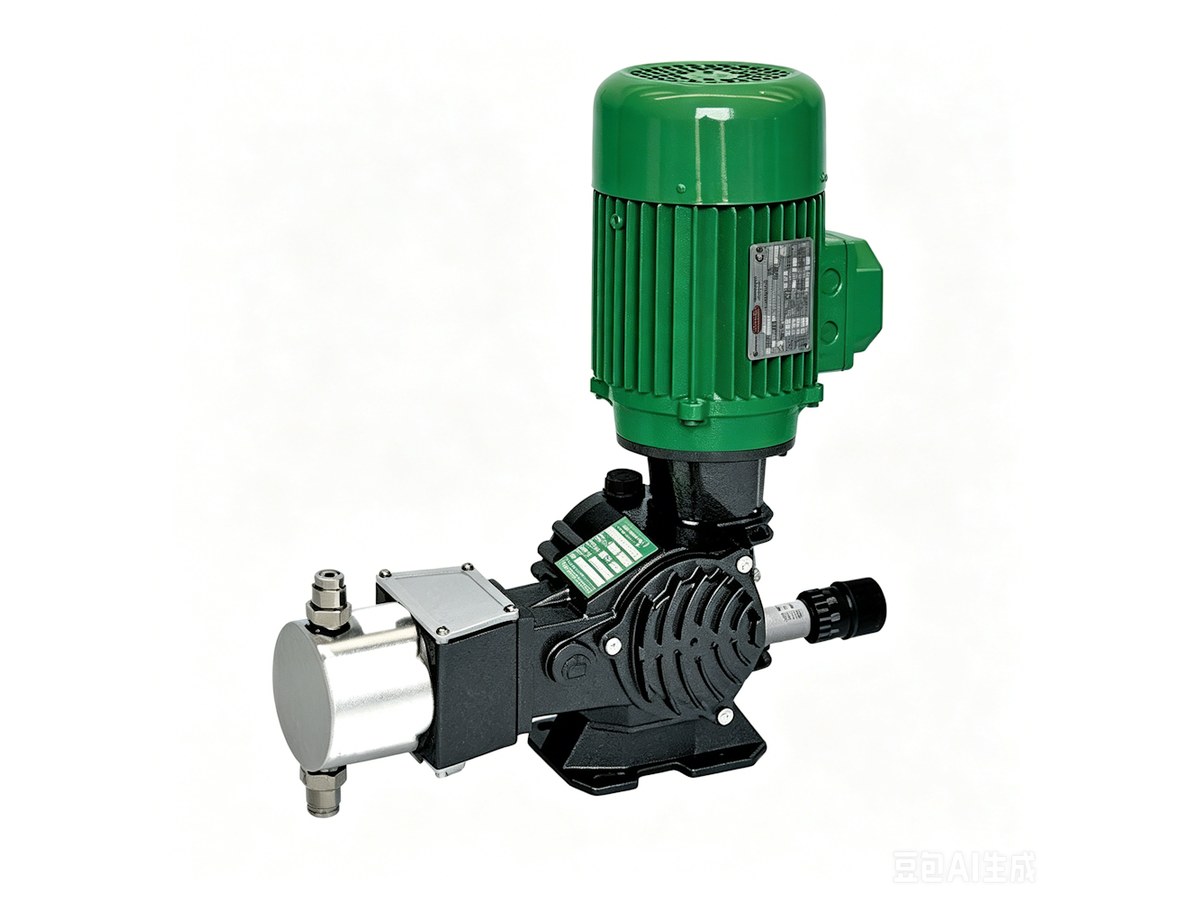

Doseuro Type A Spring Return Plunger Metering Pump
Doseuro Type A spring-return plunger metering pumps. Standard to ~1,458 L/h / 20 barg by size; AP-A high-pressure to ~250 barg. Wetted SS316L/PVC/PP/PVDF/PTFE; manual/auto/RAPIDA.
Max flow
standard max. approx. 1,458 L/h (A350N @ 4 bar); high pressure AP-A approx. 15.6–74 L/h
Max pressure
standard max. approx. 20 barg; high pressure AP max. approx. 250 barg
Turndown / accuracy
—
Wetted materials
SS316L / PVC / PP / PVDF / PTFE
Protection
—
Power
—
Features
- Vertical motor, spring-return mechanism
- High accuracy; easy install & priming
- ATEX version available
- Manual / automatic / RAPIDA adjustment
- Wetted materials: SS316L, PVC, PP, PVDF, PTFE
- AP = high-pressure; higher pressures on request
Specifications
| Flow | standard max. approx. 1,458 L/h (A350N @ 4 bar); high pressure AP-A approx. 15.6–74 L/h |
| Max pressure | standard max. approx. 20 barg; high pressure AP max. approx. 250 barg |
| Drive | spring return plunger |
| Wetted parts | SS316L / PVC / PP / PVDF / PTFE |
| Control | manual / RAPIDA |
| Brand | Doseuro |
Applications
Materials & media
| Wetted parts | SS316L / PVC / PP / PVDF / PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Control | manual / RAPIDA |
Models & specs
| Model | Notes | |
| A125N | 156 L/h @ 20 bar | |
| A175N | 408 L/h @ 20 bar | |
| A250N | 1,042 L/h @ 20 bar | |
| A350N | 1,458 L/h @ 4 bar | |
| AP-A125N | 15.6 L/h @ ~250 bar | |
| AP-A175N | 28.6 L/h @ ~250 bar | |
| AP-A250N | 74.1 L/h @ ~250 bar (UK); catalog also lists 57.4 @ 230 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
Related / accessories
Related solutions
Beverage Line Ingredient Dosing
High-precision food-grade dosing of syrup, acidulants and preservatives.
Fertigation (Water-Fertilizer Integration)
Precise fertilizer/acid injection into irrigation networks with online EC/pH control.
Municipal Wastewater Dosing
Integrated dosing systems combining metering pumps and online water quality monitoring for coagulation, disinfection and dephosphorization.
Related case studies

Electroplating

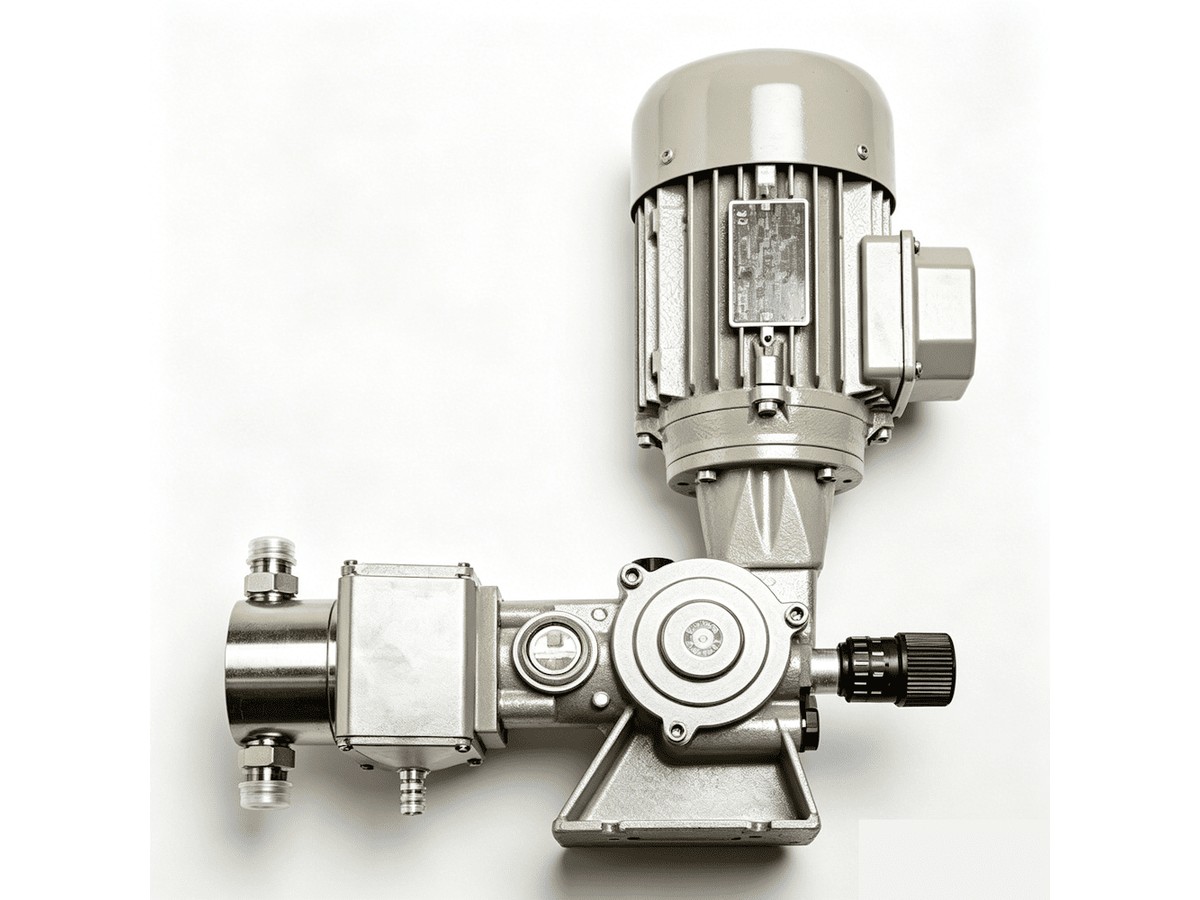

Electroplating Cr(VI) Reduction
