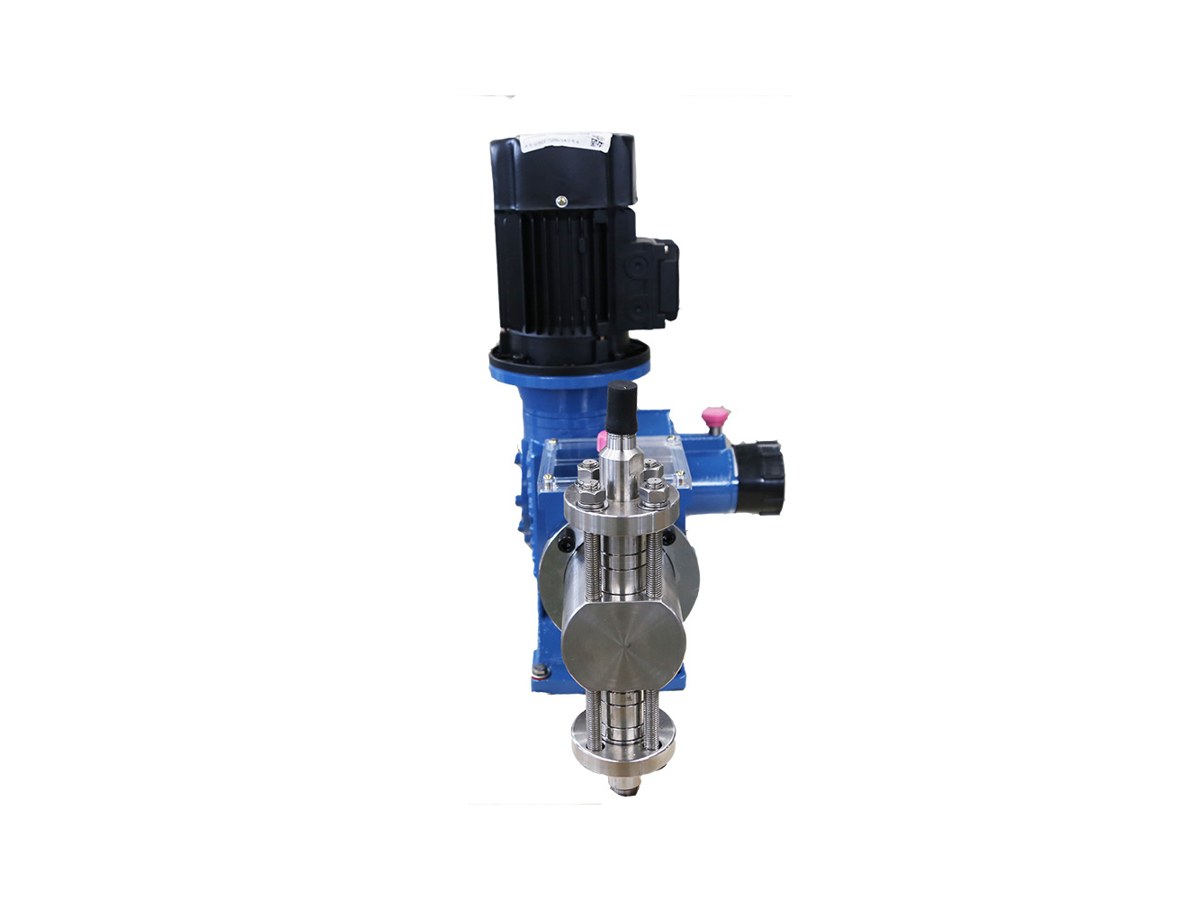

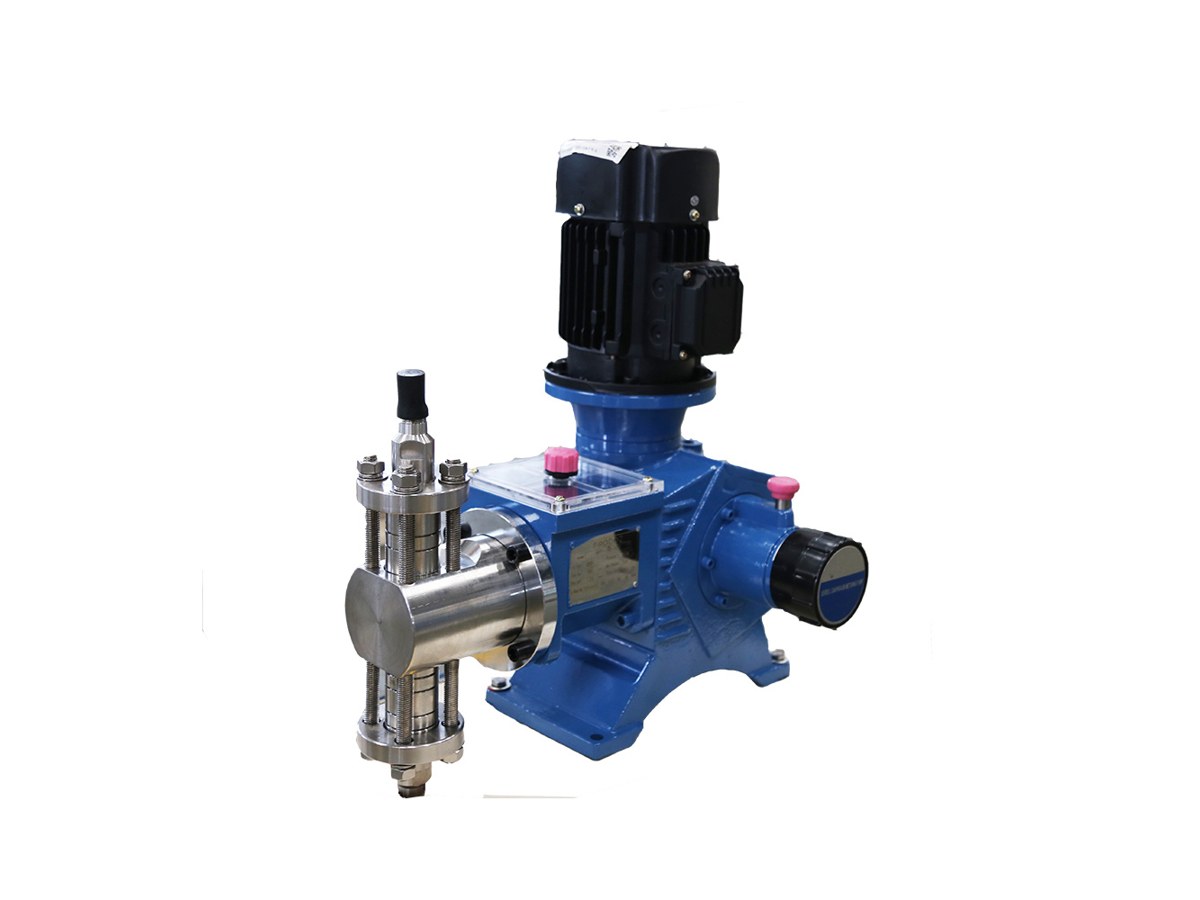

Ailipu J1.6A Plunger Metering Pump

Name: Ailipu J1.6A Plunger Metering Pump
Brand: Ailipu

J1.6/J1.6A plunger metering pump (1.6 kN frame). Flow ~0.25 – 240 L/h, pressure up to ~40 MPa. Stroke 7–20 mm.

Max flow

0.25 – 240 L/h

Max pressure

0.63 – 40 MPa

Turndown / accuracy

stroke 10%–100% accuracy ±1%

Wetted materials

SS304 / SS316L / Hastelloy / ceramic etc. (see B.3)

Protection

—

Power

—

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Metering Pump). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

H-type eccentric adjuster
Vertical motor anti-leak
High pressure / low flow
Multi-head combinable

Specifications

Type	plunger type metering pump
Flow range	0.25 – 240 L/h
Pressure range	0.63 – 40 MPa
Stroke	7 / 12.5 / 20 mm (depends on model)
Accuracy	stroke 10%–100% accuracy ±1%
Suction lift	≤6 m (plunger)
Wetted materials	SS304 / SS316L / Hastelloy / ceramic etc. (see B.3)
Motor	Ex-proof / VFD optional
Standard	GB/T 7782; optional API 675
Frame force	1.6 kN
Weight	approx. 60 kg
Brand	Ailipu

Applications

Oil & petrochemical

Chemical

Power

Nuclear

Mining

Food & pharma

Materials & media

Wetted materials

SS304 / SS316L / Hastelloy / ceramic etc. (see B.3)

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Control options are listed in notes or confirmed on inquiry.

Models & specs

Model	Flow	Pressure	Power	Notes
J1.6-0.25/40	0.25 L/h	40 MPa	0.55 kW	plunger φ5 mm; stroke 7 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.25/20	0.25 L/h	20 MPa	0.37 kW	plunger φ5 mm; stroke 7 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.3/40	0.3 L/h	40 MPa	0.55 kW	plunger φ5 mm; stroke 7 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.3/20	0.3 L/h	20 MPa	0.37 kW	plunger φ5 mm; stroke 7 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.5/40	0.5 L/h	40 MPa	0.55 kW	plunger φ5 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.5/20	0.5 L/h	20 MPa	0.37 kW	plunger φ5 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.63/40	0.63 L/h	40 MPa	0.55 kW	plunger φ5 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.63/20	0.63 L/h	20 MPa	0.37 kW	plunger φ5 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.75/40	0.75 L/h	40 MPa	0.55 kW	plunger φ6 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-0.75/20	0.75 L/h	20 MPa	0.37 kW	plunger φ6 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-1.0/40	1 L/h	40 MPa	0.55 kW	plunger φ6 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-1.0/20	1 L/h	20 MPa	0.37 kW	plunger φ6 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-1.5/32	1.5 L/h	32 MPa	0.55 kW	plunger φ8 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-1.5/16	1.5 L/h	16 MPa	0.37 kW	plunger φ8 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-2.0/32	2 L/h	32 MPa	0.55 kW	plunger φ8 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-2.0/16	2 L/h	16 MPa	0.37 kW	plunger φ8 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-2.4/20	2.4 L/h	20 MPa	0.55 kW	plunger φ10 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-2.4/10	2.4 L/h	10 MPa	0.37 kW	plunger φ10 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-3.0/20	3 L/h	20 MPa	0.55 kW	plunger φ10 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-3.0/10	3 L/h	10 MPa	0.37 kW	plunger φ10 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-3.5/12.5	3.5 L/h	12.5 MPa	0.55 kW	plunger φ12 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-3.5/6.3	3.5 L/h	6.3 MPa	0.37 kW	plunger φ12 mm; stroke 12.5 mm; speed 45 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-4.5/12.5	4.5 L/h	12.5 MPa	0.55 kW	plunger φ12 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-4.5/6.3	4.5 L/h	6.3 MPa	0.37 kW	plunger φ12 mm; stroke 12.5 mm; speed 58 spm; connection φ6 compression fitting or φ8 compression fitting; weight approx. 60 kg
J1.6-5.6/32	5.6 L/h	32 MPa	0.55 kW	plunger φ8 mm; stroke 20 mm; speed 106 spm; connection DN10; weight approx. 60 kg
J1.6-5.6/16	5.6 L/h	16 MPa	0.37 kW	plunger φ8 mm; stroke 20 mm; speed 106 spm; connection DN10; weight approx. 60 kg
J1.6-7.2/25	7.2 L/h	25 MPa	0.55 kW	plunger φ8 mm; stroke 20 mm; speed 135 spm; connection DN10; weight approx. 60 kg
J1.6-7.2/12.5	7.2 L/h	12.5 MPa	0.37 kW	plunger φ8 mm; stroke 20 mm; speed 135 spm; connection DN10; weight approx. 60 kg
J1.6-8.5/32	8.5 L/h	32 MPa	0.75 kW	plunger φ8 mm; stroke 20 mm; speed 168 spm; connection DN10; weight approx. 60 kg
J1.6-9.0/20	9 L/h	20 MPa	0.55 kW	plunger φ10 mm; stroke 20 mm; speed 106 spm; connection DN10; weight approx. 60 kg
J1.6-9.0/10	9 L/h	10 MPa	0.37 kW	plunger φ10 mm; stroke 20 mm; speed 106 spm; connection DN10; weight approx. 60 kg
J1.6-11.5/16	11.5 L/h	16 MPa	0.55 kW	plunger φ10 mm; stroke 20 mm; speed 135 spm; connection DN10; weight approx. 60 kg
J1.6-11.5/8	11.5 L/h	8 MPa	0.37 kW	plunger φ10 mm; stroke 20 mm; speed 135 spm; connection DN10; weight approx. 60 kg
J1.6-13/20	13 L/h	20 MPa	0.75 kW	plunger φ10 mm; stroke 20 mm; speed 168 spm; connection DN10; weight approx. 60 kg
J1.6-13/12.5	13 L/h	12.5 MPa	0.55 kW	plunger φ12 mm; stroke 20 mm; speed 106 spm; connection DN10; weight approx. 60 kg
J1.6-13/6.3	13 L/h	6.3 MPa	0.37 kW	plunger φ12 mm; stroke 20 mm; speed 106 spm; connection DN10; weight approx. 60 kg
J1.6-16.5/10	16.5 L/h	10 MPa	0.55 kW	plunger φ12 mm; stroke 20 mm; speed 135 spm; connection DN10; weight approx. 60 kg
J1.6-16.5/5	16.5 L/h	5 MPa	0.37 kW	plunger φ12 mm; stroke 20 mm; speed 135 spm; connection DN10; weight approx. 60 kg
J1.6-20/12.5	20 L/h	12.5 MPa	0.75 kW	plunger φ12 mm; stroke 20 mm; speed 168 spm; connection DN10; weight approx. 60 kg
J1.6-23/8	23 L/h	8 MPa	0.55 kW	plunger φ16 mm; stroke 20 mm; speed 106 spm; connection DN10; weight approx. 60 kg
J1.6-23/4	23 L/h	4 MPa	0.37 kW	plunger φ16 mm; stroke 20 mm; speed 106 spm; connection DN10; weight approx. 60 kg
J1.6-30/6.3	30 L/h	6.3 MPa	0.55 kW	plunger φ16 mm; stroke 20 mm; speed 135 spm; connection DN10; weight approx. 60 kg
J1.6-30/3	30 L/h	3.2 MPa	0.75 kW	plunger φ16 mm; stroke 20 mm; speed 135 spm; connection DN10; weight approx. 60 kg
J1.6-36/8	36 L/h	8 MPa	0.75 kW	plunger φ16 mm; stroke 20 mm; speed 168 spm; connection DN15; weight approx. 60 kg
J1.6-36/5	36 L/h	5 MPa	0.55 kW	plunger φ20 mm; stroke 20 mm; speed 106 spm; connection DN15; weight approx. 60 kg
J1.6-36/2.5	36 L/h	2.5 MPa	0.37 kW	plunger φ20 mm; stroke 20 mm; speed 106 spm; connection DN15; weight approx. 60 kg
J1.6-46/4	46 L/h	4 MPa	0.55 kW	plunger φ20 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-46/2	46 L/h	2 MPa	0.37 kW	plunger φ20 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-58/4.5	58 L/h	4.5 MPa	L.1	plunger φ20 mm; stroke 20 mm; speed 168 spm; connection DN15; weight approx. 60 kg
J1.6-58/3.2	58 L/h	3.2 MPa	0.55 kW	plunger φ25 mm; stroke 20 mm; speed 106 spm; connection DN15; weight approx. 60 kg
J1.6-58/1.6	58 L/h	1.6 MPa	0.37 kW	plunger φ25 mm; stroke 20 mm; speed 106 spm; connection DN15; weight approx. 60 kg
J1.6-72/2.5	72 L/h	2.5 MPa	0.55 kW	plunger φ25 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-72/1.3	72 L/h	1.3 MPa	0.37 kW	plunger φ25 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-90/3	90 L/h	3 MPa	0.75 kW	plunger φ25 mm; stroke 20 mm; speed 168 spm; connection DN15; weight approx. 60 kg
J1.6-80/2.2	80 L/h	2.2 MPa	0.55 kW	plunger φ30 mm; stroke 20 mm; speed 106 spm; connection DN15; weight approx. 60 kg
J1.6-80/1	80 L/h	1 MPa	0.37 kW	plunger φ30 mm; stroke 20 mm; speed 106 spm; connection DN15; weight approx. 60 kg
J1.6-105/1.6	105 L/h	1.6 MPa	0.55 kW	plunger φ30 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-105/0.8	105 L/h	0.8 MPa	0.37 kW	plunger φ30 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-130/2	130 L/h	2 MPa	0.75 kW	plunger φ30 mm; stroke 20 mm; speed 168 spm; connection DN15; weight approx. 60 kg
J1.6-95/2	95 L/h	2 MPa	0.55 kW	plunger φ32 mm; stroke 20 mm; speed 106 spm; connection DN15; weight approx. 60 kg
J1.6-95/1	95 L/h	1 MPa	0.37 kW	plunger φ32 mm; stroke 20 mm; speed 106 spm; connection DN15; weight approx. 60 kg
J1.6-120/1.6	120 L/h	1.6 MPa	0.55 kW	plunger φ32 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-120/0.8	120 L/h	0.8 MPa	0.37 kW	plunger φ32 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-150/1.6	150 L/h	1.5 MPa	0.75 kW	plunger φ36 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-150/1.3	150 L/h	1.3 MPa	0.55 kW	plunger φ36 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-150/0.8	150 L/h	0.8 MPa	0.37 kW	plunger φ36 mm; stroke 20 mm; speed 135 spm; connection DN15; weight approx. 60 kg
J1.6-190/1.3	190 L/h	1.3 MPa	0.75 kW	plunger φ36 mm; stroke 20 mm; speed 168 spm; connection DN15; weight approx. 60 kg
J1.6-190/1.25	190 L/h	1.25 MPa	0.75 kW	plunger φ40 mm; stroke 20 mm; speed 135 spm; connection DN20; weight approx. 60 kg
J1.6-190/1.0	190 L/h	1 MPa	0.55 kW	plunger φ40 mm; stroke 20 mm; speed 135 spm; connection DN20; weight approx. 60 kg
J1.6-190/0.63	190 L/h	0.63 MPa	0.37 kW	plunger φ40 mm; stroke 20 mm; speed 135 spm; connection DN20; weight approx. 60 kg
J1.6-240/1.25	240 L/h	1 MPa	0.75 kW	plunger φ40 mm; stroke 20 mm; speed 168 spm; connection DN20
