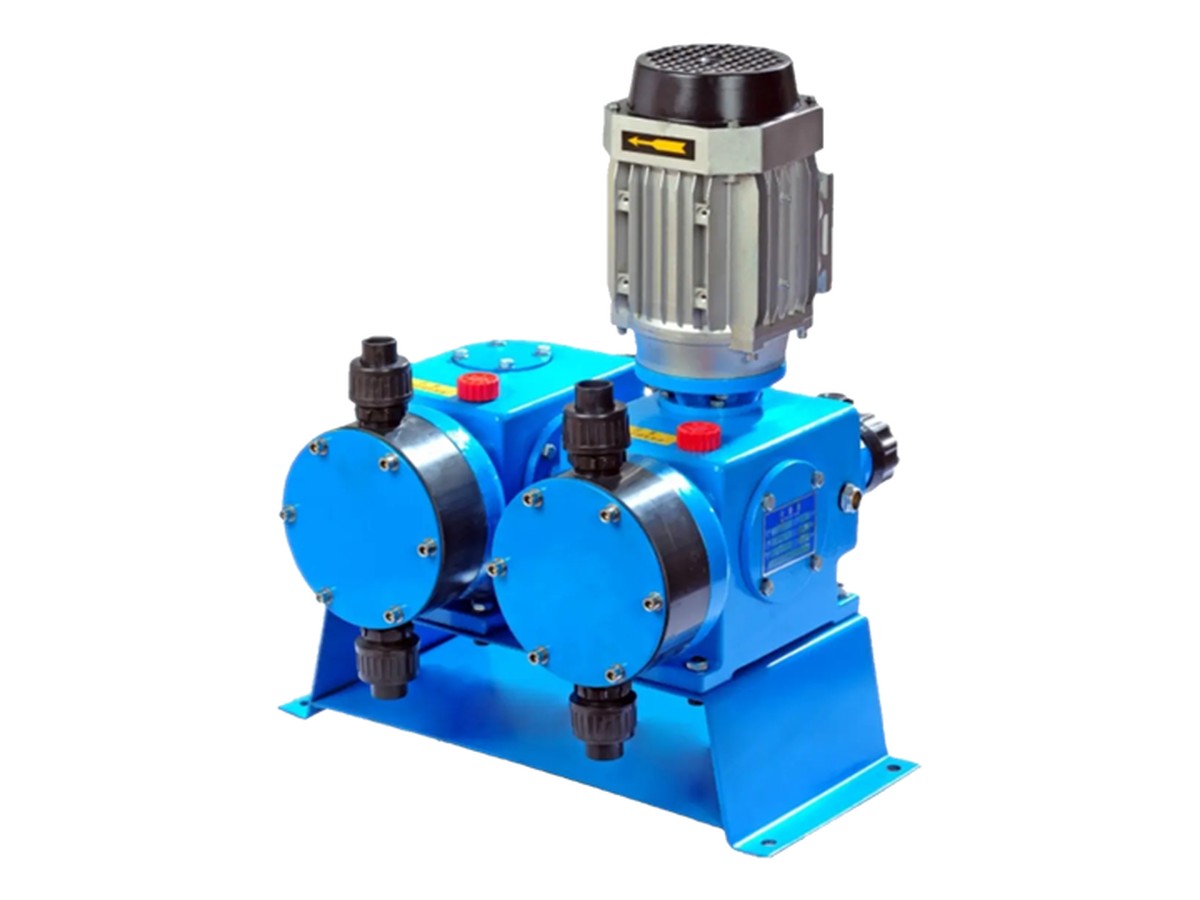

Zhongcheng 2DJX Mechanical Diaphragm Metering Pump

Name: Zhongcheng 2DJX Mechanical Diaphragm Metering Pump
Brand: Zhongcheng

Zhongcheng 2DJX worm-driven mechanical diaphragm pump. Official range 0–480 L/h, 0.4–1.2 MPa.

Max flow

0–480 L/h

Max pressure

0.4–1.2 MPa

Turndown / accuracy

—

Wetted materials

—

Protection

IP54，IP55

Power

—

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Mechanical Diaphragm Pumps). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

Motor with worm gear drive
0–100% stepless flow
PVC/PTFE/SS head options
PTFE/rubber composite diaphragm
IP54/IP55 protection

Specifications

Flow range	0–480 L/h
Pressure range	0.4–1.2 MPa
Protection	IP54，IP55
Ambient	-30℃–80℃

Applications

Low-pressure fluid metering

Corrosive/non-corrosive dosing

Materials & media

Ask for wetted-parts details or check the brochure.

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Control options are listed in notes or confirmed on inquiry.

Models & specs

Model	Flow	Pressure	Power
2DJX 50/1.2	50 L/h	1.2 MPa	0.37 kW
2DJX 100/1.0	100 L/h	1 MPa	—
2DJX 160/0.7	160 L/h	0.7 MPa	—
2DJX 240/0.6	240 L/h	0.6 MPa	—
2DJX 350/0.4	350 L/h	0.4 MPa	—
2DJX 480/0.4	480 L/h	0.4 MPa	—
