Mechanical Diaphragm Pumps

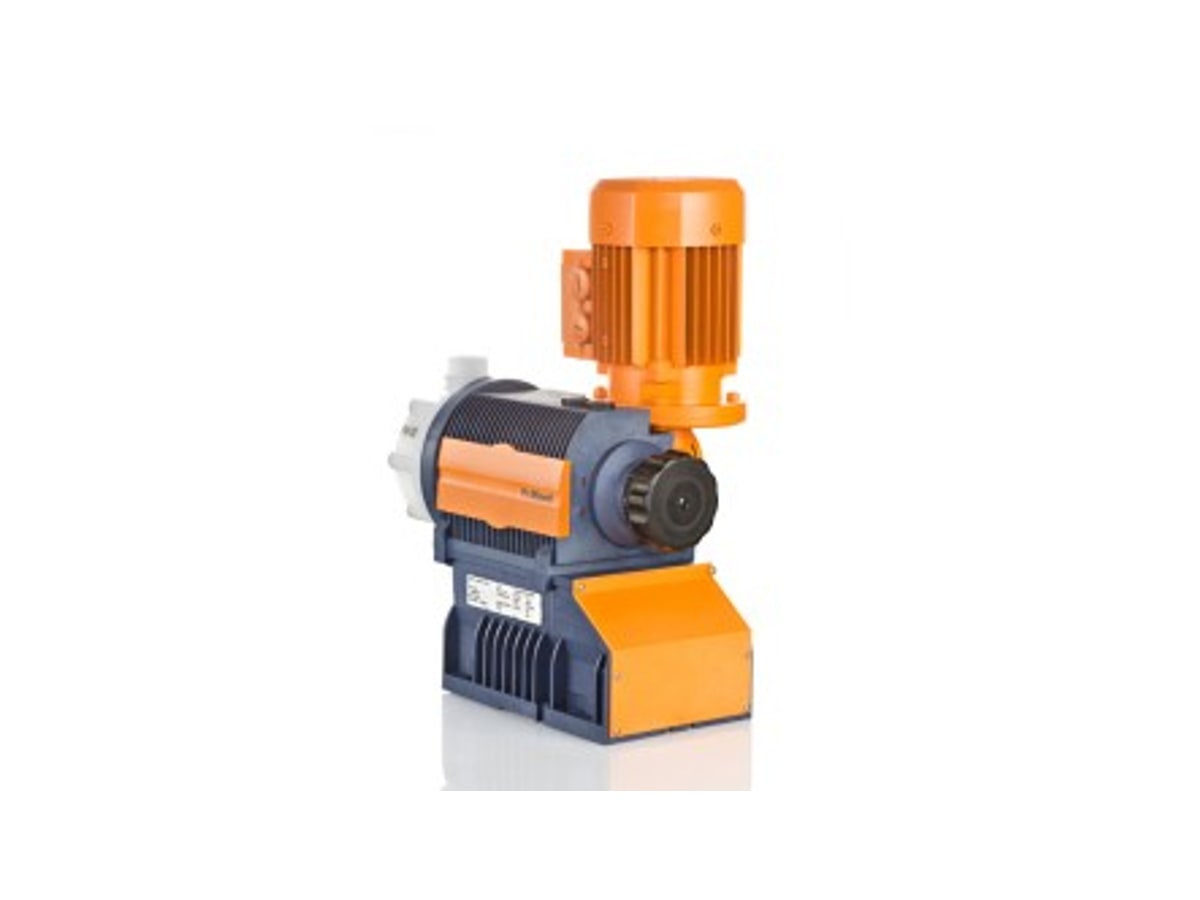

ProMinent Sigma/1 Motor Diaphragm Metering Pump
Rugged motor diaphragm pump with multilayer safety diaphragm. Basic 17–144 L/h, 12–4 bar; control S1Cb 21–117 L/h.
Max flow
17 – 144 L/h
Max pressure
12 – 4 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- Multilayer safety diaphragm
- Basic 17–144 L/h, 12–4 bar
- Control S1Cb 21–117 L/h, 12–4 bar
- Multiple drives incl. Ex
Specifications
| Basic flow | 17 – 144 L/h |
| Basic pressure | 12 – 4 bar |
| Control S1Cb | 21 – 117 L/h, 12 – 4 bar |
| Brand | ProMinent |
| Series flow | 17 – 144 L/h (; is 50Hz) |
| Pressure | 12 – 4 bar |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Control S1Cb | 21 – 117 L/h, 12 – 4 bar |
Models & specs
| Model | Flow | Pressure | SPM | Notes | |
| S1Ba 12017 | 17 L/h | 12 bar | 73 | 50 Hz / 1500 rpm | |
| S1Ba 12035 | 35 L/h | 12 bar | 143 | ||
| S1Ba 10050 | 50 L/h | 10 bar | 205 | ||
| S1Ba 10022 | 22 L/h | 10 bar | 73 | ||
| S1Ba 10044 | 44 L/h | 10 bar | 143 | ||
| S1Ba 07065 | 65 L/h | 7 bar | 205 | ||
| S1Ba 07042 | 42 L/h | 7 bar | 73 | ||
| S1Ba 04084 | 84 L/h | 4 bar | 143 | ||
| S1Ba 04120 | 120 L/h | 4 bar | 205 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
