Mechanical Diaphragm Pumps

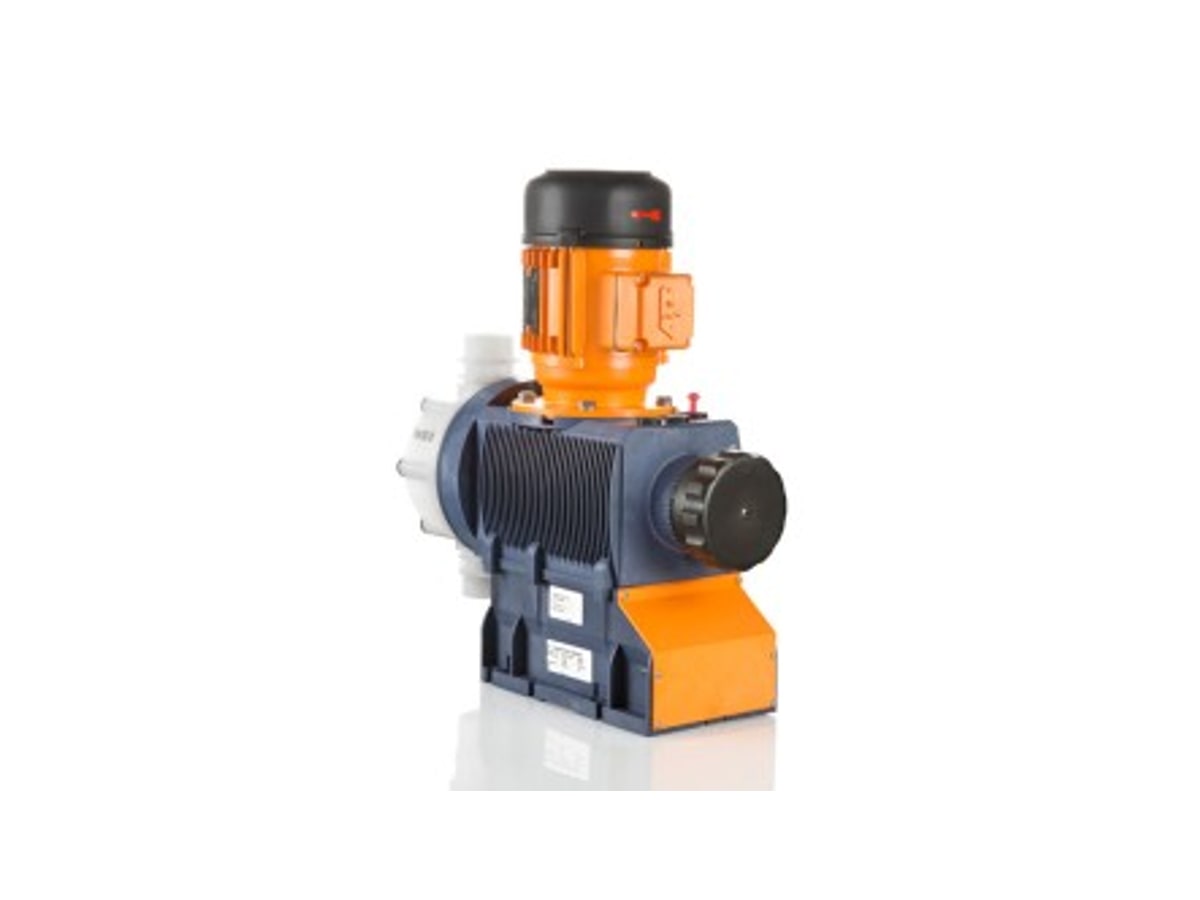

ProMinent Sigma/3 Motor Diaphragm Metering Pump
High-flow motor diaphragm pump. Basic 146–1,030 L/h, 12–4 bar; control S3Cb 182–1,040 L/h, 12–4 bar.
Max flow
146 – 1,030 L/h
Max pressure
12 – 4 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- Multilayer safety diaphragm
- Basic 146–1,030 L/h, 12–4 bar
- Control S3Cb 182–1,040 L/h, 12–4 bar
- Process-scale dosing
Specifications
| Basic flow | 146 – 1,030 L/h |
| Basic pressure | 12 – 4 bar |
| Control S3Cb | 182 – 1,040 L/h, 12 – 4 bar |
| Brand | ProMinent |
| Series flow | 146 – 1,030 L/h |
| Pressure | 12 – 4 bar |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

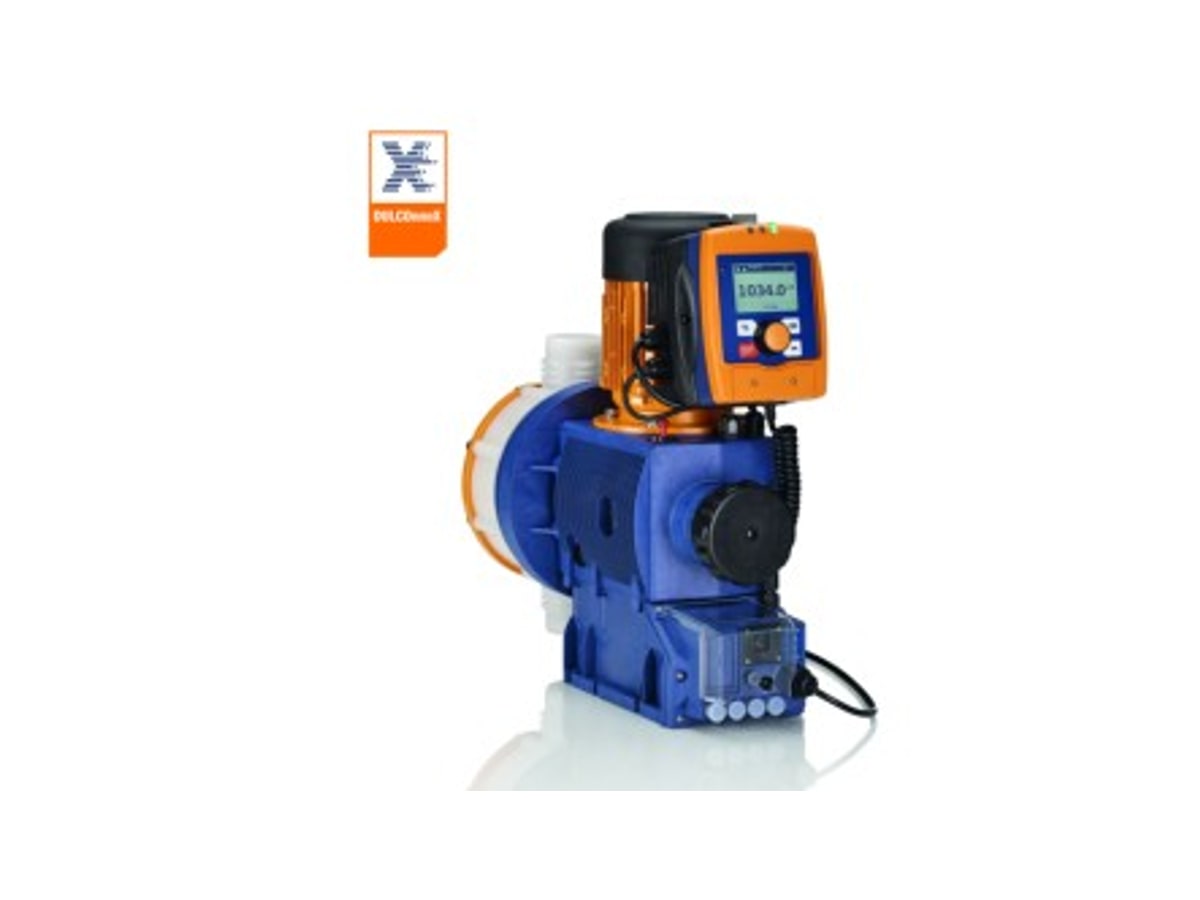

Controls & communication
| Control S3Cb | 182 – 1,040 L/h, 12 – 4 bar |
Models & specs
| Model | Flow | Pressure | SPM | Notes | |
| S3Ba 120145 | 146 L/h | 12 bar | 72 | 50 Hz | |
| S3Ba 120190 | 208 L/h | 12 bar | 103 | ||
| S3Ba 120270 | 292 L/h | 12 bar | 144 | ||
| S3Ba 120330 | 365 L/h | 12 bar | 180 | ||
| S3Ba 070410 | 410 L/h | 7 bar | 72 | ||
| S3Ba 070580 | 580 L/h | 7 bar | 103 | ||
| S3Ba 040830 | 830 L/h | 4 bar | 144 | ||
| S3Ba 041030 | 1030 L/h | 4 bar | 180 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
