Mechanical Diaphragm Pumps

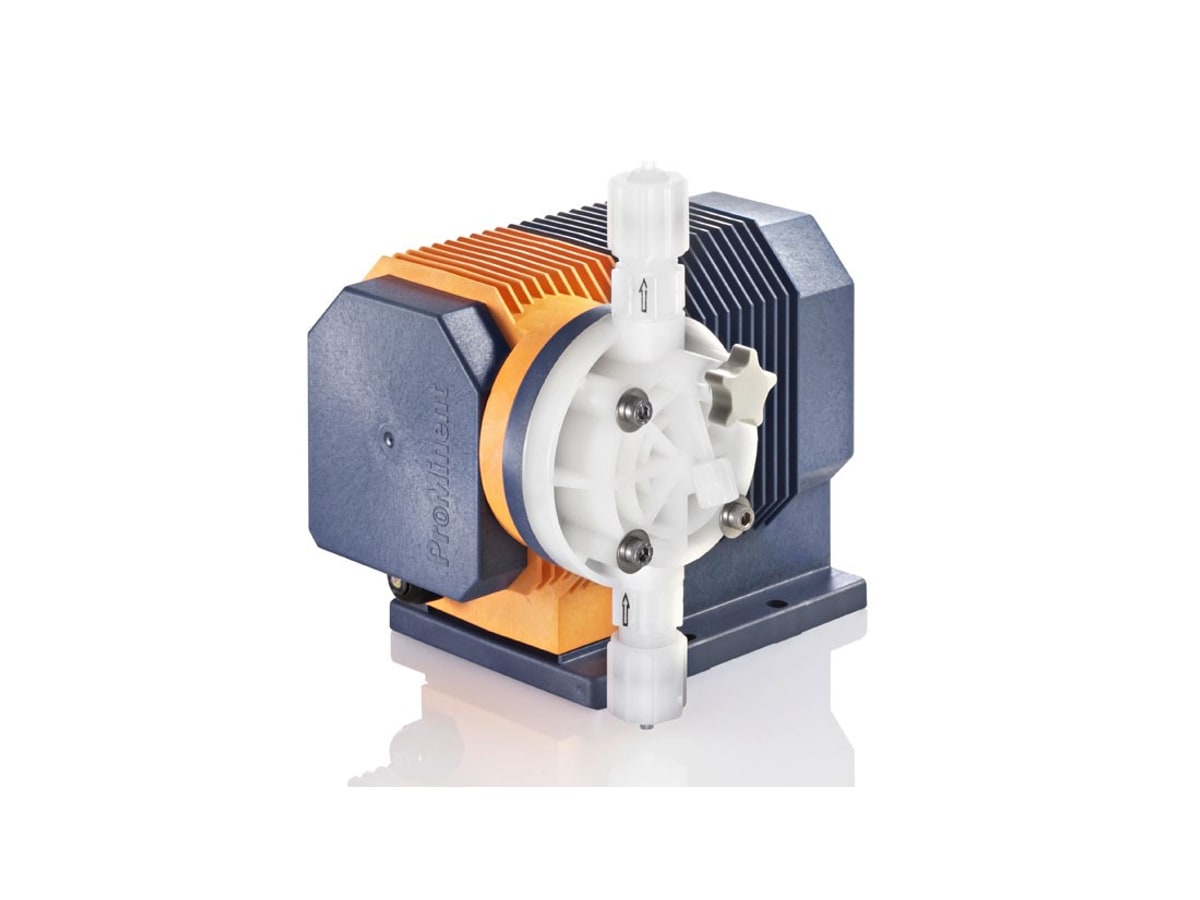

ProMinent alpha Motor-Driven Metering Pump
Rugged motor diaphragm pump, 1.0–30.6 L/h, 10–2 bar, for simple industrial dosing.
Max flow
1.0 – 30.6 L/h
Max pressure
10 – 2 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- 1.0–30.6 L/h, 10–2 bar
- Quiet, chemically resistant, accurate
- Good suction capability
- Economical for simple duties
Specifications
| Flow | 1.0 – 30.6 L/h |
| Back pressure | 10 – 2 bar |
| Brand | ProMinent |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | SPM | Notes | |
| ALPc 1001 | 1.0 L/h | 10 bar | 30 | 50 Hz | |
| ALPc 1008 | 7.7 L/h | 10 bar | 128 | 50 Hz | |
| ALPc 0417 | 17.0 L/h | 4 bar | 128 | 50 Hz | |
| ALPc 0230 | 30.6 L/h | 2 bar | 128 | 50 Hz |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
