Mechanical Diaphragm Pumps

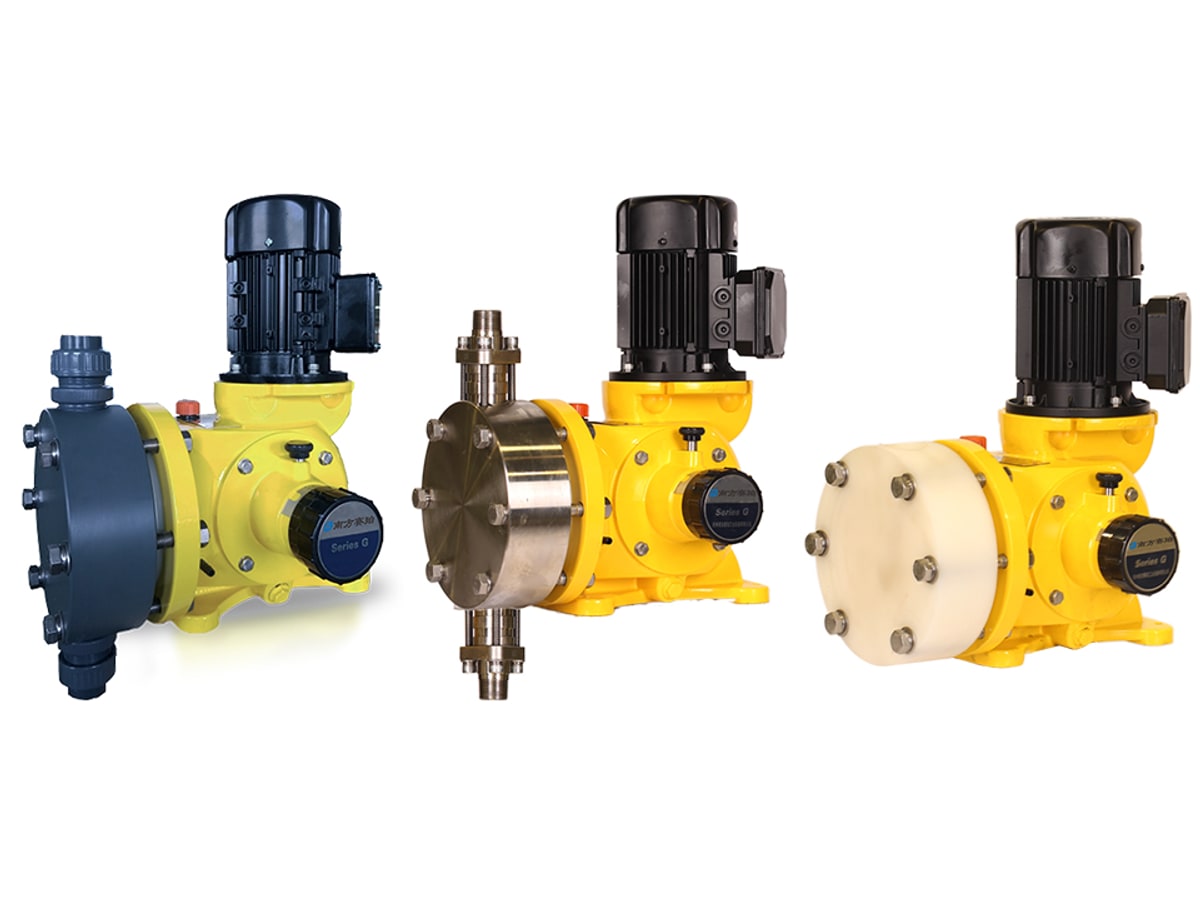

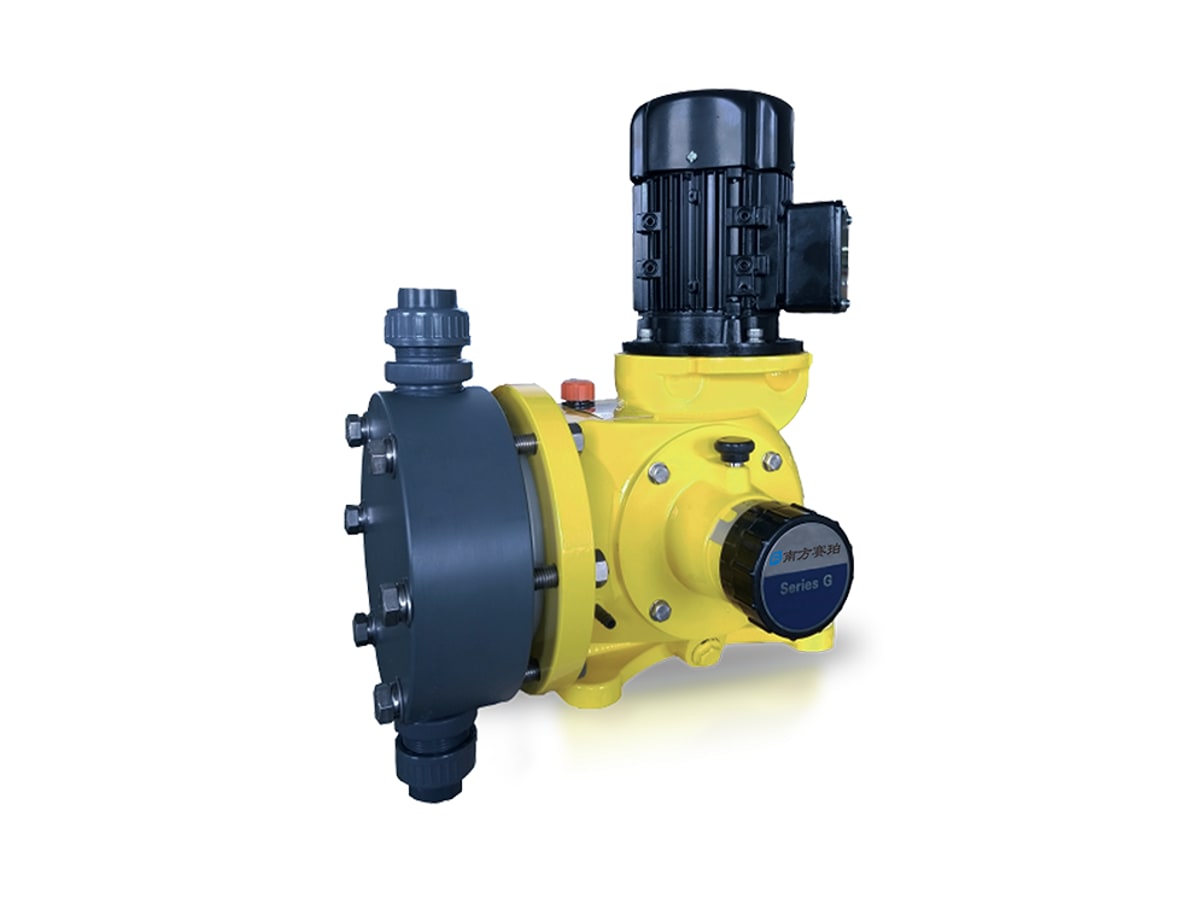

Nanfang Saibo GB Mechanical Diaphragm Metering Pump
Saibo GB. Max 2000 L/h, up to 12 bar.
Max flow
2000 L/h
Max pressure
12 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- High-flow mechanical
- Max 2000 L/h
- Up to 12 bar
Specifications
| Max flow | 2000 L/h |
| Max pressure | 12 bar |
| Brand | CNP |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Power | |
| GB0080 | 82 L/h | 10 bar | 0.55/0.75 kW | |
| GB0120 | 115 L/h | 10 bar | 0.55/0.75 kW | |
| GB0250 | 237 L/h | 10 bar | 0.55/0.75 kW | |
| GB0350 | 334 L/h | 10 bar | 0.55/0.75 kW | |
| GB0450 | 418 L/h | 10 bar | 0.55/0.75 kW | |
| GB0500 | 464 L/h | 7 bar | 0.55/0.75 kW | |
| GB0600 | 583 L/h | 7 bar | 0.55/0.75 kW | |
| GB0700 | 658 L/h | 3.5 bar | 0.55/0.75 kW | |
| GB1000 | 946 L/h | 3.5 bar | 0.55/0.75 kW | |
| GB1200 | 1200 L/h | 3.5 bar | 0.55/0.75 kW | |
| GB1500 | 1500 L/h | 3 bar | 0.75 kW | |
| GB1800 | 1800 L/h | 3 bar | 0.75 kW | |
| GB2000 | 2000 L/h | 3 bar | 0.75 kW |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
