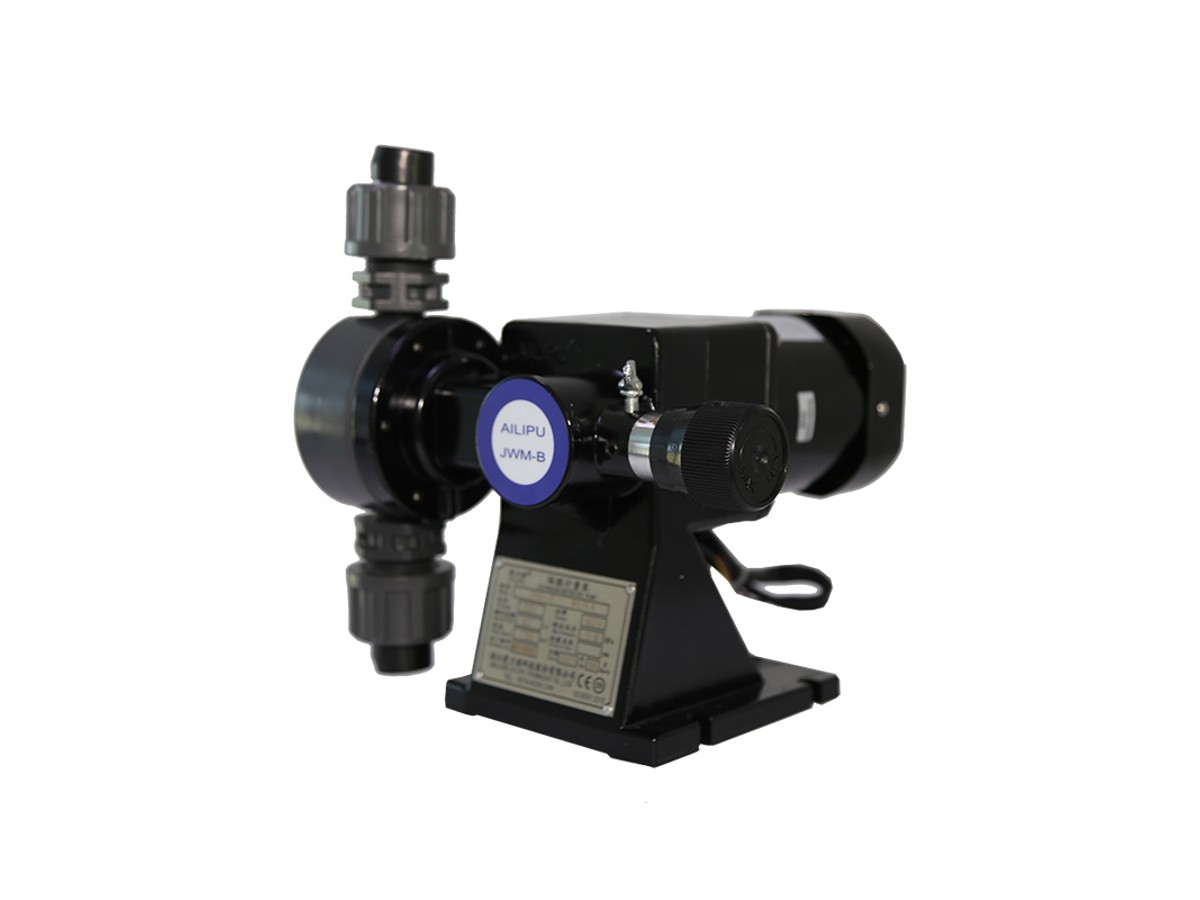

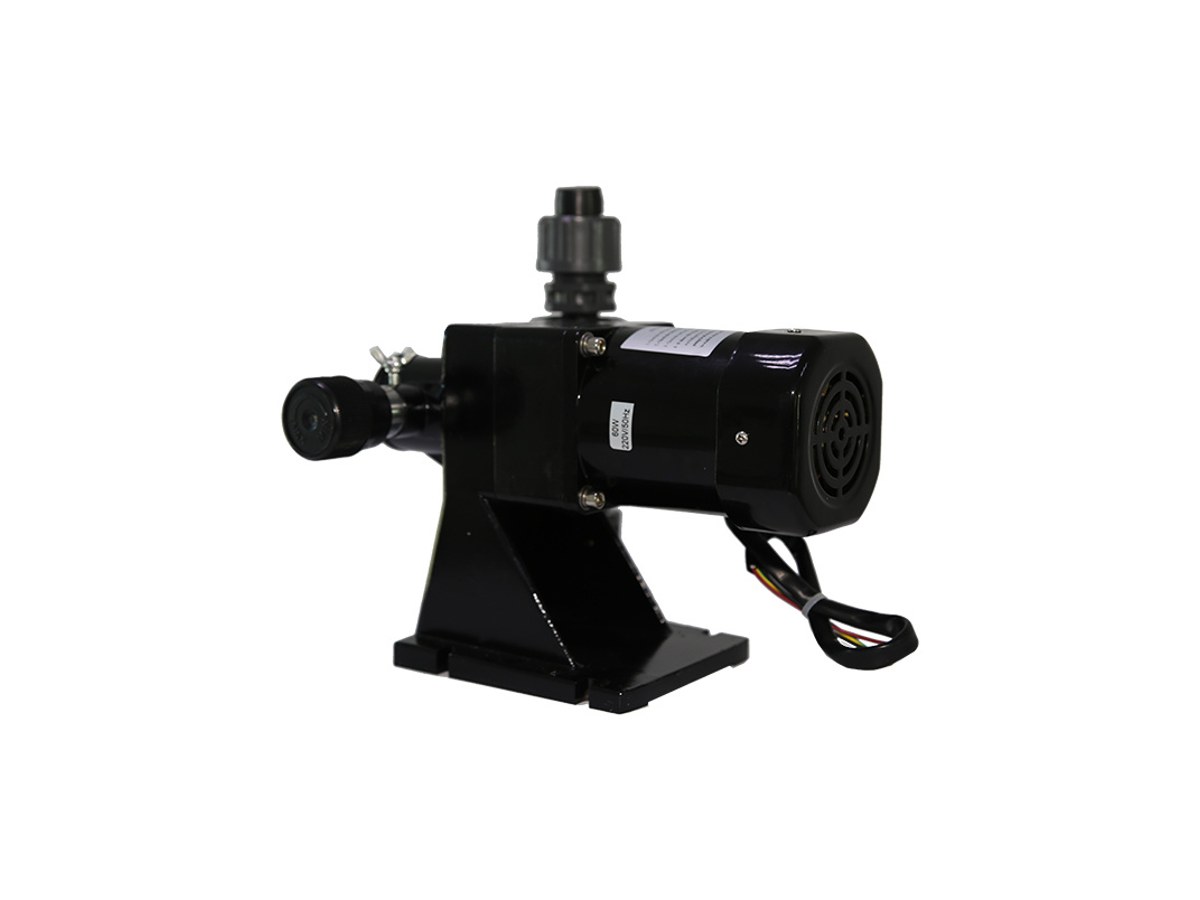

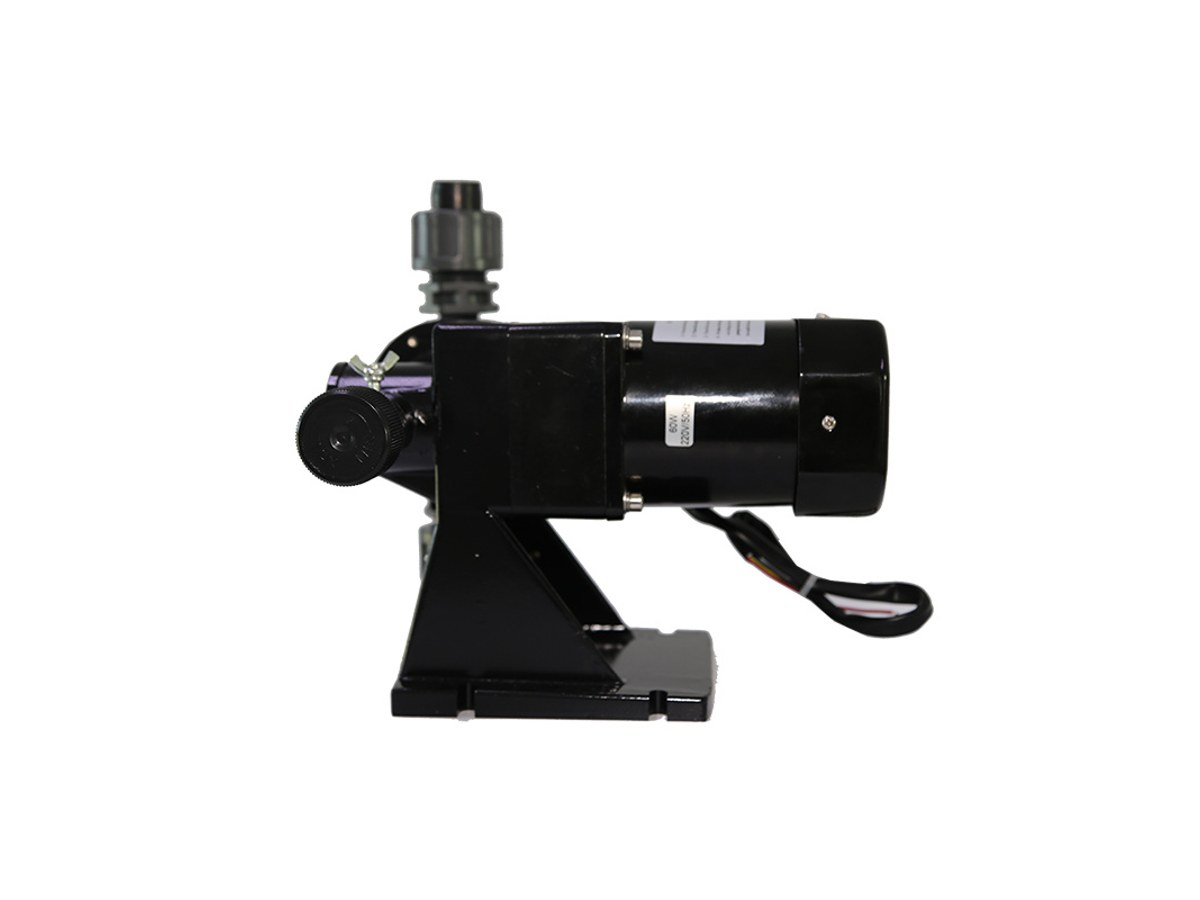

Ailipu JWM-B Mechanical Diaphragm Metering Pump

Name: Ailipu JWM-B Mechanical Diaphragm Metering Pump
Brand: Ailipu

JWM-B series. Models ~6.5 – 150 L/h, ~0.3 – 1 MPa. 0–100% adjust while running or stopped.

Max flow

6.5 – 150 L/h

Max pressure

1 MPa

Turndown / accuracy

rated accuracy ±1% (stroke 30%–100%)

Wetted materials

PVC / PVDF / PTFE / SS304 / SS316L etc. optional

Protection

—

Power

single-phase 220V or three-phase 380V (depends on model)

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Mechanical Diaphragm Pumps). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

0–100% precise adjust running/stopped
Manual and auto control options
Max. working pressure 1 MPa
Suction lift ≤3 m

Specifications

Flow range	6.5 – 150 L/h
Max pressure	1 MPa
Accuracy	rated accuracy ±1% (stroke 30%–100%)
Suction lift	≤3 m water column (mechanical diaphragm)
Liquid temp	15 – 85 °C (see range)
Viscosity	0.3 – 2000 mm²/s (incl. solids particles)
Wetted materials	PVC / PVDF / PTFE / SS304 / SS316L etc. optional
Diaphragm	PTFE or rubber composite PTFE
Adjustment	0–100% class; manual / VFD / digital or stroke controller
Power supply	single-phase 220V or three-phase 380V (depends on model)
Series flow	6.5 – 150 L/h
Series pressure	0.3 – 1 MPa
Brand	Ailipu

Applications

Municipal water

Industrial wastewater

Chemical dosing

Environmental engineering

Pharma & paper

Materials & media

Wetted materials	PVC / PVDF / PTFE / SS304 / SS316L etc. optional
Diaphragm	PTFE or rubber composite PTFE

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Adjustment

0–100% class; manual / VFD / digital or stroke controller

Models & specs

Model	Flow	Pressure	Power	Notes
JWM-B6.5/1.0	6.5 L/h	1.0 MPa	40 W	diaphragm φ65 mm; stroke 2 mm; speed 75 spm; connection ID: φ9 OD: φ15 PVC braided hose; weight approx. 7.3 kg
JWM-B12/1.0	12 L/h	1.0 MPa	40 W	diaphragm φ65 mm; stroke 2 mm; speed 135 spm; connection ID: φ9 OD: φ15 PVC braided hose; weight approx. 7.3 kg
JWM-B24/1.0	24 L/h	1.0 MPa	40 W	diaphragm φ65 mm; stroke 4 mm; speed 90 spm; connection ID: φ9 OD: φ15 PVC braided hose; weight approx. 7.3 kg
JWM-B32/1.0	32 L/h	1.0 MPa	60 W	diaphragm φ65 mm; stroke 4 mm; speed 108 spm; connection ID: φ9 OD: φ15 PVC braided hose; weight approx. 7.5 kg
JWM-B42/1.0	42 L/h	1.0 MPa	60 W	diaphragm φ65 mm; stroke 4 mm; speed 150 spm; connection ID: φ9 OD: φ15 PVC braided hose; weight approx. 7.5 kg
JWM-B60/0.6	60 L/h	0.6 MPa	60 W	diaphragm φ65 mm; stroke 5 mm; speed 150 spm; connection ID: φ9 OD: φ15 PVC braided hose; weight approx. 7.5 kg
JWM-B60/1.0	60 L/h	1.0 MPa	90 W	diaphragm φ84 mm; stroke 4 mm; speed 108 spm; connection DN15 PVC rigid pipe socket joint; weight approx. 8.5 kg
JWM-B80/0.5	80 L/h	0.5 MPa	90 W	diaphragm φ84 mm; stroke 4 mm; speed 135 spm; connection DN15 PVC rigid pipe socket joint; weight approx. 8.5 kg
JWM-B100/0.5	100 L/h	0.5 MPa	90 W	diaphragm φ84 mm; stroke 4 mm; speed 150 spm; connection DN15 PVC rigid pipe socket joint; weight approx. 8.5 kg
JWM-B120/0.5	120 L/h	0.5 MPa	90 W	diaphragm φ84 mm; stroke 5 mm; speed 150 spm; connection DN15 PVC rigid pipe socket joint; weight approx. 8.5 kg
JWM-B150/0.3	150 L/h	0.3 MPa	90 W	diaphragm φ 94 mm; stroke 5 mm; speed 150 spm; connection DN15 PVC rigid pipe socket joint; weight approx. 8.5 kg
