Mechanical Diaphragm Pumps

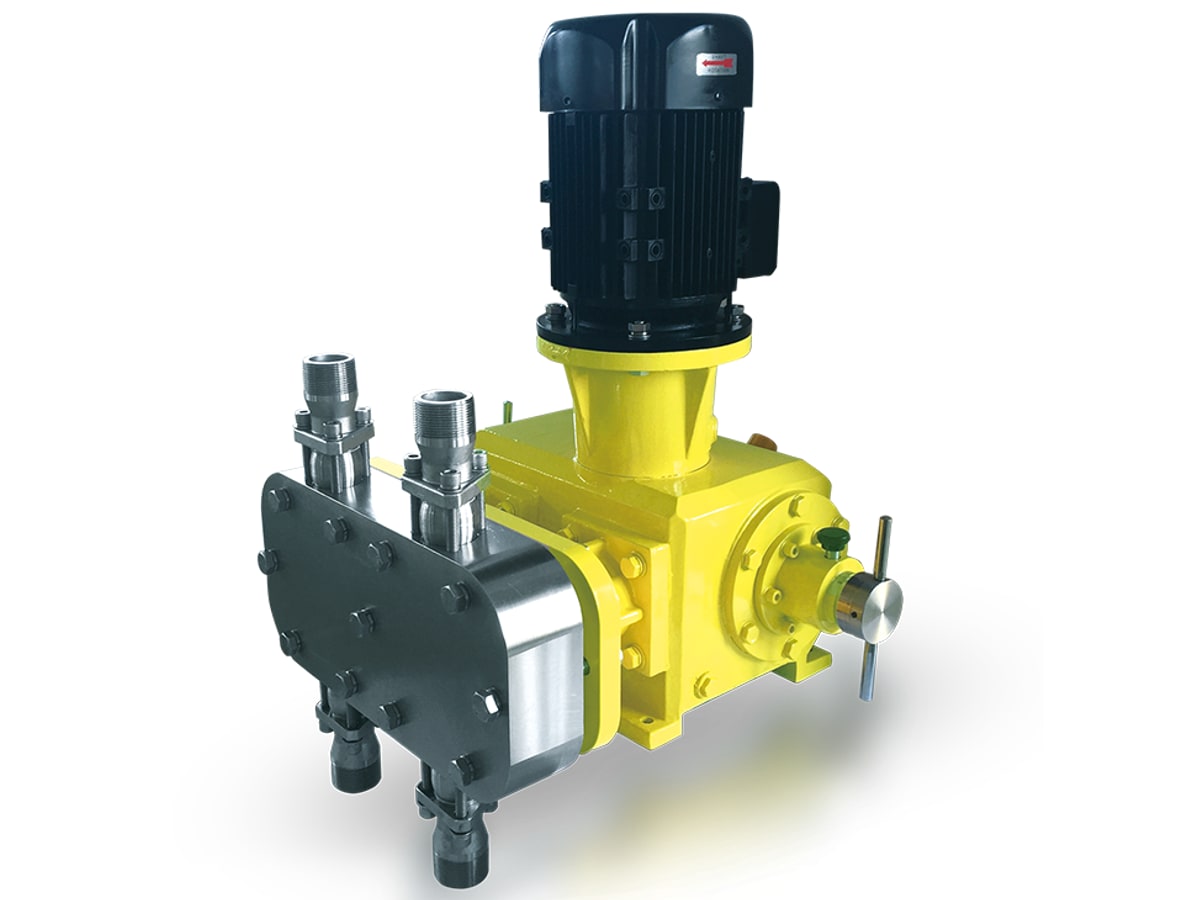

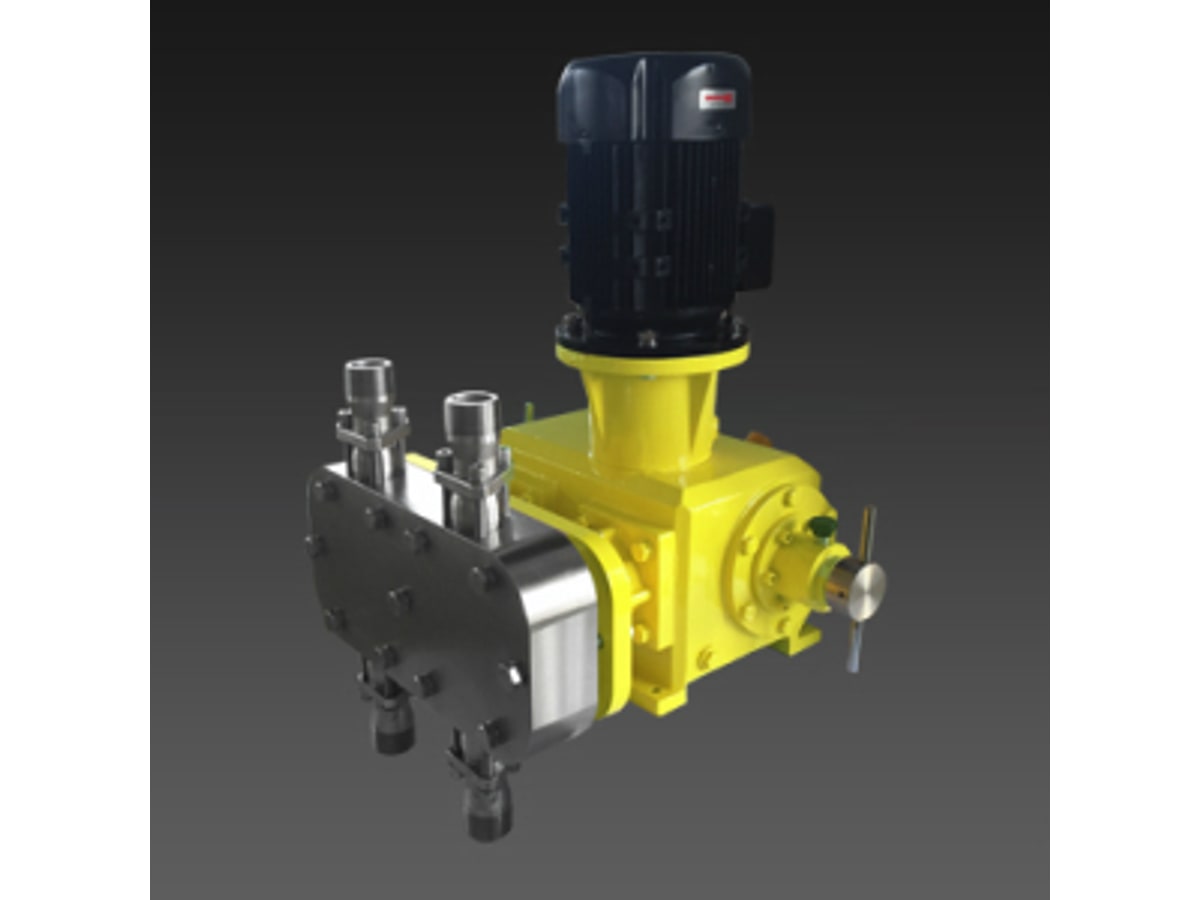

CNP 2GX Mechanical Diaphragm Metering Pump
CNP 2GX double-head. Max 4800 L/h, ≈8 bar.
Max flow
4800 L/h
Max pressure
8 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- Double-head max 4800 L/h
- ≈8 bar
- 1.5 kW
Specifications
| Max flow | 4800 L/h |
| Max pressure | 8 bar |
| Brand | CNP |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Power | Weight | Notes | |
| 2GX1800 | 1820 L/h | 8 bar | 1.5 kW | 130 kg | double head | |
| 2GX2700 | 2700 L/h | 8 bar | 1.5 kW | 130 kg | double head | |
| 2GX3600 | 3640 L/h | 6 bar | 1.5 kW | 130 kg | double head | |
| 2GX4200 | 4200 L/h | 6 bar | 1.5 kW | 130 kg | double head | |
| 2GX4800 | 4800 L/h | 5 bar | 1.5 kW | 130 kg | double head |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
