Plunger Metering Pumps
LEWA ecoflow Packed Plunger Metering Pump

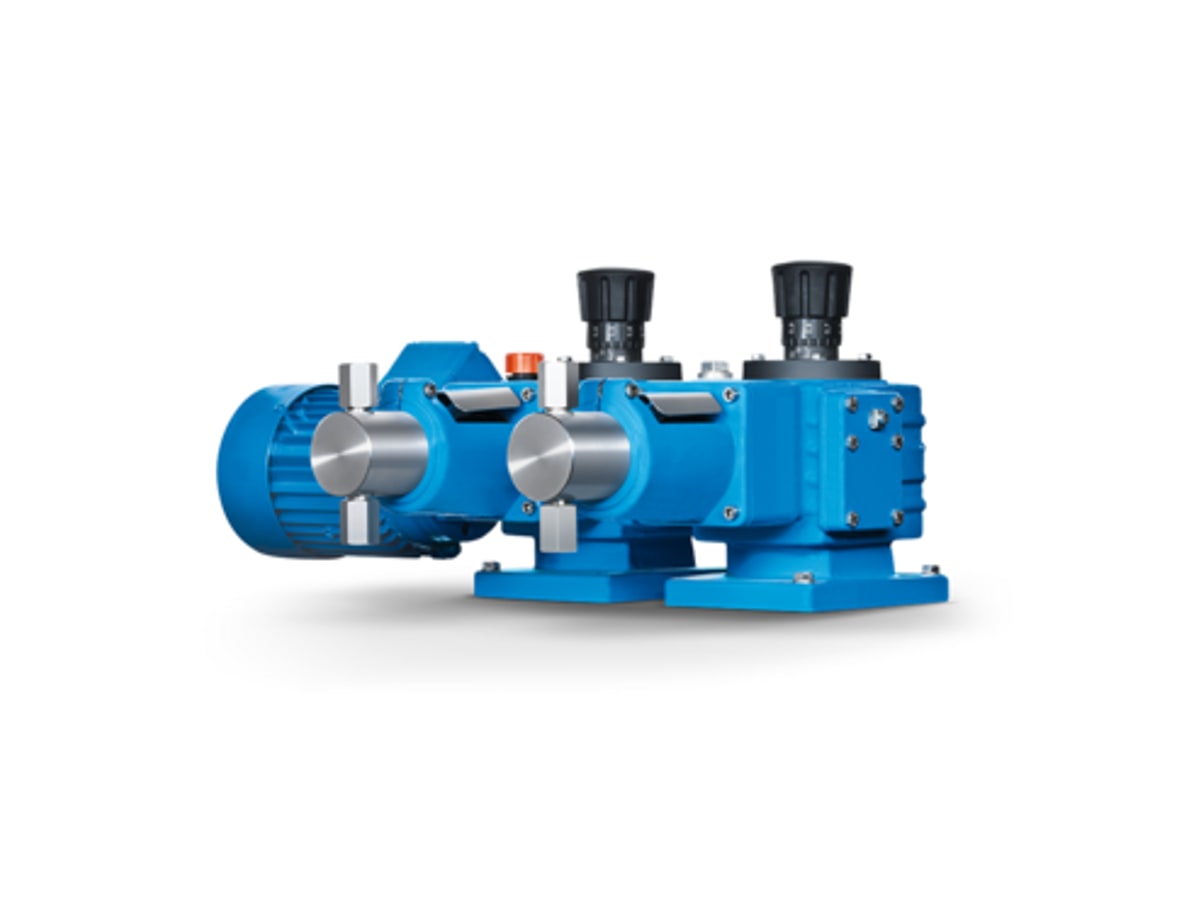

LEWA ecoflow packed plunger metering pump — modular plunger liquid end for cost-effective metering of simpler fluids. Per lewa.com: up to ~9 m³/h per head, up to ~500 bar.
Max flow
max. approx. 9 m³/h
Max pressure
max. approx. 500 bar
Turndown / accuracy
—
Wetted materials
max. approx. 9 m³/h
Protection
—
Power
—
Features
- Direct plunger displacement, proven design
- ecoflow modular drives + pump heads
- Cost-effective for non-critical simple fluids
- Electric/pneumatic stroke or VFD speed control
- Optional intellidrive servo drive
- API 675 industrial standard
Specifications
| Flow per head | max. approx. 9 m³/h |
| Discharge pressure | max. approx. 500 bar |
| Pump head example | K210/K211: 500 bar / 9 m³/h; temperature approx. -70/+400 °C; viscosity up to approx. 1,500,000 mPa·s |
| Type | plunger metering pump |
| Brand | LEWA |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Notes | |
| ecoflow plunger K210/K211 | ≤9 m³/h | ≤500 bar | All-purpose packed plunger; -70/+400 °C |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
