Plunger Metering Pumps

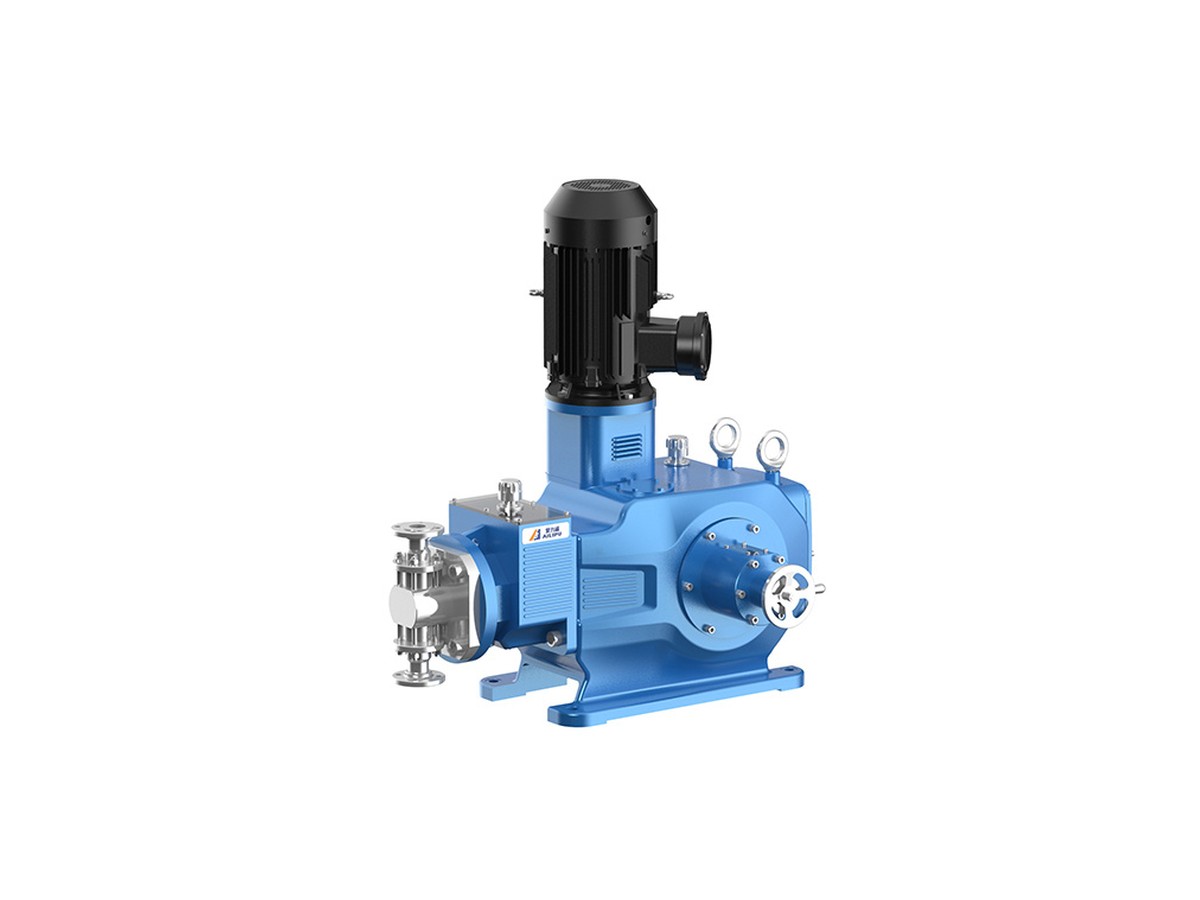

Ailipu J50 Plunger Metering Pump
J50 plunger pump (50 kN). Flow ~320 – 20000 L/h, up to ~50 MPa. Stroke 100 mm.
Max flow
320 – 20000 L/h
Max pressure
1.2 – 50 MPa
Turndown / accuracy
stroke 10%–100% accuracy ±1%
Wetted materials
SS304 / SS316L / Hastelloy / ceramic etc. (see B.3)
Protection
—
Power
—
Best for: verifying flow/pressure and control interfaces against your dosing duty (Metering Pump).
Confirm chemical compatibility and install constraints before ordering — inquire for help.
Features
- 50 kN frame
- 100 mm stroke
- Motors 15–37 kW
- Multi-head combinable
Specifications
| Type | plunger type metering pump |
| Flow range | 320 – 20000 L/h |
| Pressure range | 1.2 – 50 MPa |
| Stroke | 100 mm |
| Accuracy | stroke 10%–100% accuracy ±1% |
| Suction lift | ≤6 m (plunger) |
| Wetted materials | SS304 / SS316L / Hastelloy / ceramic etc. (see B.3) |
| Motor | Ex-proof / VFD optional |
| Standard | GB/T 7782; optional API 675 |
| Frame force | 50 kN |
| Brand | Ailipu |
Applications
Oil & petrochemical
Chemical
Power
Nuclear
Mining
Food & pharma
Materials & media
| Wetted materials | SS304 / SS316L / Hastelloy / ceramic etc. (see B.3) |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Power | Notes | |
| J50-320/50 | 320 L/h | 50 MPa | 15 kW | plunger φ25 mm; stroke 100 mm; speed 120 spm; connection DN25 | |
| J50-380/50 | 380 L/h | 50 MPa | 18.5 kW | plunger φ25 mm; stroke 100 mm; speed 144 spm; connection DN25 | |
| J50-500/50 | 500 L/h | 50 MPa | 22 kW | plunger φ32 mm; stroke 100 mm; speed 120 spm; connection DN25 | |
| J50-600/50 | 600 L/h | 50 MPa | 30 kW | plunger φ32 mm; stroke 100 mm; speed 144 spm; connection DN25 | |
| J50-650/40 | 650 L/h | 40 MPa | 22 kW | plunger φ36 mm; stroke 100 mm; speed 120 spm; connection DN25 | |
| J50-800/40 | 800 L/h | 40 MPa | 30 kW | plunger φ40 mm; stroke 100 mm; speed 120 spm; connection DN25 | |
| J50-800/32 | 800 L/h | 32 MPa | 22 kW | plunger φ40 mm; stroke 100 mm; speed 120 spm; connection DN25 | |
| J50-1000/32 | 1000 L/h | 32 MPa | 30 kW | plunger φ40 mm; stroke 100 mm; speed 144 spm; connection DN25 | |
| J50-1000/25 | 1000 L/h | 25 MPa | 22 kW | plunger φ40 mm; stroke 100 mm; speed 144 spm; connection DN25 | |
| J50-1250/25 | 1250 L/h | 25 MPa | 30 kW | plunger φ50 mm; stroke 100 mm; speed 120 spm; connection DN32 | |
| J50-1250/20 | 1250 L/h | 20 MPa | 22 kW | plunger φ50 mm; stroke 100 mm; speed 120 spm; connection DN32 | |
| J50-1500/20 | 1500 L/h | 20 MPa | 30 kW | plunger φ50 mm; stroke 100 mm; speed 144 spm; connection DN32 | |
| J50-1500/16 | 1500 L/h | 16 MPa | 22 kW | plunger φ50 mm; stroke 100 mm; speed 144 spm; connection DN32 | |
| J50-2000/16 | 2000 L/h | 16 MPa | 30 kW | plunger φ63 mm; stroke 100 mm; speed 120 spm; connection DN40 | |
| J50-2000/12.5 | 2000 L/h | 12.5 MPa | 22 kW | plunger φ63 mm; stroke 100 mm; speed 120 spm; connection DN40 | |
| J50-2500/12.5 | 2500 L/h | 12.5 MPa | 30 kW | plunger φ63 mm; stroke 100 mm; speed 144 spm; connection DN40 | |
| J50-2500/10 | 2500 L/h | 10 MPa | 22 kW | plunger φ63 mm; stroke 100 mm; speed 144 spm; connection DN40 | |
| J50-3200/10 | 3200 L/h | 10 MPa | 30 kW | plunger φ80 mm; stroke 100 mm; speed 120 spm; connection DN50 | |
| J50-3200/8 | 3200 L/h | 8 MPa | 22 kW | plunger φ80 mm; stroke 100 mm; speed 120 spm; connection DN50 | |
| J50-4000/8 | 4000 L/h | 8 MPa | 30 kW | plunger φ80 mm; stroke 100 mm; speed 144 spm; connection DN50 | |
| J50-4000/6.3 | 4000 L/h | 6.3 MPa | 22 kW | plunger φ80 mm; stroke 100 mm; speed 144 spm; connection DN50 | |
| J50-5000/6.3 | 5000 L/h | 6.3 MPa | 30 kW | plunger φ100 mm; stroke 100 mm; speed 120 spm; connection DN65 | |
| J50-5000/5 | 5000 L/h | 5 MPa | 22 kW | plunger φ100 mm; stroke 100 mm; speed 120 spm; connection DN65 | |
| J50-6300/5 | 6300 L/h | 5 MPa | 30 kW | plunger φ100 mm; stroke 100 mm; speed 144 spm; connection DN65 | |
| J50-6300/4 | 6300 L/h | 4 MPa | 22 kW | plunger φ100 mm; stroke 100 mm; speed 144 spm; connection DN65 | |
| J50-8000/4 | 8000 L/h | 4 MPa | 30 kW | plunger φ125 mm; stroke 100 mm; speed 120 spm; connection DN80 | |
| J50-8000/3.2 | 8000 L/h | 3.2 MPa | 22 kW | plunger φ125 mm; stroke 100 mm; speed 120 spm; connection DN80 | |
| J50-10000/3.2 | 10000 L/h | 3.2 MPa | 30 kW | plunger φ125 mm; stroke 100 mm; speed 144 spm; connection DN80 | |
| J50-10000/2.5 | 10000 L/h | 2.5 MPa | 22 kW | plunger φ125 mm; stroke 100 mm; speed 144 spm; connection DN80 | |
| J50-12000/3.2 | 12000 L/h | 3.2 MPa | 37 kW | plunger φ140 mm; stroke 100 mm; speed 144 spm; connection DN100 | |
| J50-12000/2.5 | 12000 L/h | 2.5 MPa | 30 kW | plunger φ140 mm; stroke 100 mm; speed 144 spm; connection DN100 | |
| J50-12000/2 | 12000 L/h | 2 MPa | 22 kW | plunger φ140 mm; stroke 100 mm; speed 144 spm; connection DN100 | |
| J50-16000/2.5 | 16000 L/h | 2.5 MPa | 37 kW | plunger φ160 mm; stroke 100 mm; speed 144 spm; connection DN100 | |
| J50-16000/2 | 16000 L/h | 2 MPa | 30 kW | plunger φ160 mm; stroke 100 mm; speed 144 spm; connection DN100 | |
| J50-16000/1.5 | 16000 L/h | 1.5 MPa | 22 kW | plunger φ160 mm; stroke 100 mm; speed 144 spm; connection DN100 | |
| J50-20000/2 | 20000 L/h | 2 MPa | 37 kW | plunger φ180 mm; stroke 100 mm; speed 144 spm | |
| J50-20000/1.6 | 20000 L/h | 1.6 MPa | 30 kW | plunger φ180 mm; stroke 100 mm; speed 144 spm | |
| J50-20000/1.2 | 20000 L/h | 1.2 MPa | 22 kW | plunger φ180 mm; stroke 100 mm; speed 144 spm; connection DN125 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
Brochures / manuals / CAD / certificates are being added. Need files now? Inquire to request。
