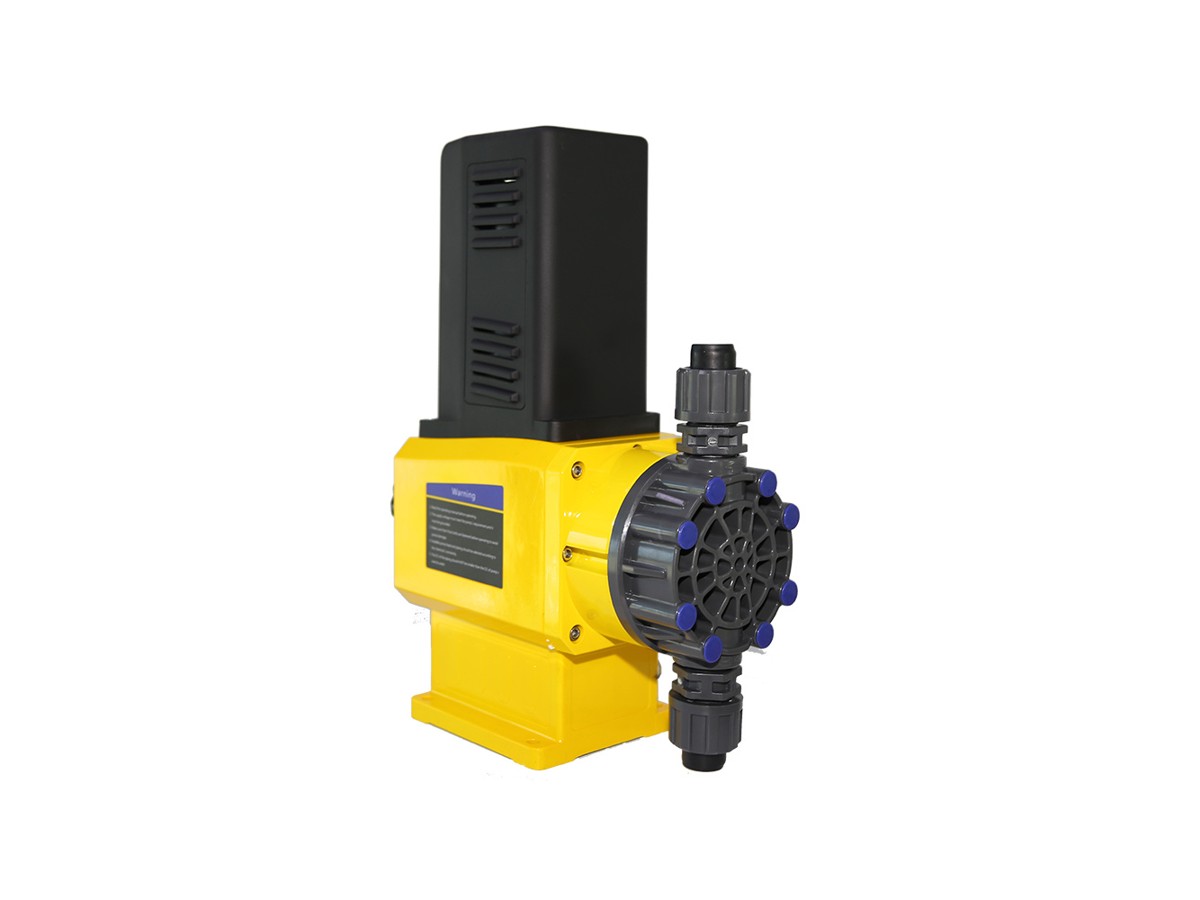

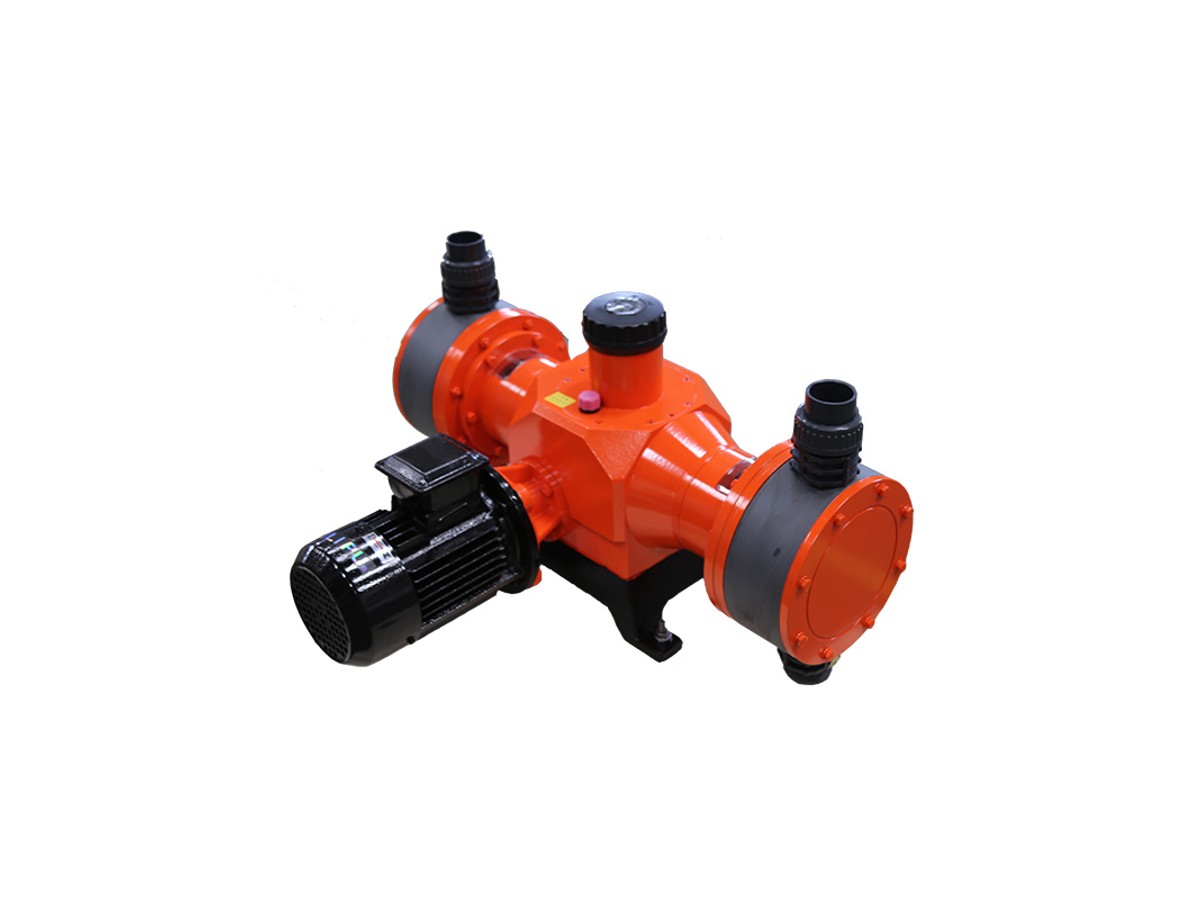

Ailipu JXM-C Mechanical Diaphragm Metering Pump
JXM-C series. Models ~240 – 500 L/h, ~0.5 – 0.7 MPa.
Max flow
240 – 500 L/h
Max pressure
0.7 MPa
Turndown / accuracy
rated accuracy ±1% (stroke 30%–100%)
Wetted materials
PVC / PVDF / PTFE / SS304 / SS316L etc. optional
Protection
—
Power
single-phase 220V or three-phase 380V (depends on model)
Features
- Higher-flow mechanical diaphragm
- Stable flow, good linearity
- Water & chemical dosing
Specifications
| Flow range | 240 – 500 L/h |
| Max pressure | 0.7 MPa |
| Accuracy | rated accuracy ±1% (stroke 30%–100%) |
| Suction lift | ≤3 m water column (mechanical diaphragm) |
| Liquid temp | 15 – 85 °C (see range) |
| Viscosity | 0.3 – 2000 mm²/s (incl. solids particles) |
| Wetted materials | PVC / PVDF / PTFE / SS304 / SS316L etc. optional |
| Diaphragm | PTFE or rubber composite PTFE |
| Adjustment | 0–100% class; manual / VFD / digital or stroke controller |
| Power supply | single-phase 220V or three-phase 380V (depends on model) |
| Series flow | 240 – 500 L/h |
| Series pressure | 0.5 – 0.7 MPa |
| Motor power | approx. 0.25 kW (220/380V) |
| Brand | Ailipu |
Applications
Materials & media
| Wetted materials | PVC / PVDF / PTFE / SS304 / SS316L etc. optional |
| Diaphragm | PTFE or rubber composite PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Adjustment | 0–100% class; manual / VFD / digital or stroke controller |
Models & specs
| Model | Flow | Pressure | Power | Notes | |
| JXM-C240/0.7 | 240 L/h | 0.7 MPa | 0.25 kW | diaphragm φ110/70 mm; stroke 8 mm; speed 144 spm; connection DN25; weight approx. 16 kg | |
| JXM-C315/0.5 | 315 L/h | 0.5 MPa | 0.25 kW | diaphragm φ116/80 mm; stroke 8 mm; speed 144 spm; connection DN25; weight approx. 16 kg | |
| JXM-C400/0.5 | 400 L/h | 0.5 MPa | 0.25 kW | diaphragm φ116/80 mm; stroke 10 mm; speed 144 spm; connection DN25; weight approx. 16 kg | |
| JXM-C500/0.5 | 500 L/h | 0.5 MPa | 0.25 kW | diaphragm φ116/80 mm; stroke 10 mm; speed 180 spm; connection DN25; weight approx. 16 kg |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
