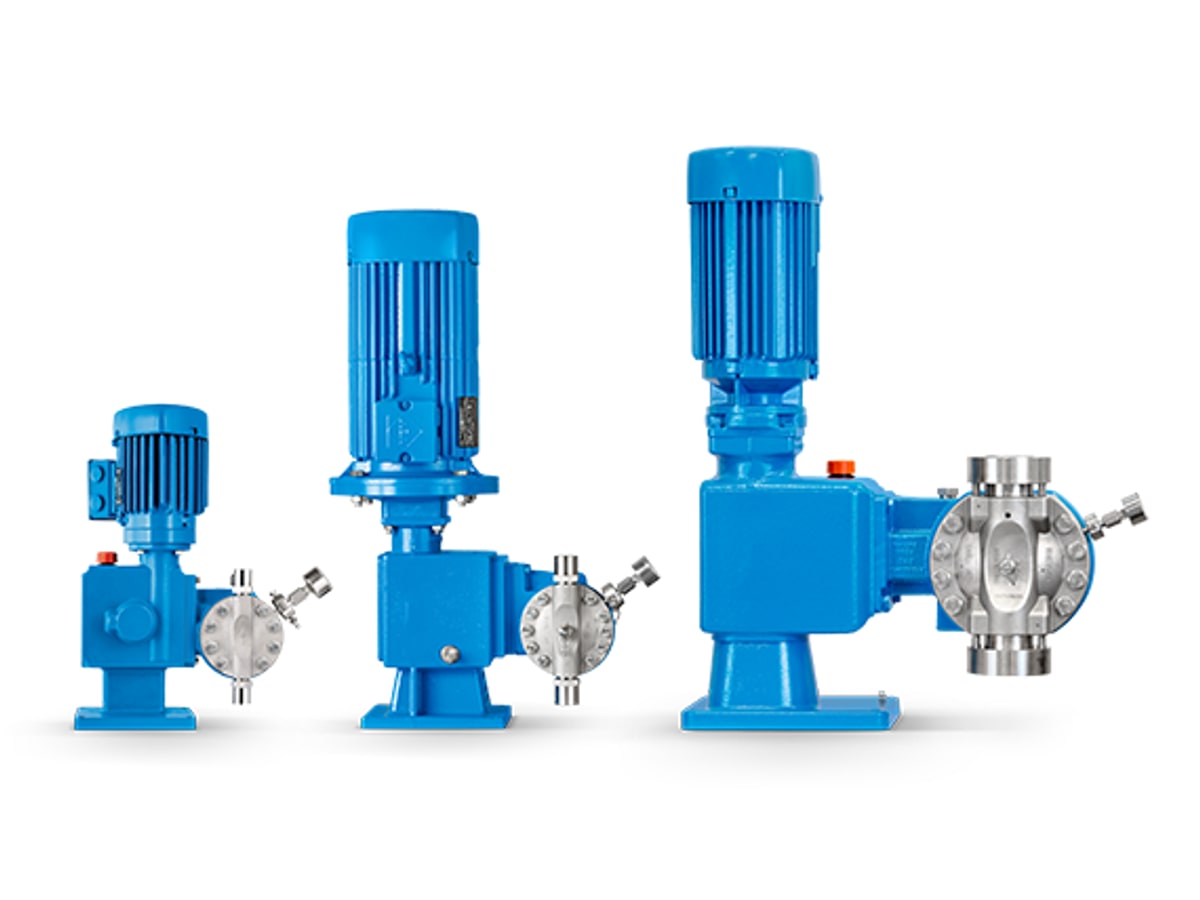

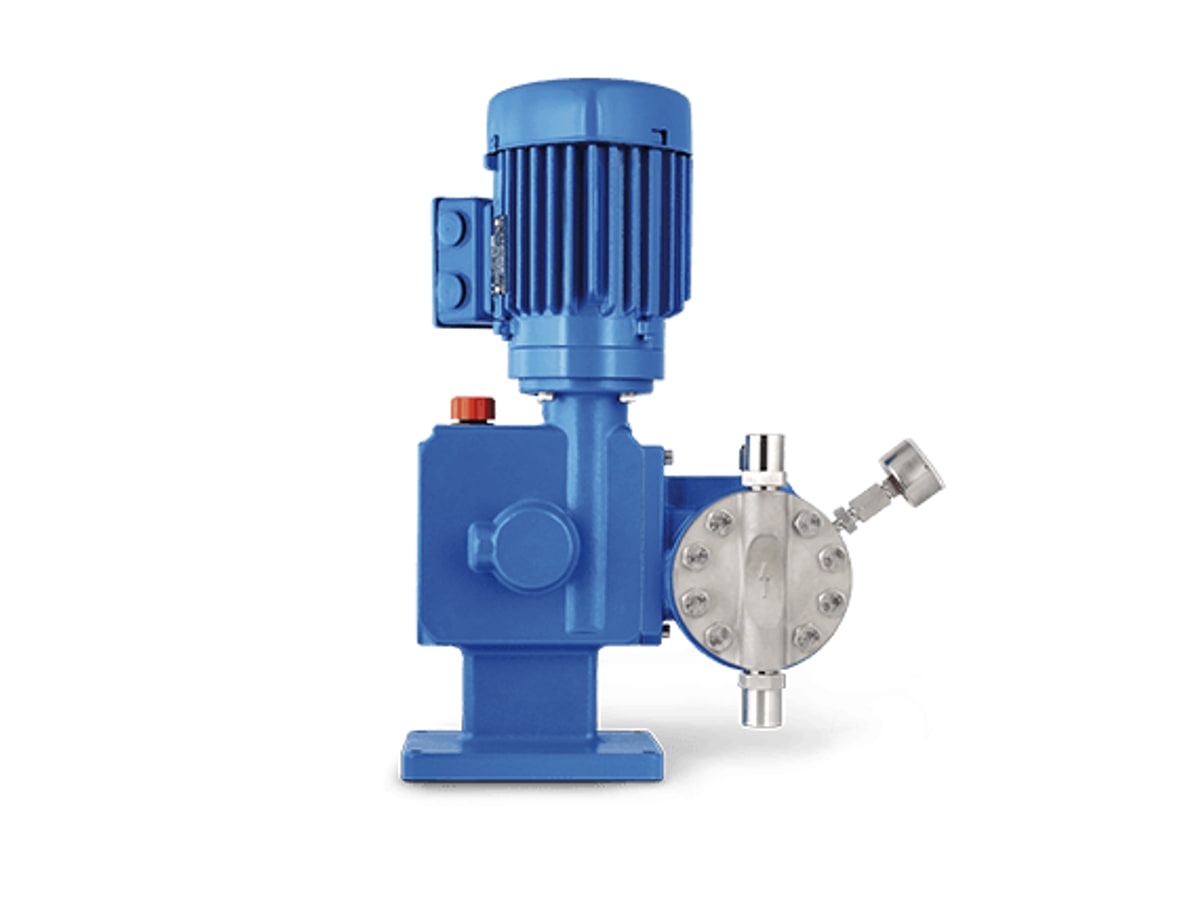

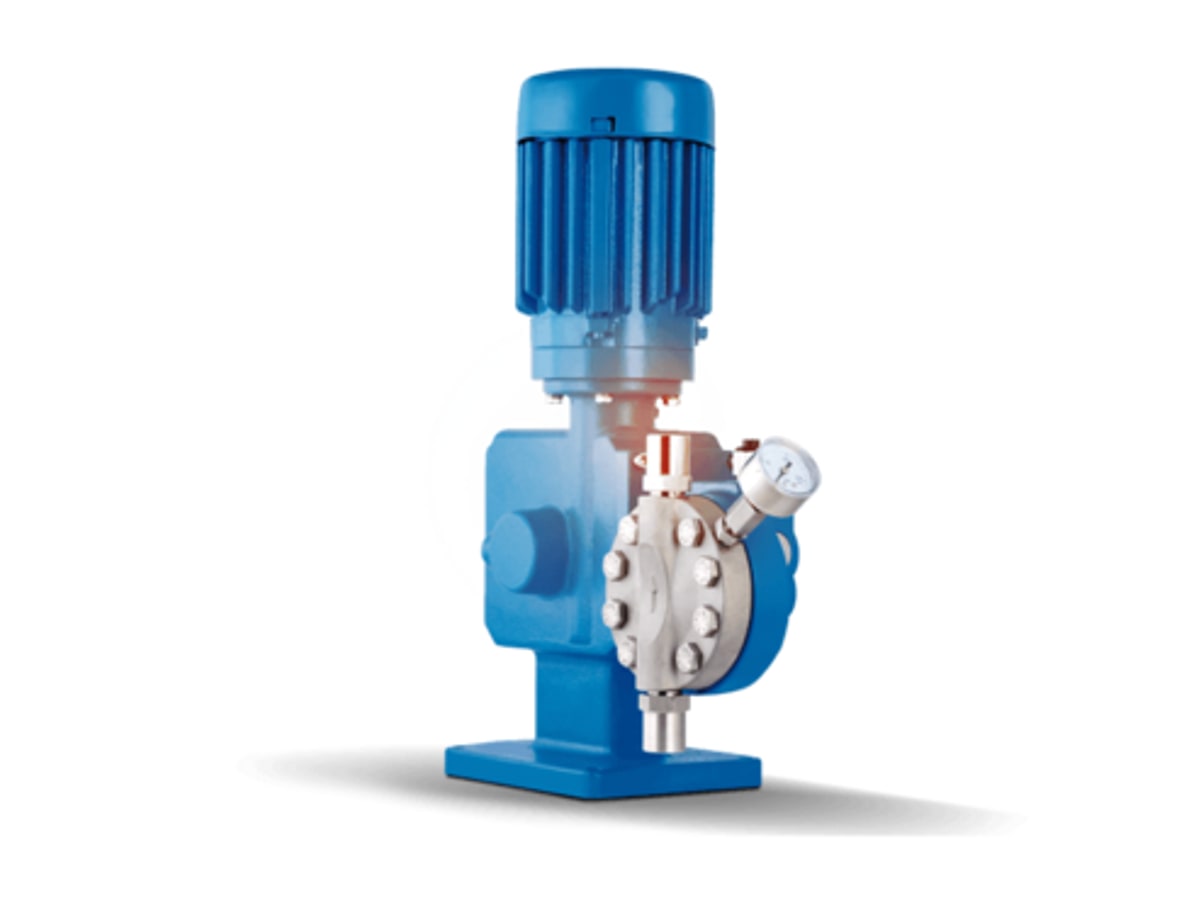

LEWA ecosmart Diaphragm Metering Pump
LEWA ecosmart compact multiplex diaphragm metering pump for cost-effective precise dosing. Per official page/D1-170: up to ~2,000 L/h per pump head; LCA up to ~80 bar (316L); M910/M930 heads with DPS.
Max flow
to 2,000 L/h / head
Max pressure
LCA to 80 bar; LCC/LCD to 50 bar (316L)
Turndown / accuracy
—
Wetted materials
1.4404 (316L) / PVC
Protection
—
Power
—
Features
- Compact multiplex diaphragm design
- Patented DPS + sandwich diaphragm monitoring
- Up to ~2,000 L/h per pump head
- LCA up to ~80 bar (316L); LCC/LCD up to ~50 bar
- Meets API 675
- Cost-effective precise / additive dosing
Specifications
| Flow | to 2,000 L/h / head |
| Pressure | LCA to 80 bar; LCC/LCD to 50 bar (316L) |
| Type | diaphragm metering pump |
| Brand | LEWA |
| Temperature | -30 – +120°C(M910) |
| Viscosity | to 100,000 mPa·s |
| Material | 1.4404 (316L) / PVC |
Applications
Materials & media
| Material | 1.4404 (316L) / PVC |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Notes | |
| LCA ø6 | 2.0–5.5 L/h | 80 bar (316L) / 12 bar (PVC) | n=80–218 rpm;D1-170 | |
| LCA ø8 | 3.6–9.9 L/h | 80 bar (316L) / 12 bar (PVC) | n=80–218 | |
| LCA ø11 | 6.8–18.6 L/h | 80 bar (316L) / 12 bar (PVC) | n=80–218 | |
| LCA ø14 | 11.1–30.2 L/h | 80 bar (316L) / 12 bar (PVC) | n=80–218 | |
| LCA ø17 | 16.3–44.5 L/h | 56 bar (316L) / 12 bar (PVC) | n=80–218 | |
| LCA ø22 | 27.4–74.6 L/h | 33 bar (316L) / 12 bar (PVC) | n=80–218 | |
| LCA ø28 | 44.3–120.8 L/h | 19 bar (316L) / 12 bar (PVC) | n=80–218 | |
| LCA ø35 | 69.3–188.8 L/h | 12 bar (316L) / 10 bar (PVC) | n=80–218 | |
| LCA ø42 | 99.8–271.8 L/h | 7 bar (316L/PVC) | n=80–218 | |
| LCC ø22 | 28.1–76.6 L/h | 50 bar (316L) / 12 bar (PVC) | n=82–224 | |
| LCC ø42 | 102.2–279.3 L/h | 19 bar (316L) / 12 bar (PVC) | n=82–224 | |
| LCC ø58 | 195.0–532.6 L/h | 9 bar | n=82–224 | |
| LCC ø82 | 389.7–1064.7 L/h | 3 bar | n=82–224 | |
| LCD ø34 | 183.0–372.6 L/h | 50 bar (316L) / 12 bar (PVC) | n=114–228 | |
| LCD ø58 | 532.6–1084.3 L/h | 16–9 bar | n=114–228 | |
| LCD ø82 | 1064.7–2167.3 L/h | 7–3 bar | n=114–228; single head up to approx. 2000 L/h class |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
