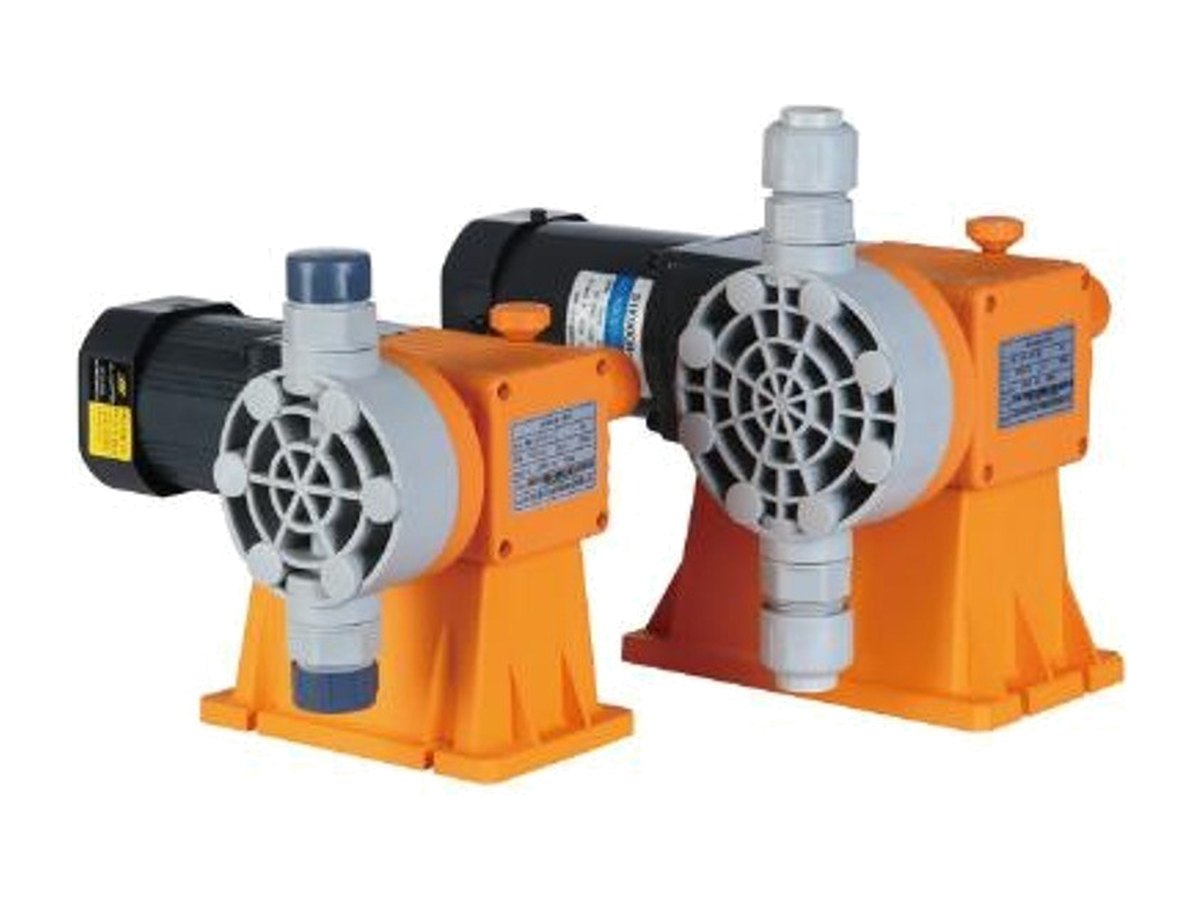

WELL-OFF WH/WL Mechanical Diaphragm Metering Pump
WELL-OFF WH/WL mechanical diaphragm pumps. 15–150 L/h, 3–7 bar, PP+PTFE, 220/380V.
Max flow
15–150 L/h
Max pressure
3–7 bar
Turndown / accuracy
—
Wetted materials
PP / PTFE
Protection
—
Power
220/380V 50/60Hz
Features
- Manual knob proportional stroke control
- 15–150 L/h, 3–7 bar
- 220/380V 50/60Hz
- PP liquid end, PTFE diaphragm
- WH 25W; WL 60/90W
Specifications
| Flow | 15–150 L/h |
| Pressure | 3–7 bar |
| Power | 220/380V 50/60Hz |
| Materials | PP / PTFE |
| Control | manual adjustment |
| Brand | WELL-OFF |
| Brand | — |
Applications
Materials & media
| Materials | PP / PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Control | manual adjustment |
Models & specs
| Model | Flow | Pressure | Power | Weight | |
| WH-15-07 | 15 L/h | 7 bar | 25 W | 5 kg | |
| WH-30-05 | 30 L/h | 5 bar | 25 W | 5 kg | |
| WH-50-03 | 50 L/h | 3 bar | 25 W | 5 kg | |
| WH-60-03 | 60 L/h | 3 bar | 25 W | 5 kg | |
| WL-60-05 | 60 L/h | 5 bar | 60 W | 8.5 kg | |
| WL-80-05 | 80 L/h | 5 bar | 60 W | 8.5 kg | |
| WL-100-05 | 100 L/h | 5 bar | 60 W | 8.5 kg | |
| WL-120-03 | 120 L/h | 3 bar | 60 W | 8.5 kg | |
| WL-150-03 | 150 L/h | 3 bar | 90 W | 8.5 kg |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
