Solenoid Diaphragm Pumps

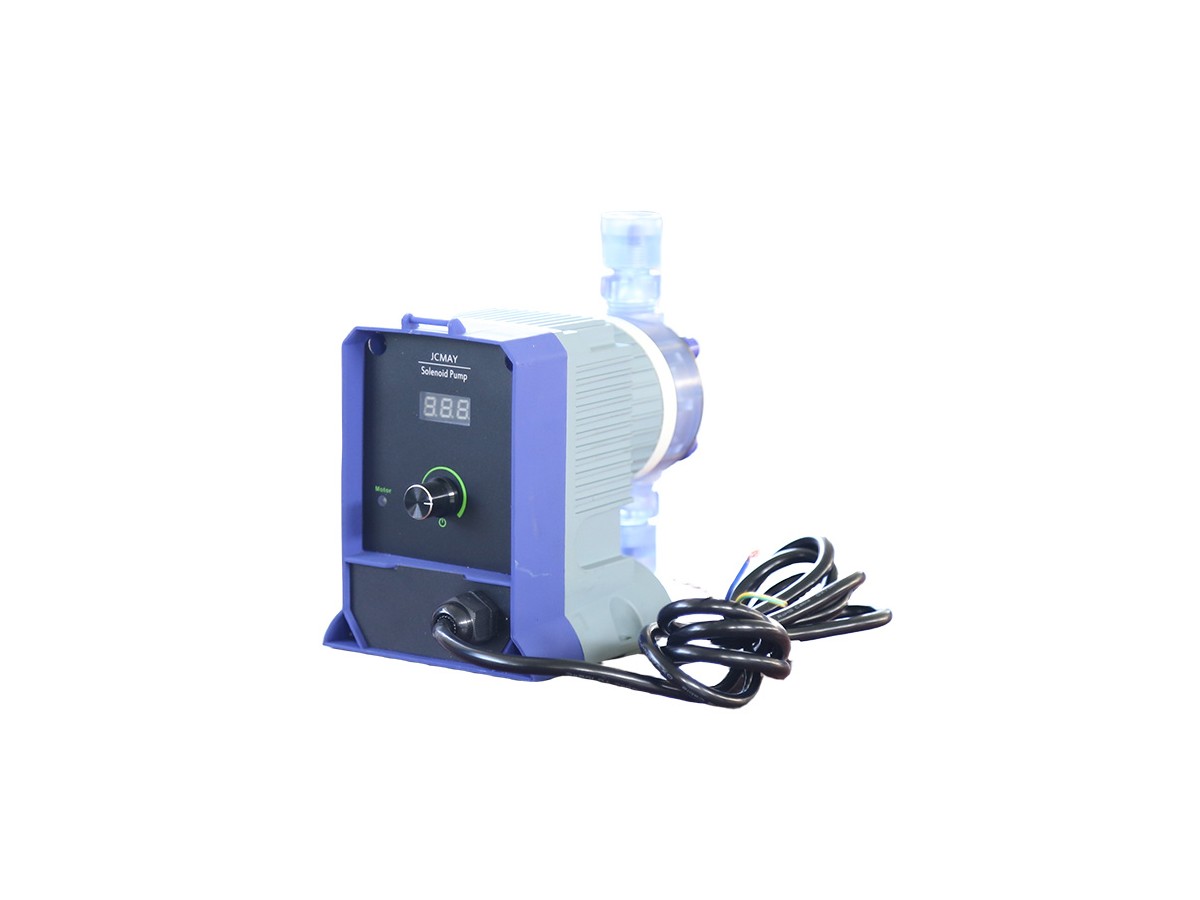

Ailipu JCMAY Solenoid Diaphragm Metering Pump
JCMAY solenoid diaphragm. Flow ~0.8–15 L/h, ~1–15 bar.
Max flow
0.8 – 15 L/h
Max pressure
1 – 15 bar
Turndown / accuracy
±1% (rated)
Wetted materials
PVC
Protection
—
Power
220V AC (see)
Features
- Solenoid drive
- Multiple heads
- PVC wetted
- Low-flow dosing
Specifications
| Drive | solenoid drive diaphragm |
| Flow range | 0.8 – 15 L/h |
| Pressure range | 1 – 15 bar |
| Accuracy | ±1% (rated) |
| Power supply | 220V AC (see) |
| Material | PVC |
| Brand | Ailipu |
Applications
Materials & media
| Material | PVC |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Notes | |
| JCMAY36-3.5/7 | 3.5 L/h | 7 bar | pipe size inside 5.5 outside 9; material PVC | |
| JCMAY36-2.5/10 | 2.5 L/h | 10 bar | pipe size inside 5.5 outside 9; material PVC | |
| JCMAY36-1.5/12 | 1.5 L/h | 12 bar | pipe size inside 5.5 outside 9; material PVC | |
| JCMAY36-0.8/15 | 0.8 L/h | 15 bar | pipe size inside 5.5 outside 9; material PVC | |
| JCMAY45-15/1 | 15 L/h | 1 bar | pipe size inside 5.5 outside 9; material PVC | |
| JCMAY45-11/2 | 11 L/h | 2 bar | pipe size inside 5.5 outside 9; material PVC | |
| JCMAY45-7/3.5 | 7 L/h | 3.5 bar | pipe size inside 5.5 outside 9; material PVC |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
