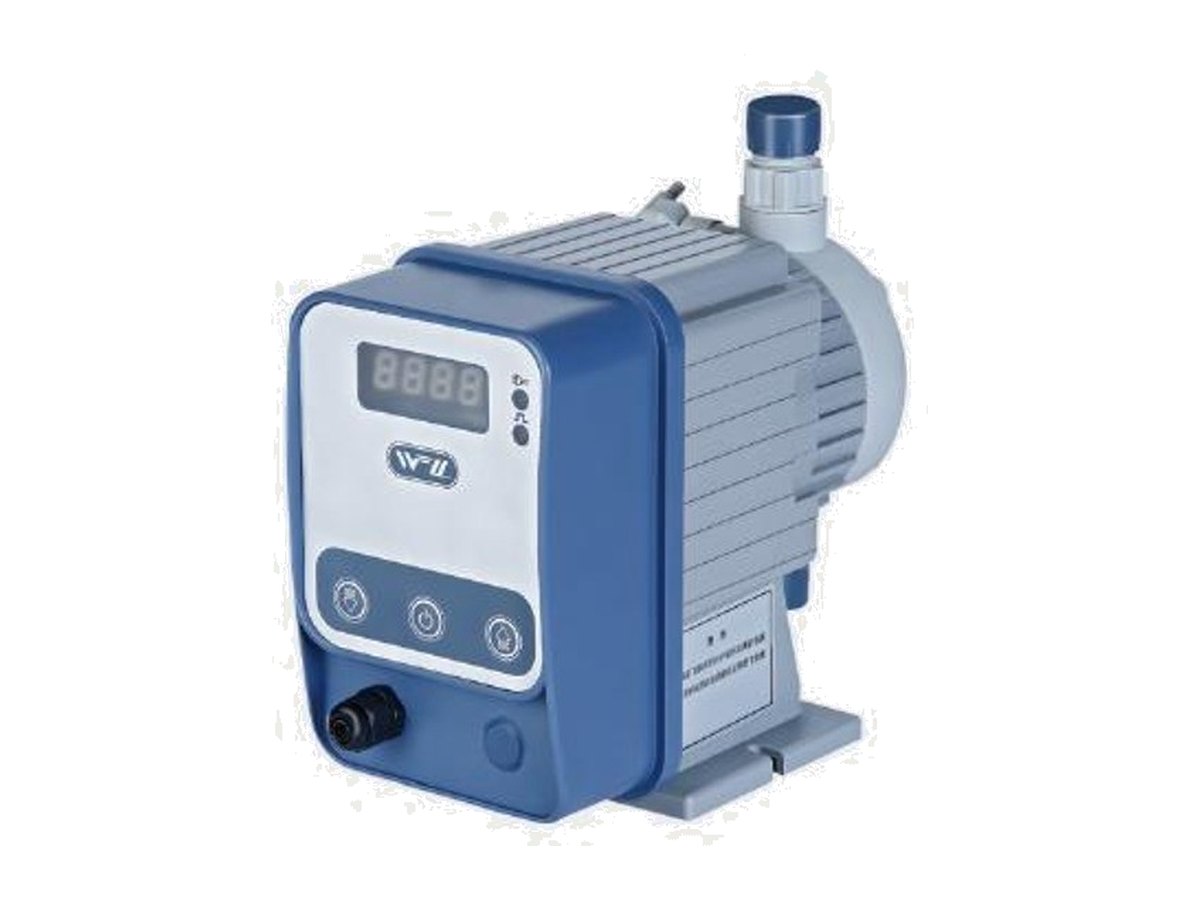

WELL-OFF WS Manual Solenoid Diaphragm Metering Pump
WELL-OFF WS manual solenoid diaphragm pump. 1–50 L/h, 1–16 bar, PP/PVDF heads, 220V.
Max flow
1–50 L/h
Max pressure
1–16 bar
Turndown / accuracy
—
Wetted materials
PP / PVDF
Protection
—
Power
220V 50/60Hz
Features
- Digital stroke frequency display
- Button frequency adjustment
- Optional level switch
- 1–50 L/h, 1–16 bar
- 220V 50/60Hz; 25/50/80W
- PP or PVDF liquid end
Specifications
| Flow | 1–50 L/h |
| Pressure | 1–16 bar |
| Power | 220V 50/60Hz |
| Head material | PP / PVDF |
| Control | manual keypad |
| Brand | WELL-OFF |
| Brand | — |
Applications
Materials & media
| Head material | PP / PVDF |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Control | manual keypad |
Models & specs
| Model | Flow | Pressure | Power | Weight | |
| WS-01-07-S | 1 L/h | 7 bar | 25 W | 2.5 kg | |
| WS-02-07-S | 2 L/h | 7 bar | 25 W | 2.5 kg | |
| WS-03-07-S | 3 L/h | 7 bar | 25 W | 2.5 kg | |
| WS-06-05-S | 6 L/h | 5 bar | 25 W | 2.5 kg | |
| WS-09-03-S | 9 L/h | 3 bar | 25 W | 2.5 kg | |
| WS-12-02-S | 12 L/h | 2 bar | 25 W | 2.5 kg | |
| WS-15-01-S | 15 L/h | 1 bar | 25 W | 2.5 kg | |
| WS-20-01-M | 20 L/h | 1 bar | 50 W | 2.7 kg | |
| WS-06-07-M | 6 L/h | 7 bar | 50 W | 3 kg | |
| WS-09-07-M | 9 L/h | 7 bar | 50 W | 3 kg | |
| WS-12-07-M | 12 L/h | 7 bar | 50 W | 3 kg | |
| WS-15-03-M | 15 L/h | 3 bar | 50 W | 3 kg | |
| WS-20-03-M | 20 L/h | 3 bar | 50 W | 3 kg | |
| WS-20-05-L | 20 L/h | 5 bar | 80 W | 5.2 kg | |
| WS-30-03-L | 30 L/h | 3 bar | 80 W | 5.2 kg | |
| WS-40-02-L | 40 L/h | 2 bar | 80 W | 5.2 kg | |
| WS-50-01-L | 50 L/h | 1 bar | 80 W | 5.2 kg |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
