Hydraulic Metering Pumps

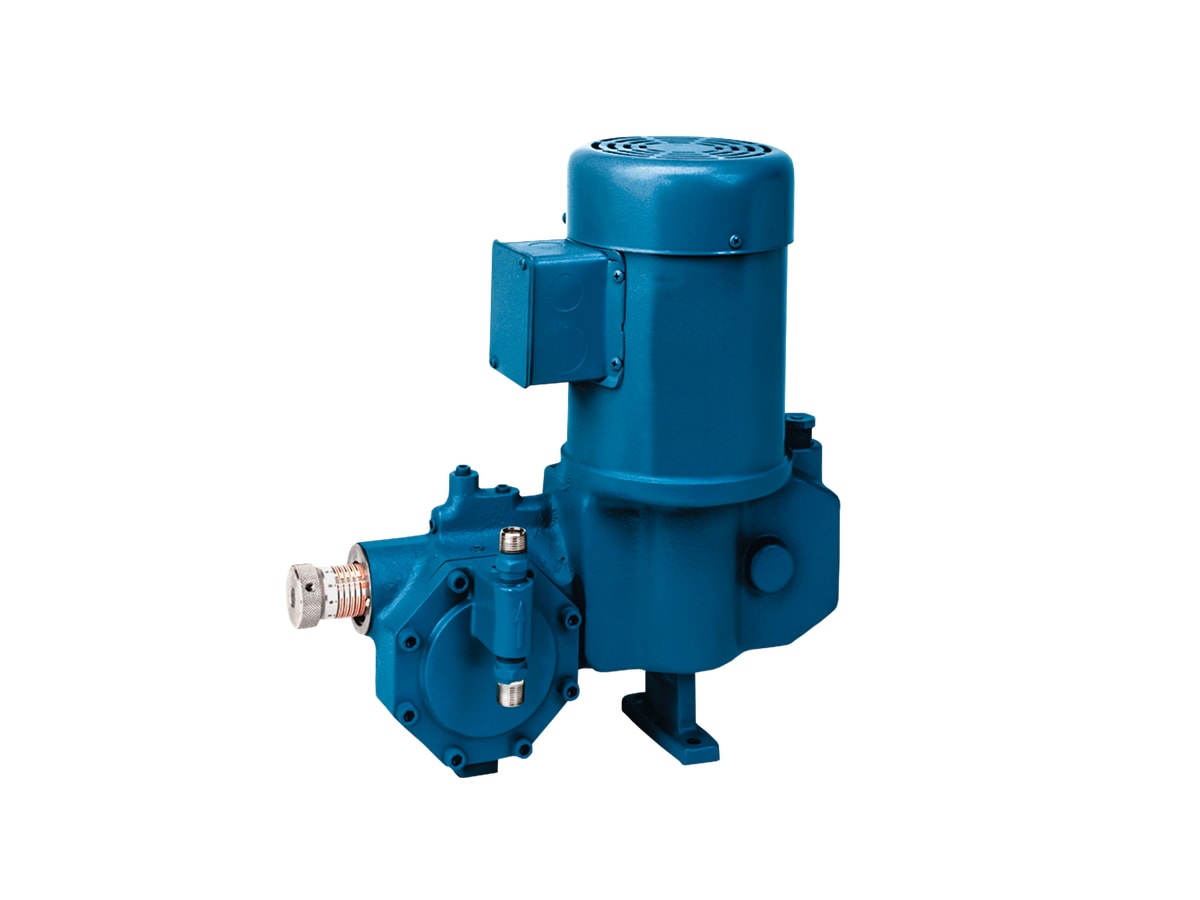

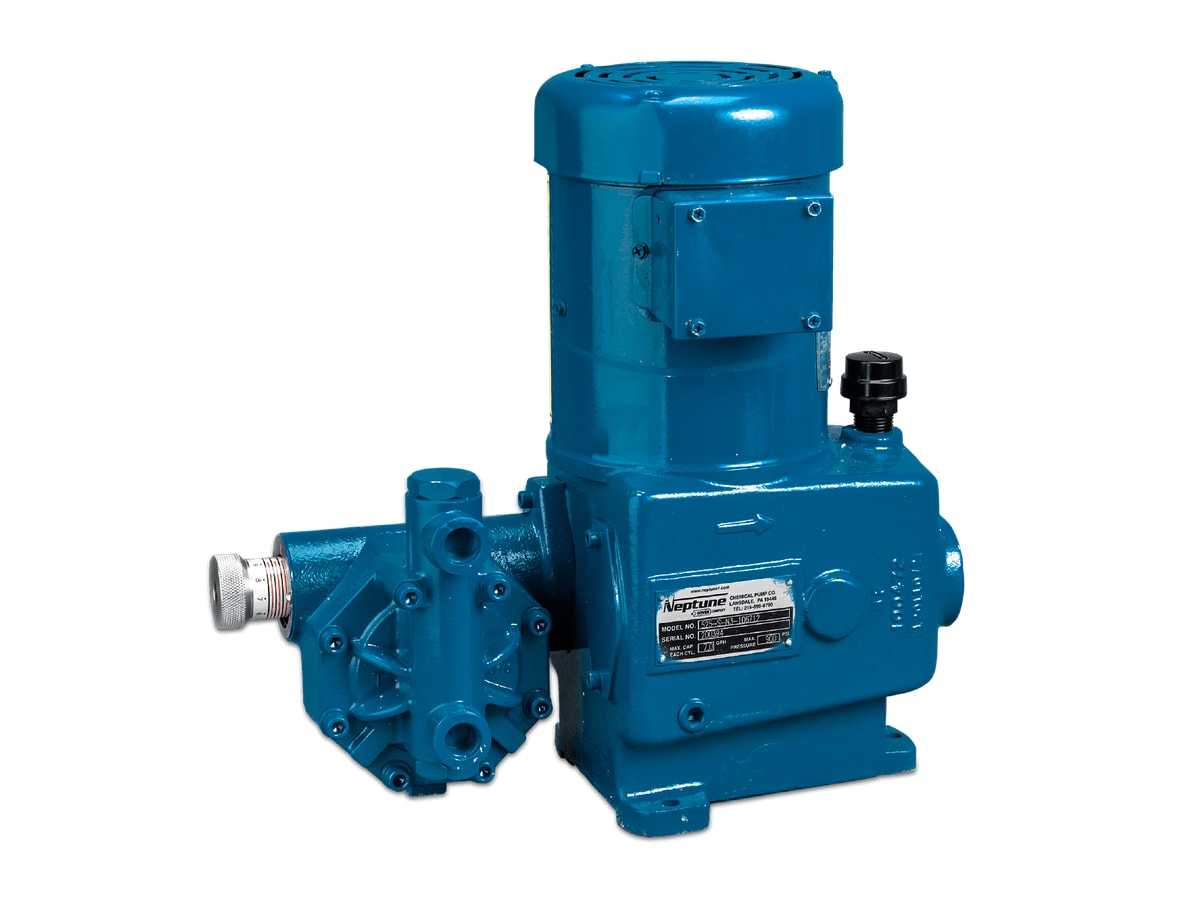

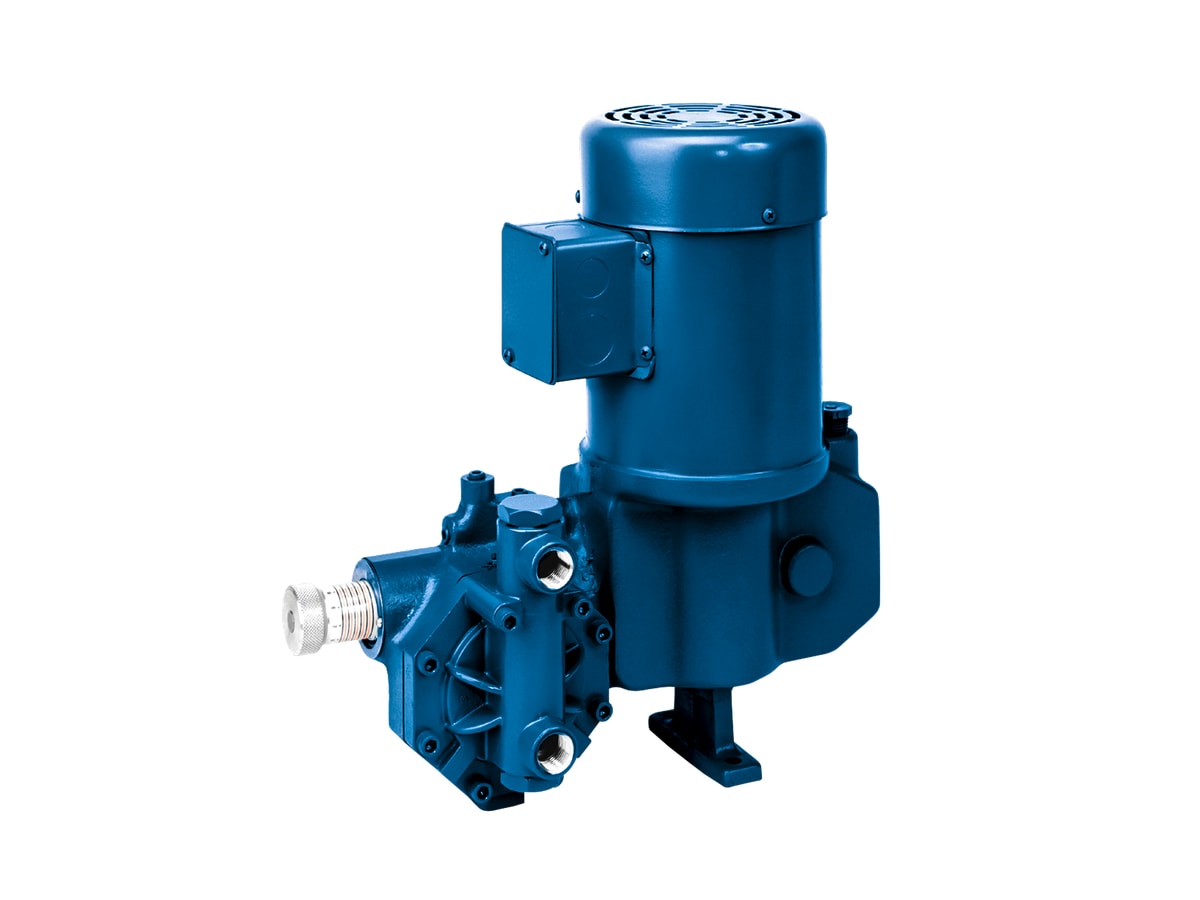

Neptune 500 Series Hydraulic Diaphragm Metering Pump
Neptune 500 hydraulic diaphragm family (500-A/S/D/E, 560). Simplex ~0.8–94 gph (3–355 L/h), up to 3,000 psi (210 bar). Oil By-Pass™, ±1% accuracy.
Max flow
approx. 3 – 355 L/h (0.8 – 94 gph, incl. 560)
Max pressure
to 210 bar / 3,000 psi (500-S high pressure motor configuration)
Turndown / accuracy
±1% (rated flow 10%–100%)
Wetted materials
316SS / C-20 / PVC / PVDF (E series); diaphragm PTFE
Protection
—
Power
—
Features
- Hydraulically balanced PTFE diaphragm
- Oil By-Pass™ variable oil stroke control

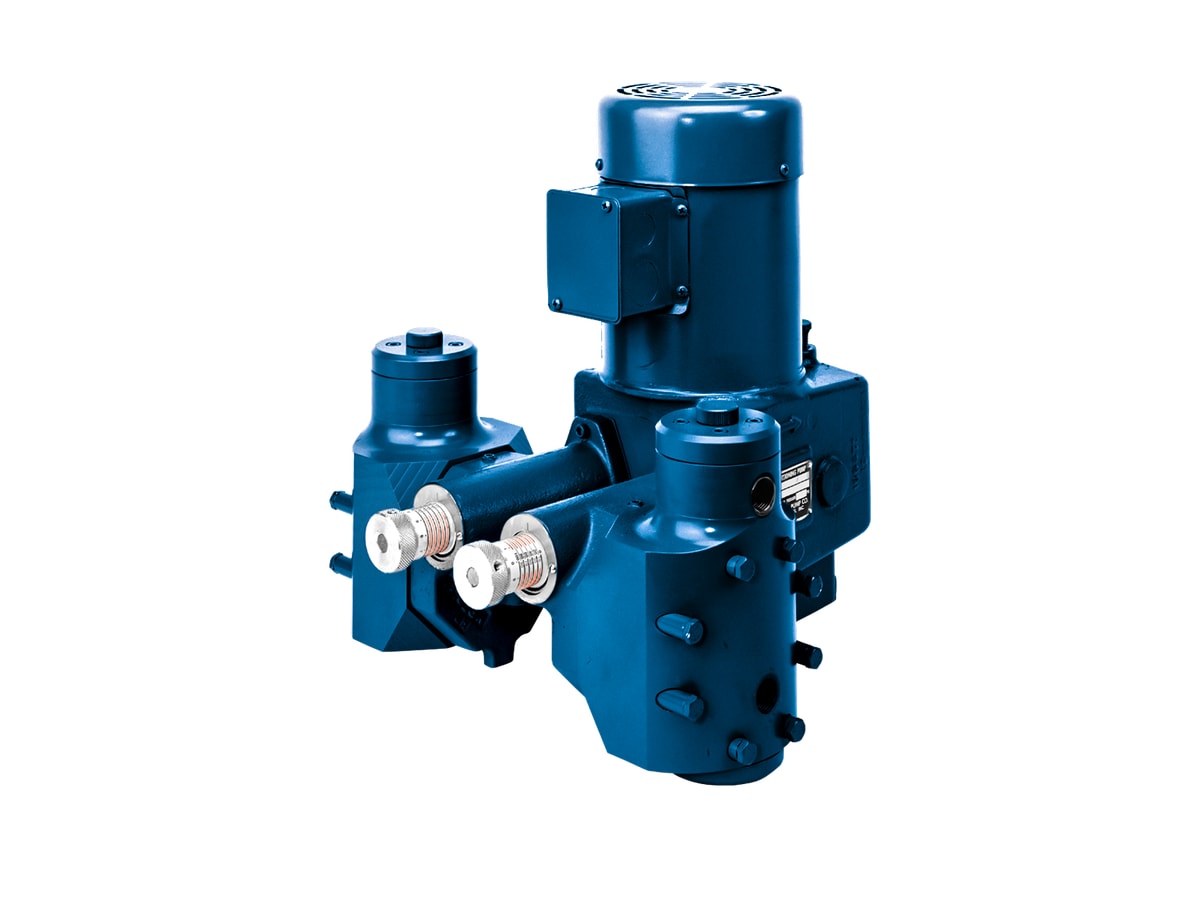

- Simplex/duplex (500-S convertible to 500-D)
- EZE-CLEAN™ cartridge valves (metal heads)
- ±1% accuracy from 10–100% of rated capacity
- Optional ESC and double-diaphragm leak detection
Specifications
| Flow (simplex) | approx. 3 – 355 L/h (0.8 – 94 gph, incl. 560) |
| Max pressure | to 210 bar / 3,000 psi (500-S high pressure motor configuration) |
| Accuracy | ±1% (rated flow 10%–100%) |
| Wetted materials | 316SS / C-20 / PVC / PVDF (E series); diaphragm PTFE |
| Drive | hydraulic diaphragm |
| Sub-series | 500-A / 500-S / 500-D / 500-E / 560 |
| Brand | Neptune (PSG Dover) |
Applications
Materials & media
| Wetted materials | 316SS / C-20 / PVC / PVDF (E series); diaphragm PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | SPM | Notes | |
| 500-A-N3/N4/N5 | 3 L/h (0.8 gph) | 70 bar / 1,000 psi(PVC 11 bar) | — | 500-A single head can double head; 37 SPM | |
| 515-A-N* | 11.3 L/h (3 gph) | 77 bar / 1,100 psi(PVC 28 bar) | 117 | ||
| 520-A-N* | 7.5 L/h (2 gph) | 49 bar / 700 psi | 37 | ||
| 522-A-N* | 15.1 L/h (4 gph) | 49 bar / 700 psi | 72 | ||
| 525-A-N* | 26.5 L/h (7 gph) | 63 bar / 900 psi | 117 | ||
| 530-A-N* | 20.8 L/h (5.5 gph) | 25 bar / 350 psi | 37 | ||
| 532-A-N* | 41.6 L/h (11 gph) | 25 bar / 350 psi | 72 | ||
| 535-A-N* | 68.1 L/h (18 gph) | 25 bar / 350 psi | 117 | ||
| 500-S-N3 | 3 L/h (0.8 gph) | to 210 bar / 3,000 psi (1/2HP) | — | can double head 500-D | |
| 515-S-N3 | 11.3 L/h (3 gph) | to 125 bar / 1,800 psi | — | ||
| 525-S-N3 | 26.5 L/h (7 gph) | to 105 bar / 1,500 psi | — | ||
| 535-S-N3 | approx. 68 L/h class | to 42 bar / 600 psi | — | selection see manual | |
| 560 series (single head) | 151 – 355 L/h (40 – 94 gph) | to 24 bar / 350 psi (PVC/PVDF 11 bar) | — | large flow 560 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
