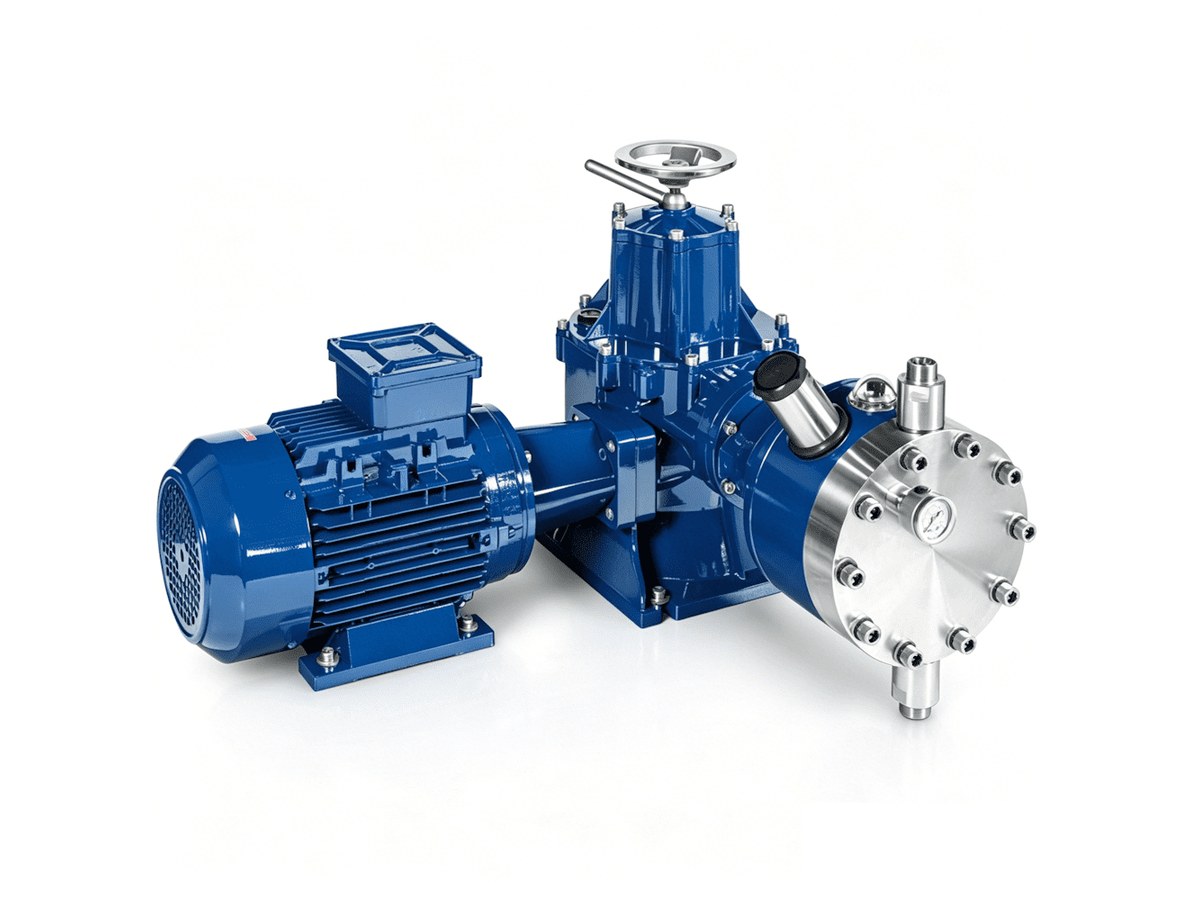

Doseuro Type SD Sandwich Hydraulic Diaphragm Metering Pump
Spring-return sandwich (double) hydraulic diaphragm pump with rupture detection use-cases. Incl. AP HP; up to ~1068 L/h / ~40 barg.
Max flow
approx. 60 – 1068 L/h
Max pressure
approx. 7.2 – 40 barg
Turndown / accuracy
—
Wetted materials
SS316L / PVC / PP / PVDF / PTFE
Protection
—
Power
—
Features
- Sandwich double diaphragm, no leakage
- Internal overpressure/relief valve
- For toxic/corrosive/hazardous media
- ATEX optional; manual/auto/RAPIDA
- AP SD high-pressure up to ~40 barg
- Wetted: SS316L, PVC, PP, PVDF, PTFE
Specifications
| Flow | approx. 60 – 1068 L/h |
| Max pressure | approx. 7.2 – 40 barg |
| Drive | spring return hydraulic diaphragm |
| Wetted parts | SS316L / PVC / PP / PVDF / PTFE |
| Control | manual / RAPIDA |
| Brand | Doseuro |
Applications
Materials & media
| Wetted parts | SS316L / PVC / PP / PVDF / PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Control | manual / RAPIDA |
Models & specs
| Model | Flow | Pressure | Notes | |
| SD 125N | 108 L/h | 13.5 barg | ||
| SD 175N | 418 L/h | 14 barg | ||
| SD 250N | 1068 L/h | 7.2 barg | high pressure can custom | |
| AP SD 125N | 60 L/h | 40 barg | AP high-pressure type | |
| AP SD 175N | 247 L/h | 40 barg | AP high-pressure type | |
| AP SD 250N | 556 L/h | 20.7 barg | AP high-pressure type |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
