Hydraulic Metering Pumps

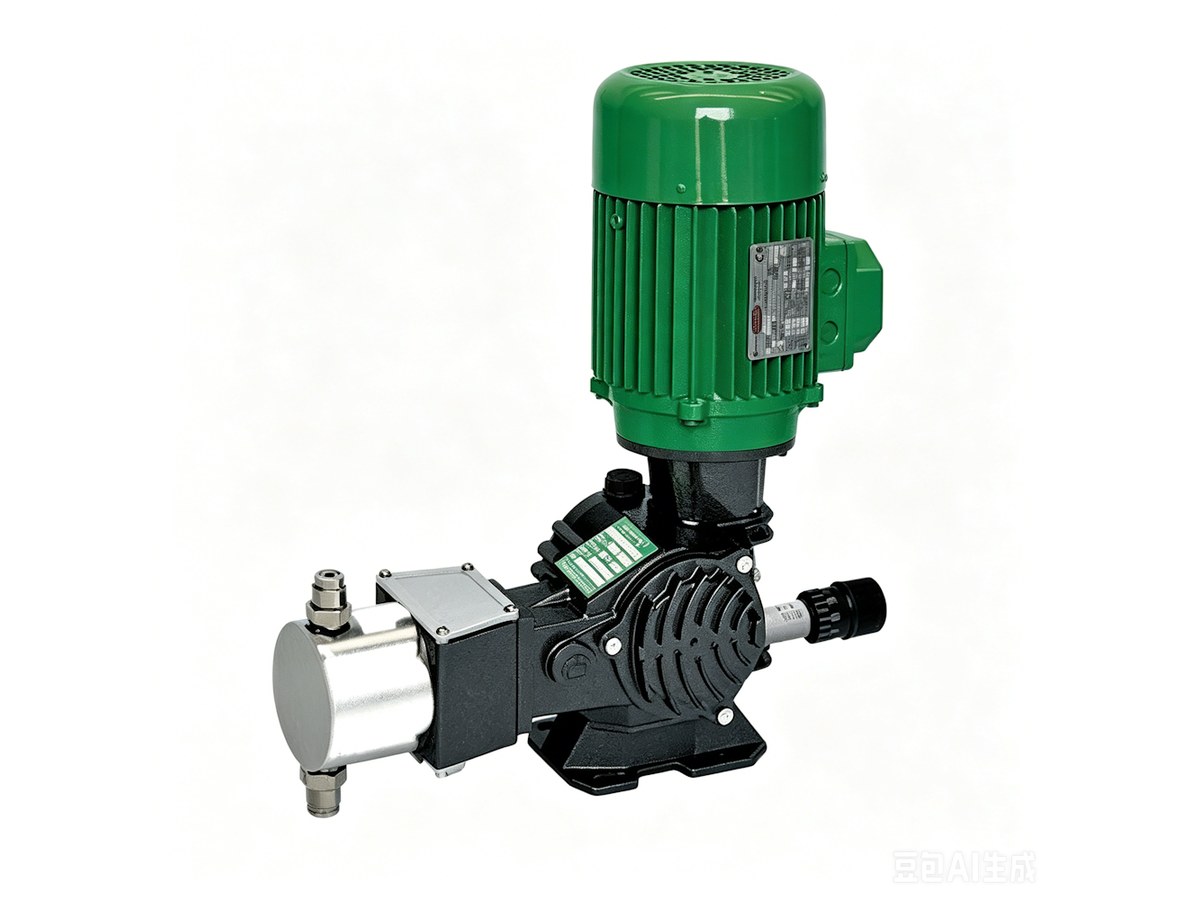

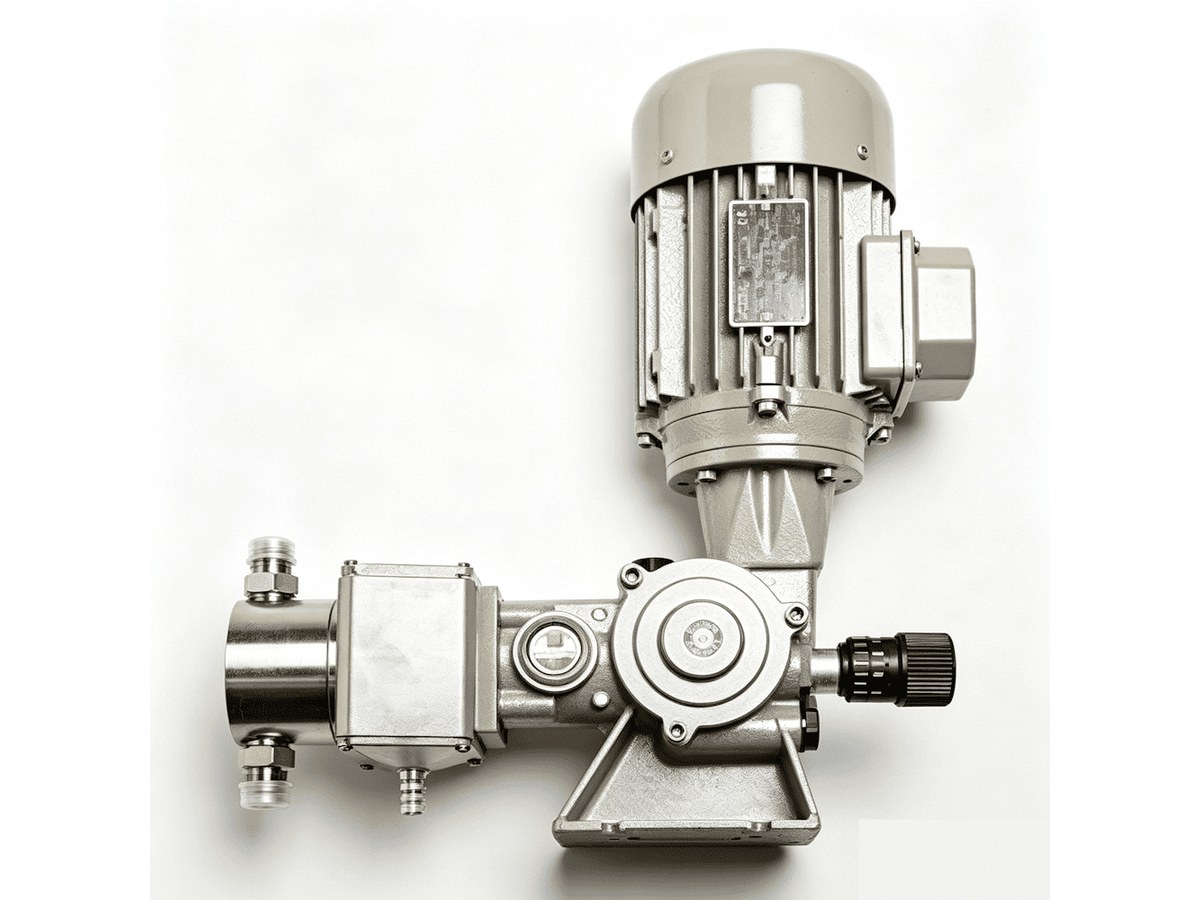

Doseuro Type B&BR Hydraulic Diaphragm Metering Pump
Spring-return hydraulic diaphragm pump (single diaphragm) for fluids with fines, toxic/corrosive media. Up to ~1068 L/h.
Max flow
approx. 108 – 1068 L/h
Max pressure
approx. 6.2 – 20 barg (depends on model)
Turndown / accuracy
—
Wetted materials
SS316L / PVC / PP / PVDF / PTFE
Protection
—
Power
—
Features
- Vertical motor + spring-return hydraulic diaphragm
- Single diaphragm, no leakage
- Handles small suspended solids
- ATEX optional; manual/auto/RAPIDA
- Wetted: SS316L, PVC, PP, PVDF, PTFE
- Higher pressures on request
Specifications
| Flow | approx. 108 – 1068 L/h |
| Max pressure | approx. 6.2 – 20 barg (depends on model) |
| Drive | spring return hydraulic diaphragm |
| Wetted parts | SS316L / PVC / PP / PVDF / PTFE |
| Control | manual / RAPIDA |
| Brand | Doseuro |
Applications
Materials & media
| Wetted parts | SS316L / PVC / PP / PVDF / PTFE |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Control | manual / RAPIDA |
Models & specs
| Model | Flow | Pressure | Notes | |
| B125N | 108 L/h | 20 / 13 barg | ||
| B175N | 418 L/h | 20 / 7.8 barg | high pressure can custom | |
| B250N | 1068 L/h | 11 / 6.2 barg | high pressure can custom |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
Related / accessories

Pump
Doseuro Type SD Sandwich Hydraulic Diaphragm Metering Pump

Pump

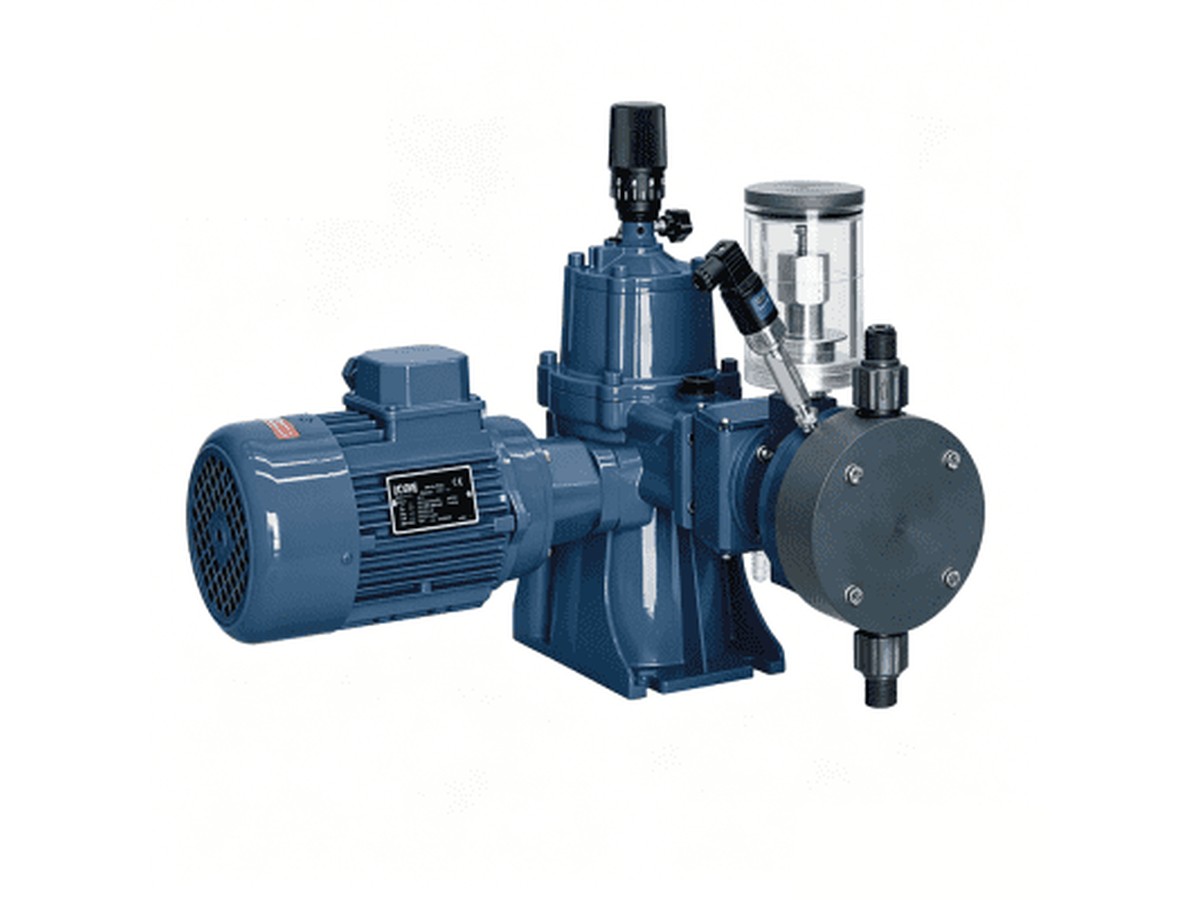

Doseuro Type SDI Positive Return Sandwich Hydraulic Diaphragm Pump

Pump
Doseuro Type MR I High Pressure Sandwich Hydraulic Diaphragm Pump

Pump

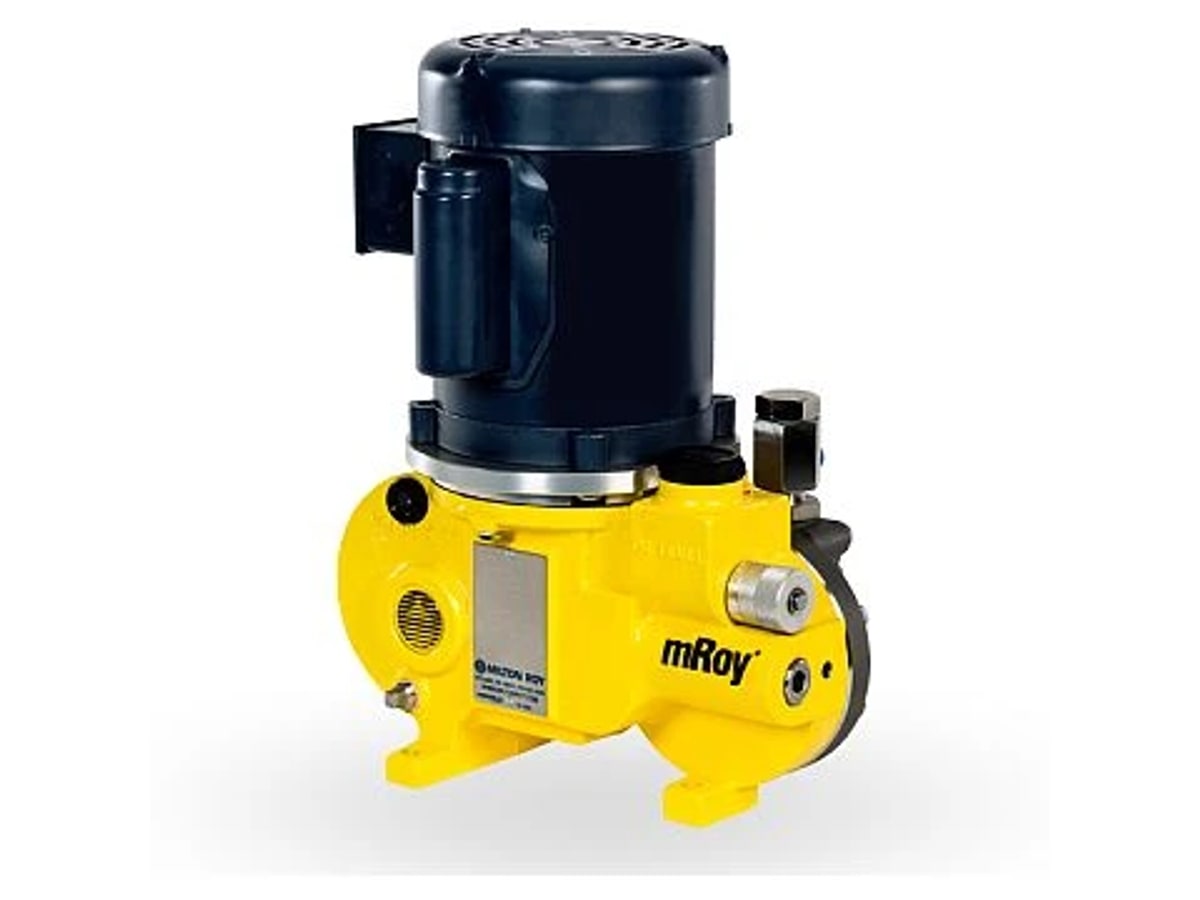

Milton Roy mRoy A & B Series Hydraulic Diaphragm Metering Pump

Pump

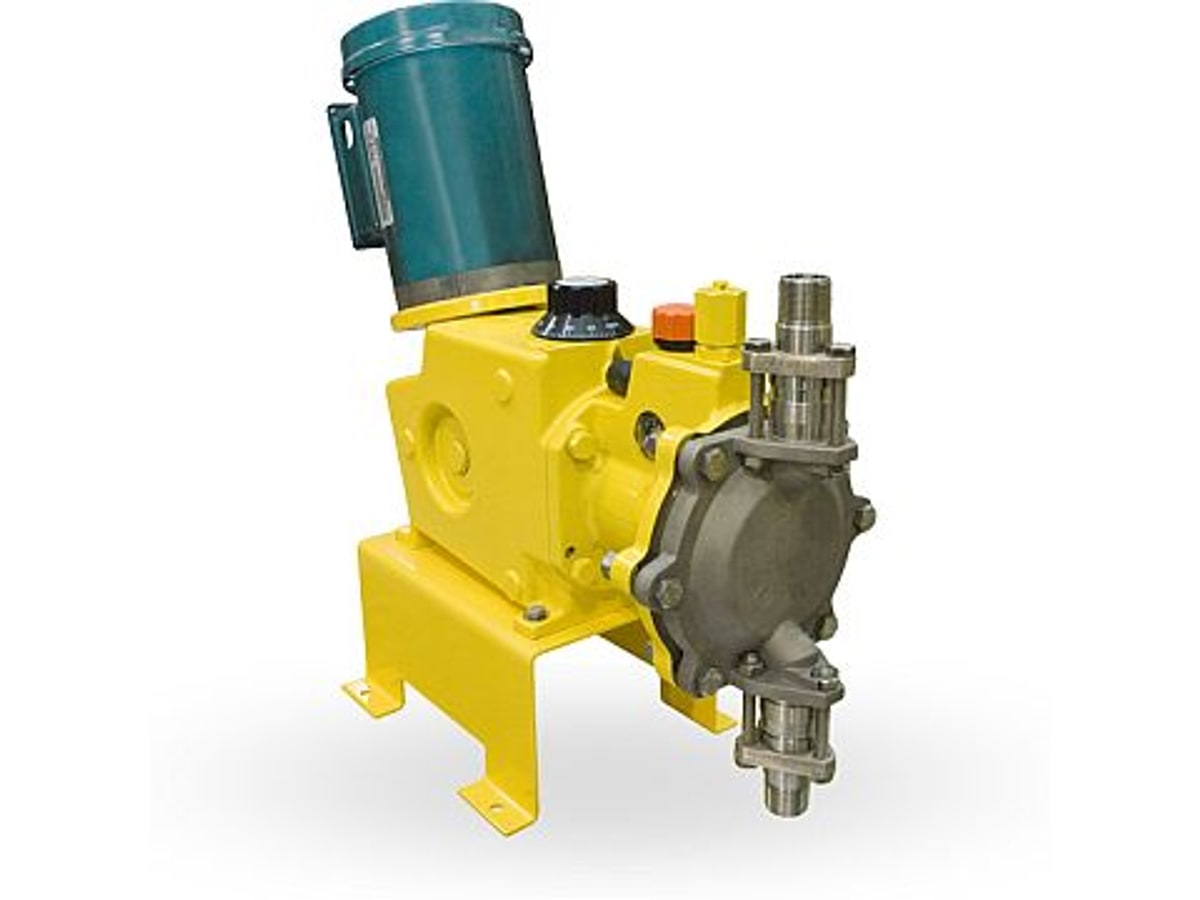

Milton Roy MAXROY Series Industrial Hydraulic Diaphragm Metering Pump
