Hydraulic Metering Pumps

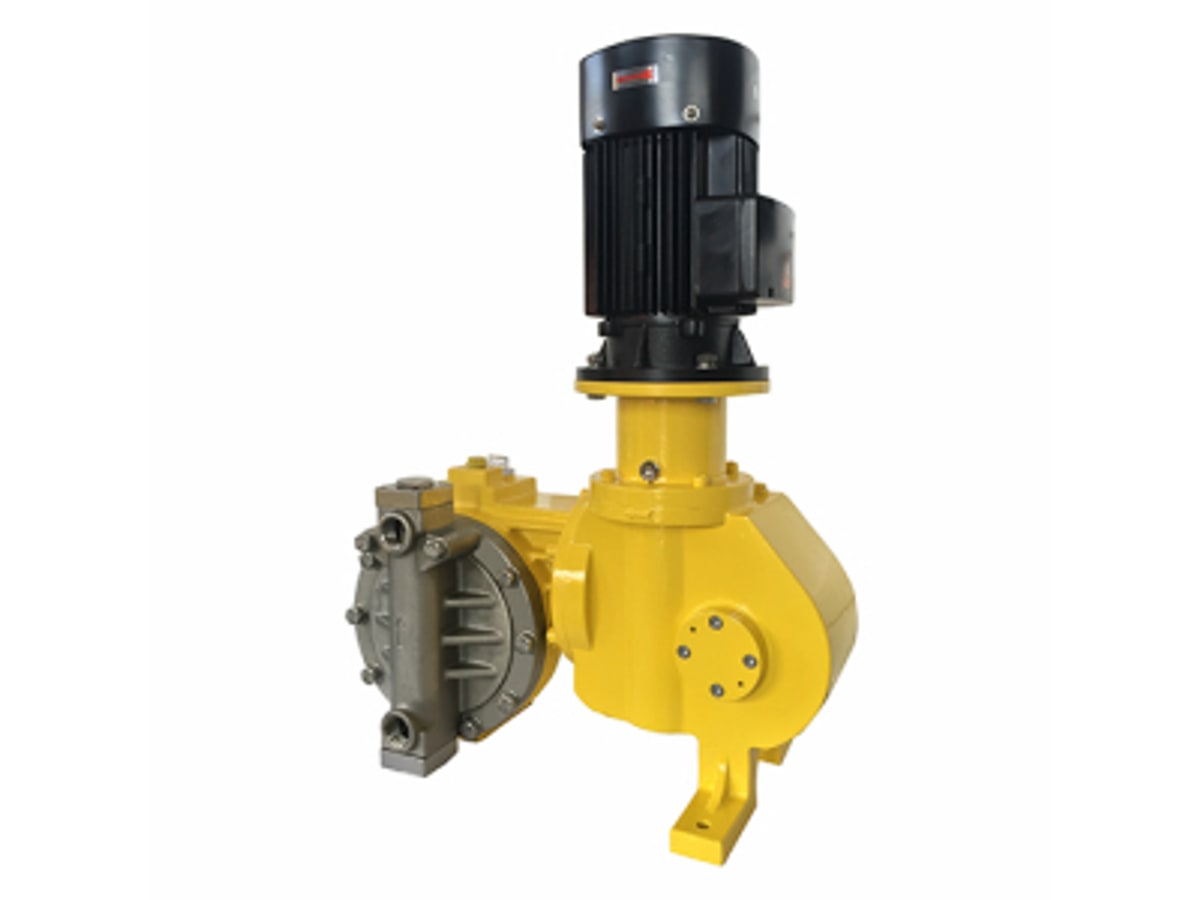

CNP RX Hydraulic Diaphragm Metering Pump
CNP RX hydraulic diaphragm. Max ≈1250 L/h, 211 bar.
Max flow
1250 L/h
Max pressure
211 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- Hydraulic diaphragm
- Up to 211 bar
- Built-in relief
- Oil-bath
Specifications
| Max flow | 1250 L/h |
| Max pressure | 211 bar |
| Brand | CNP |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Power | Notes | |
| RX1200 | 1250 L/h | 12 bar | 1.5 kW | metal / plastic flow approx. 1210/1250; plastic pressure approx. 10 bar | |
| RX950 | 1020 L/h | 15 bar | 1.5 kW | ||
| RX850 | 895 L/h | 16 bar | 1.5 kW | ||
| RX700 | 730 L/h | 20 bar | 1.5 kW | ||
| RX580 | 610 L/h | 25 bar | 1.5 kW | ||
| RX400 | 440 L/h | 30 bar | 1.1 kW | ||
| RX300 | 310 L/h | 50 bar | 1.5 kW | ||
| RX210 | 220 L/h | 63 bar | 1.1 kW | ||
| RX140 | 145 L/h | 100 bar | 1.5 kW | ||
| RX100 | 102 L/h | 128 bar | 1.1 kW | ||
| RX65 | 65 L/h | 175 bar | 1.5 kW | ||
| RX45 | 46 L/h | 211 bar | 1.1 kW |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
