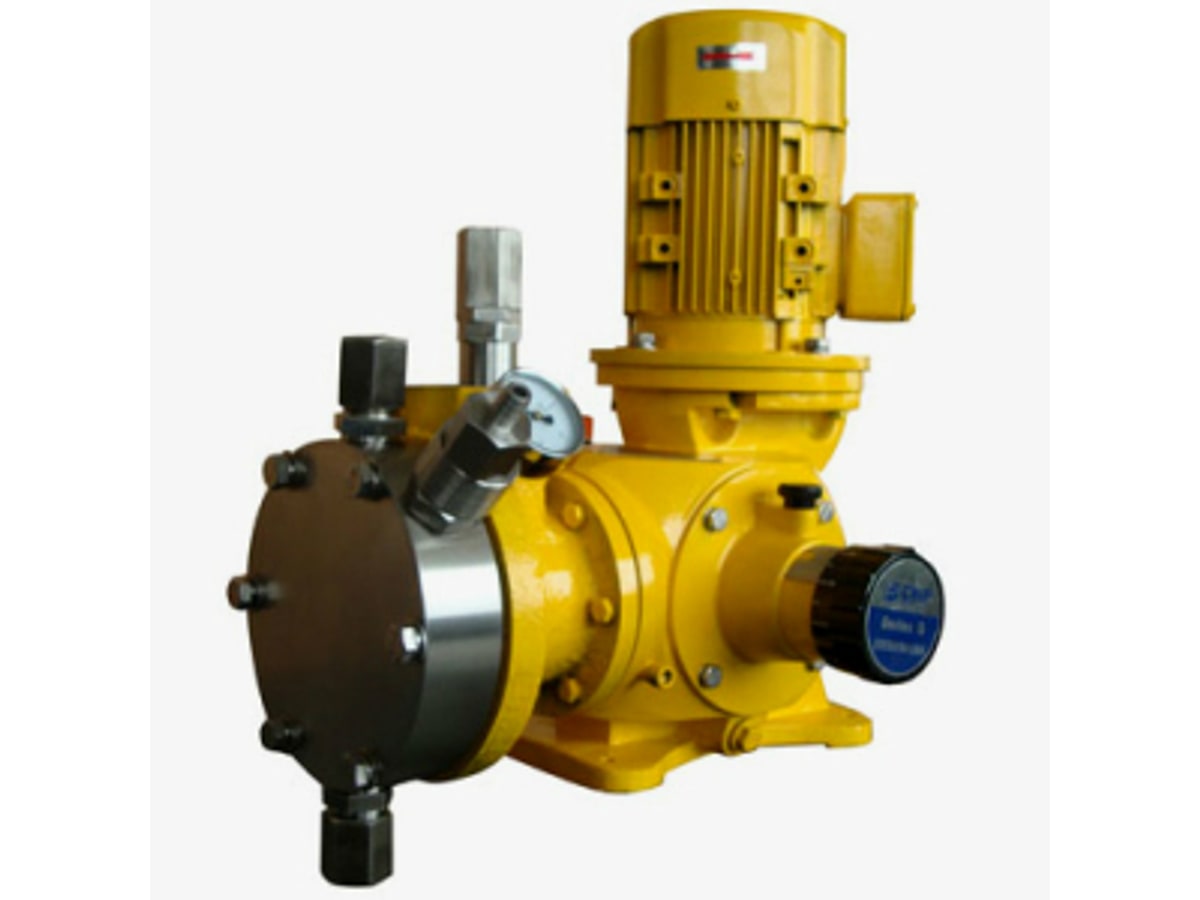

Nanfang GH Hydraulic Diaphragm Metering Pump
GH hydraulic diaphragm pump. Flow 15–500 L/h, max 40 bar, built-in adjustable relief valve.
Max flow
15 – 500 L/h
Max pressure
40 bar
Turndown / accuracy
±2% (adjustment 10%–100%)
Wetted materials
—
Protection
—
Power
—
Features
- Worm drive plunger / hydraulic diaphragm
- Built-in adjustable relief
- Diaphragm guard for longer life
- Optional double-diaphragm leak alarm
- Accuracy ±2%
Specifications
| Flow | 15 – 500 L/h |
| Max pressure | 40 bar |
| Accuracy | ±2% (adjustment 10%–100%) |
| Max liquid temp | 40°C (up to 120°C) |
| Max suction pressure | 2 bar |
| Brand | CNP |
| Max flow | 15 – 500 L/h |
| Status | type no. GAP — selection |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Notes | |
| GH (series) | 15 – 500 L/h | 40 bar | series, type no. selection |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
