Mechanical Diaphragm Pumps

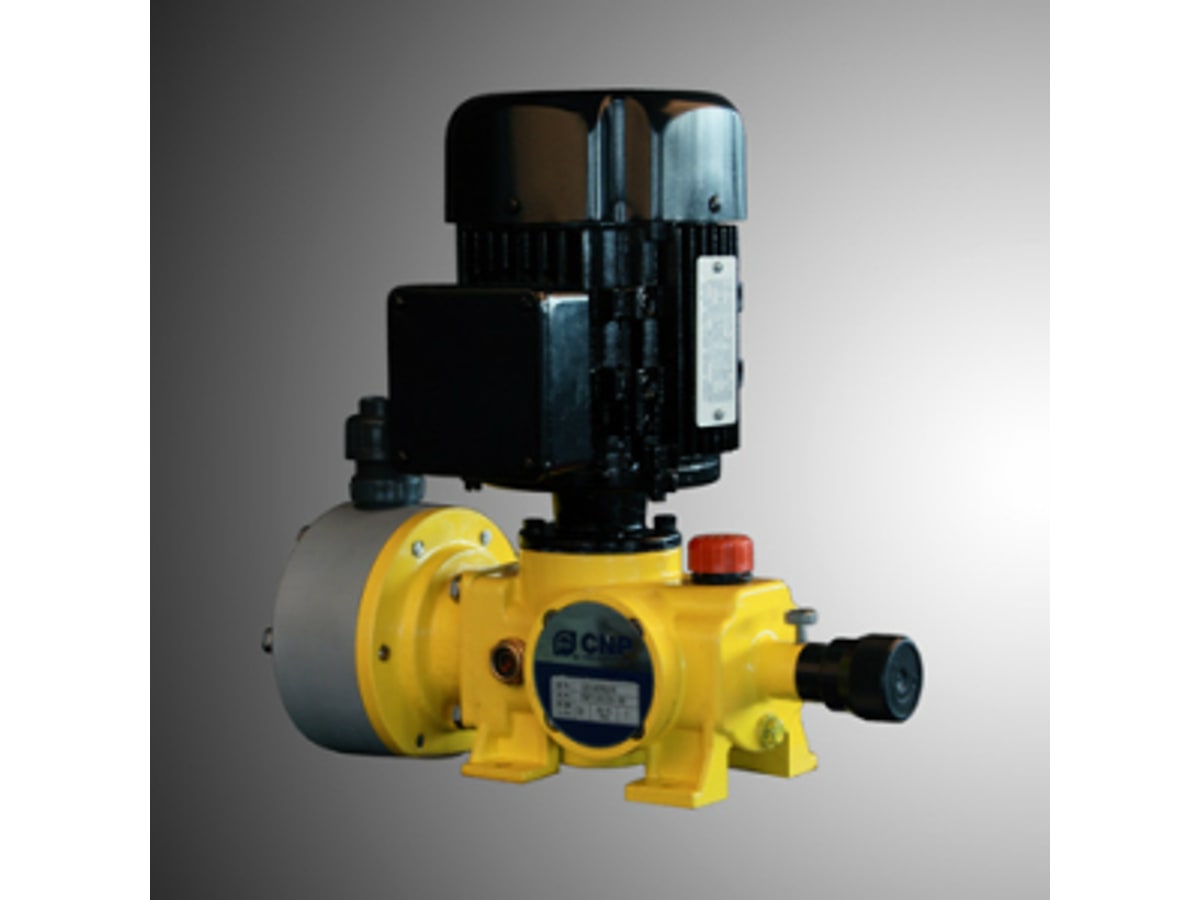

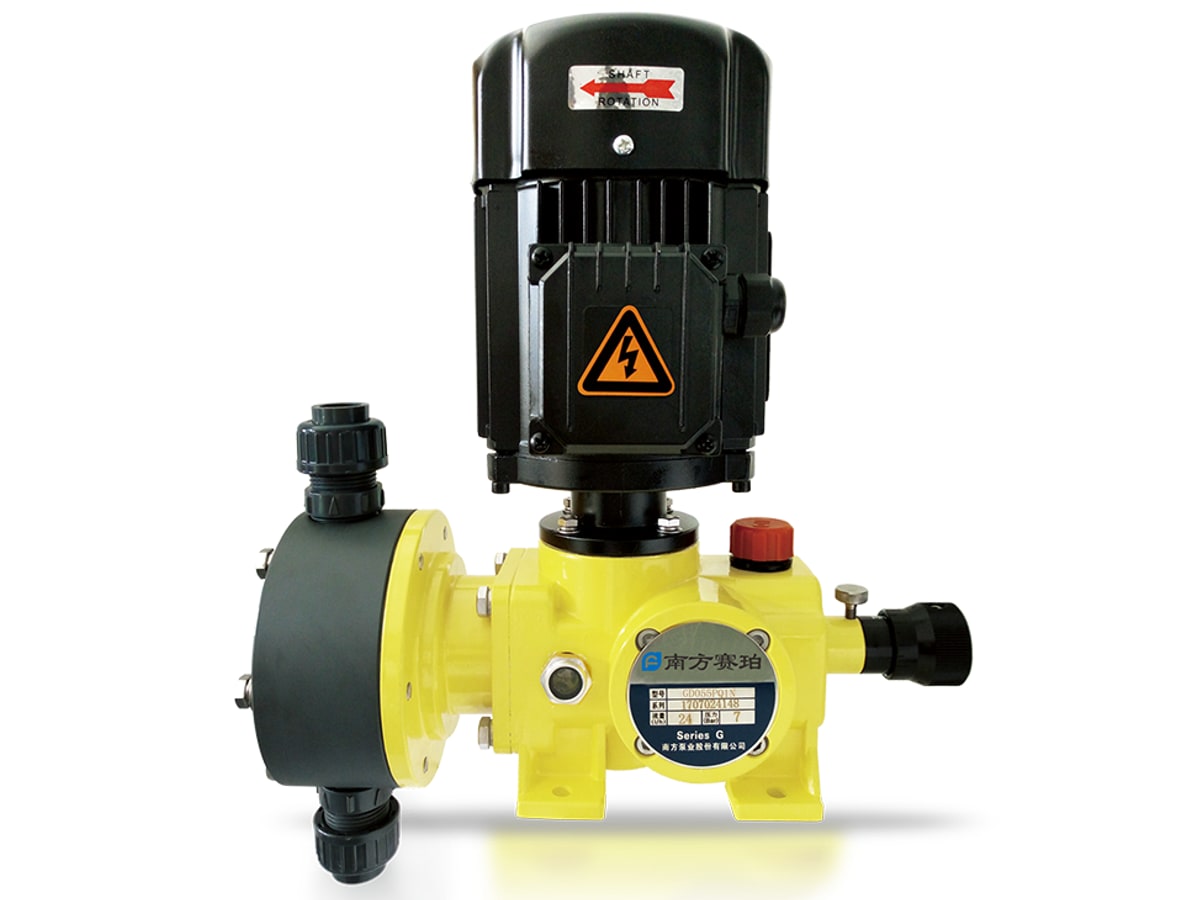

CNP GD Mechanical Diaphragm Metering Pump
CNP GD series. Max 135 L/h, 10 bar, 0.2 kW.
Max flow
135 L/h
Max pressure
10 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- Dual-cam drive
- Max 135 L/h / 10 bar
- ≈0.2 kW
- PVC/PVDF/316SS
Specifications
| Max flow | 135 L/h |
| Max pressure | 10 bar |
| Motor | 0.2 kW |
| Brand | CNP |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Power | Notes | |
| GD030 | 34 L/h | 10 bar | 0.2 kW | stroke 4mm | |
| GD050 | 44 L/h | 10 bar | 0.2 kW | stroke 4mm | |
| GD055 | 59 L/h | 10 bar | 0.2 kW | stroke 4mm | |
| GD070 | 71 L/h | 10 bar | 0.2 kW | stroke 4mm | |
| GD085 | 91 L/h | 8 bar | 0.2 kW | stroke 6mm | |
| GD100 | 101 L/h | 8 bar | 0.2 kW | stroke 6mm | |
| GD130 | 135 L/h | 8 bar | 0.2 kW | stroke 6mm |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
