Hydraulic Metering Pumps

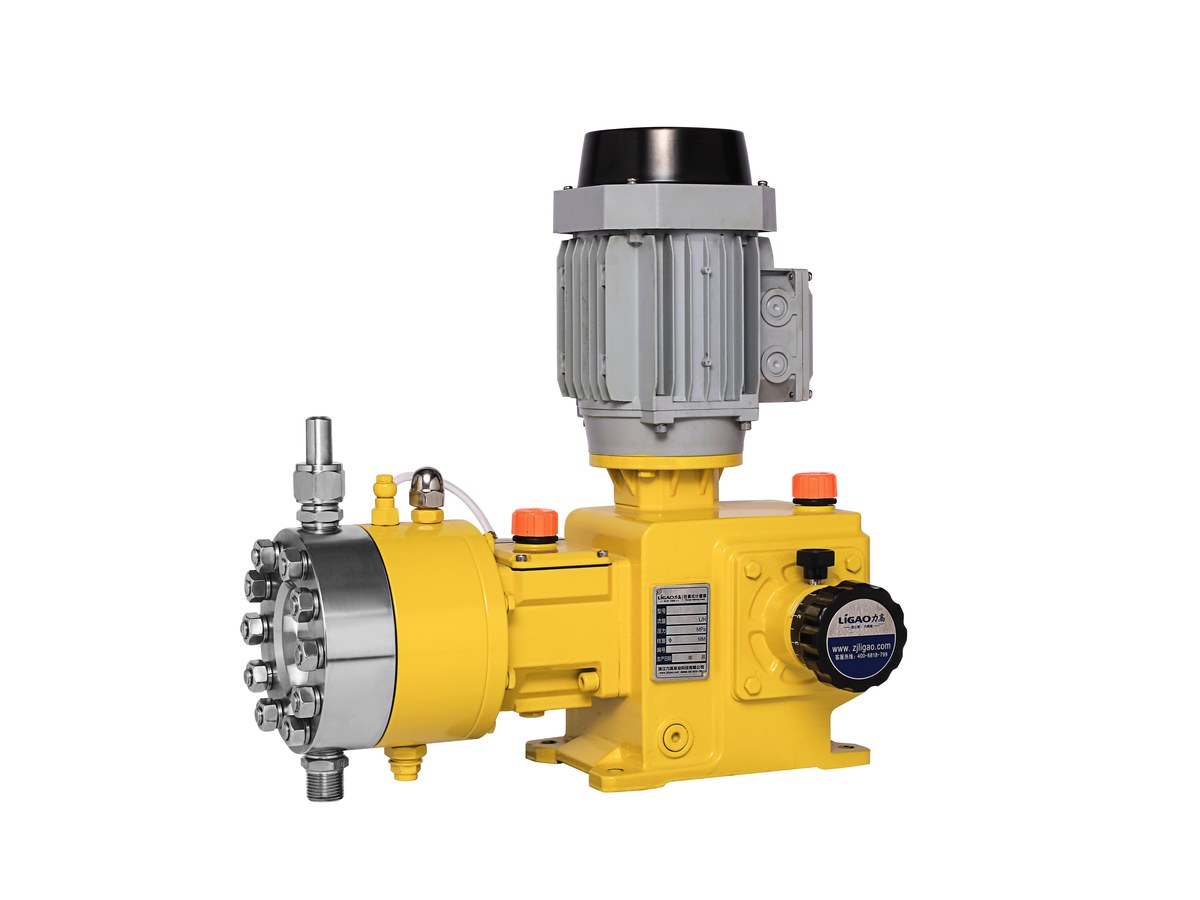

Ligao JYPX Hydraulic Diaphragm Metering Pump
Ligao JYPX hydraulic diaphragm pump. ~1–260 L/h, up to ~60 MPa. Optional multi-layer diaphragm with rupture alarm.
Max flow
1–260 L/h
Max pressure
max. approx. 60 MPa
Turndown / accuracy
—
Wetted materials
304/316L, PVDF/PTFE, 904, 2205, Ti, Hastelloy C
Protection
—
Power
—
Features
- Hydraulic diaphragm, leak-free
- Up to ~60 MPa
- Optional double diaphragm alarm
- PVDF/PTFE options
Specifications
| Flow range | 1–260 L/h |
| Max pressure | max. approx. 60 MPa |
| Stroke / control | high accuracy stroke adjustment |
| Wetted materials | 304/316L, PVDF/PTFE, 904, 2205, Ti, Hastelloy C |
| Diaphragm / plunger | hydraulic diaphragm (optional dual /) |
| Drive | hydraulic diaphragm drive |
Applications
Materials & media
| Wetted materials | 304/316L, PVDF/PTFE, 904, 2205, Ti, Hastelloy C |
| Diaphragm / plunger | hydraulic diaphragm (optional dual /) |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Stroke / control | high accuracy stroke adjustment |
Models & specs
| Model | Flow | Pressure | Power | |
| JYPX1/60 | 1 L/h | 60 MPa | see manual | |
| JYPX2/30 | 2 L/h | 30 MPa | see manual | |
| JYPX5/25 | 5 L/h | 25 MPa | see manual | |
| JYPX8/18 | 8 L/h | 18 MPa | see manual | |
| JYPX15/12 | 15 L/h | 12 MPa | see manual | |
| JYPX20/8 | 20 L/h | 8 MPa | see manual | |
| JYPX30/7 | 30 L/h | 7 MPa | see manual | |
| JYPX50/4.3 | 50 L/h | 4.3 MPa | see manual | |
| JYPX63/3.2 | 63 L/h | 3.2 MPa | see manual | |
| JYPX80/2.7 | 80 L/h | 2.7 MPa | see manual | |
| JYPX100/2.1 | 100 L/h | 2.1 MPa | see manual | |
| JYPX135/1.6 | 135 L/h | 1.6 MPa | see manual | |
| JYPX160/1.3 | 160 L/h | 1.3 MPa | see manual | |
| JYPX190/1.1 | 190 L/h | 1.1 MPa | see manual | |
| JYPX210/0.9 | 210 L/h | 0.9 MPa | see manual | |
| JYPX260/0.6 | 260 L/h | 0.6 MPa | see manual |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
