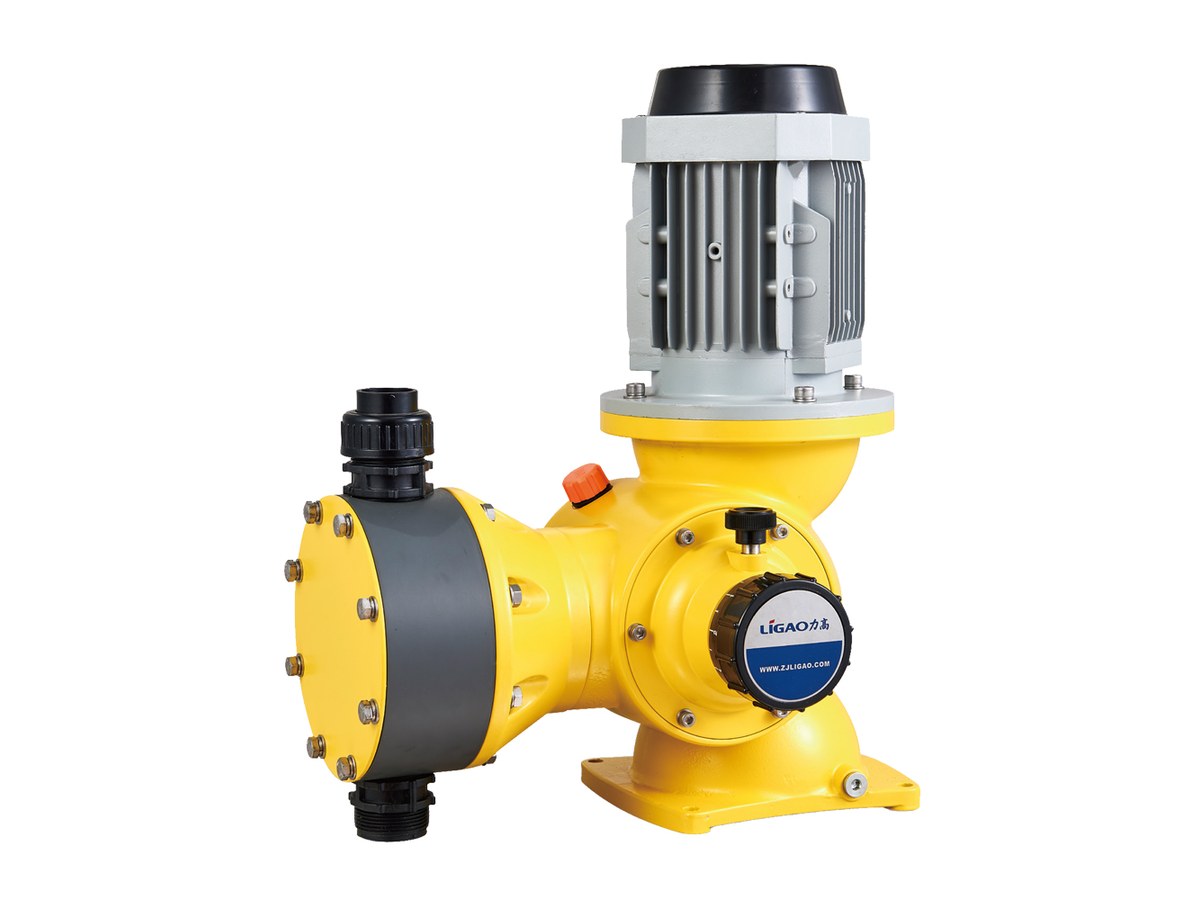

Ligao GD/2TGD Mechanical Diaphragm Metering Pump
Ligao GD single and 2TGD dual-head diaphragm pumps. Single ~2000–6000 L/h; dual up to ~12000 L/h; ~0.5–0.8 MPa.
Max flow
GD 2000–6000 L/h; 2TGD up to approx. 12000 L/h
Max pressure
max. approx. 0.8 MPa
Turndown / accuracy
—
Wetted materials
PVC、PVDF/PTFE、304/316L
Protection
—
Power
—
Features
- Large-flow diaphragm
- 2TGD dual head for higher flow / lower pulse
- Optional rupture detection
Specifications
| Flow range | GD 2000–6000 L/h; 2TGD up to approx. 12000 L/h |
| Max pressure | max. approx. 0.8 MPa |
| Stroke / control | manual stroke; optional controller |
| Wetted materials | PVC、PVDF/PTFE、304/316L |
| Diaphragm / plunger | PTFE; optional double diaphragm |
| Drive | motor mechanical drive |
Applications
Materials & media
| Wetted materials | PVC、PVDF/PTFE、304/316L |
| Diaphragm / plunger | PTFE; optional double diaphragm |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Stroke / control | manual stroke; optional controller |
Models & specs
| Model | Flow | Pressure | Power | |
| GD2000/0.8 | 2000 L/h | 0.8 MPa | see manual | |
| GD3000/0.7 | 3000 L/h | 0.7 MPa | see manual | |
| GD4000/0.7 | 4000 L/h | 0.7 MPa | see manual | |
| GD6000/0.5 | 6000 L/h | 0.5 MPa | see manual | |
| 2TGD4000/0.8 | 4000 L/h | 0.8 MPa | see manual | |
| 2TGD6000/0.7 | 6000 L/h | 0.7 MPa | see manual | |
| 2TGD8000/0.7 | 8000 L/h | 0.7 MPa | see manual | |
| 2TGD12000/0.5 | 12000 L/h | 0.5 MPa | see manual |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
