Plunger Metering Pumps
Ligao 2JX Dual-Head Plunger Metering Pump

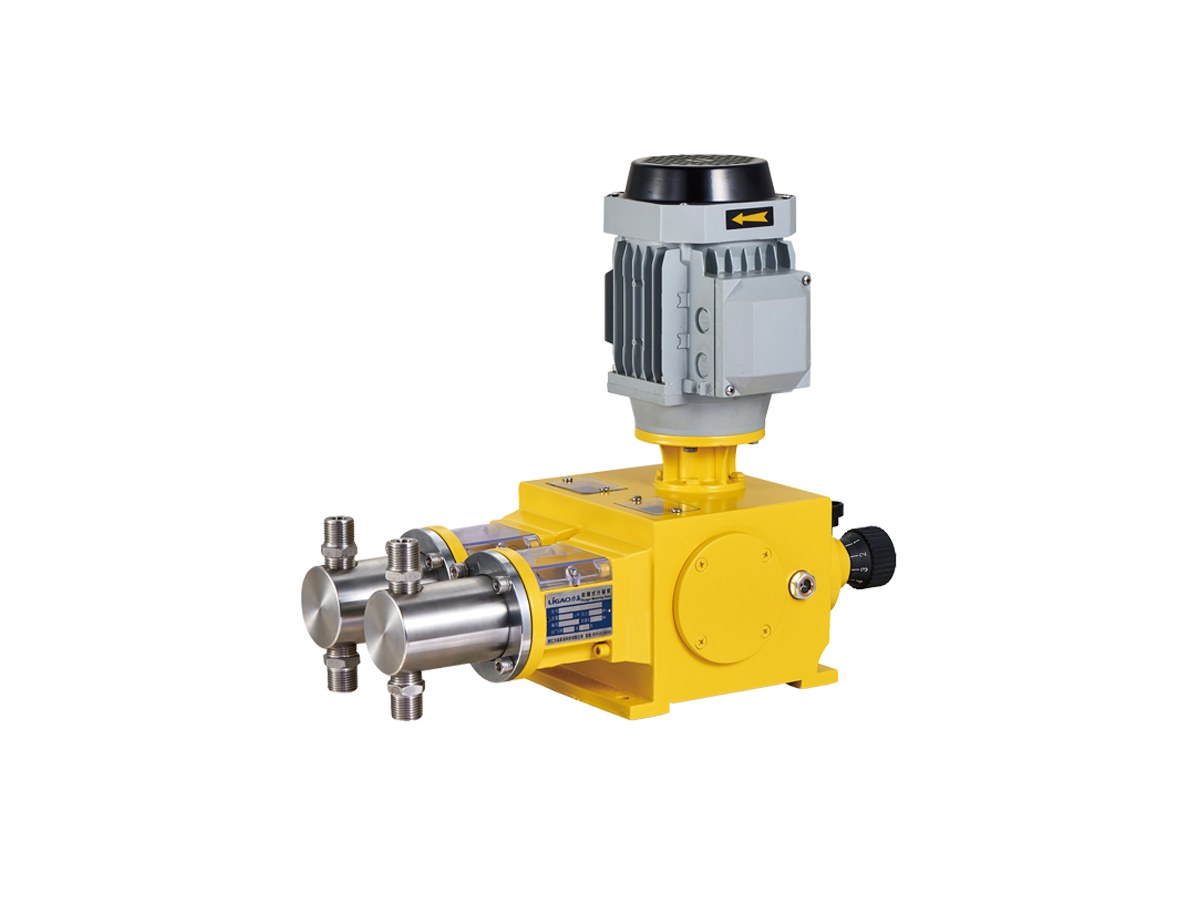

Ligao 2JX dual-head plunger pump. Combined ~4–520 L/h, up to ~40 MPa.
Max flow
4–520 L/h (double head)
Max pressure
max. approx. 40 MPa
Turndown / accuracy
—
Wetted materials
304, 316L etc.
Protection
—
Power
—
Features
- Dual head for flow/pulse
- Ratio dosing
- Ceramic plunger
Specifications
| Flow range | 4–520 L/h (double head) |
| Max pressure | max. approx. 40 MPa |
| Stroke / control | high accuracy stroke adjustment |
| Wetted materials | 304, 316L etc. |
| Diaphragm / plunger | ceramic plunger |
| Drive | motor plunger drive (double head) |
Applications
Materials & media
| Wetted materials | 304, 316L etc. |
| Diaphragm / plunger | ceramic plunger |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Stroke / control | high accuracy stroke adjustment |
Models & specs
| Model | Flow | Pressure | Power | |
| 2JX4/40 | 4 L/h | 40 MPa | see manual | |
| 2JX8/26 | 8 L/h | 26 MPa | see manual | |
| 2JX16/14 | 16 L/h | 14 MPa | see manual | |
| 2JX22/10 | 22 L/h | 10 MPa | see manual | |
| 2JX40/5.4 | 40 L/h | 5.4 MPa | see manual | |
| 2JX60/3.5 | 60 L/h | 3.5 MPa | see manual | |
| 2JX100/2.2 | 100 L/h | 2.2 MPa | see manual | |
| 2JX130/1.7 | 130 L/h | 1.7 MPa | see manual | |
| 2JX170/1.3 | 170 L/h | 1.3 MPa | see manual | |
| 2JX200/1.0 | 200 L/h | 1.0 MPa | see manual | |
| 2JX250/0.8 | 250 L/h | 0.8 MPa | see manual | |
| 2JX300/0.6 | 300 L/h | 0.6 MPa | see manual | |
| 2JX380/0.6 | 380 L/h | 0.6 MPa | see manual | |
| 2JX450/0.5 | 450 L/h | 0.5 MPa | see manual | |
| 2JX520/0.4 | 520 L/h | 0.4 MPa | see manual |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
