Hydraulic Metering Pumps

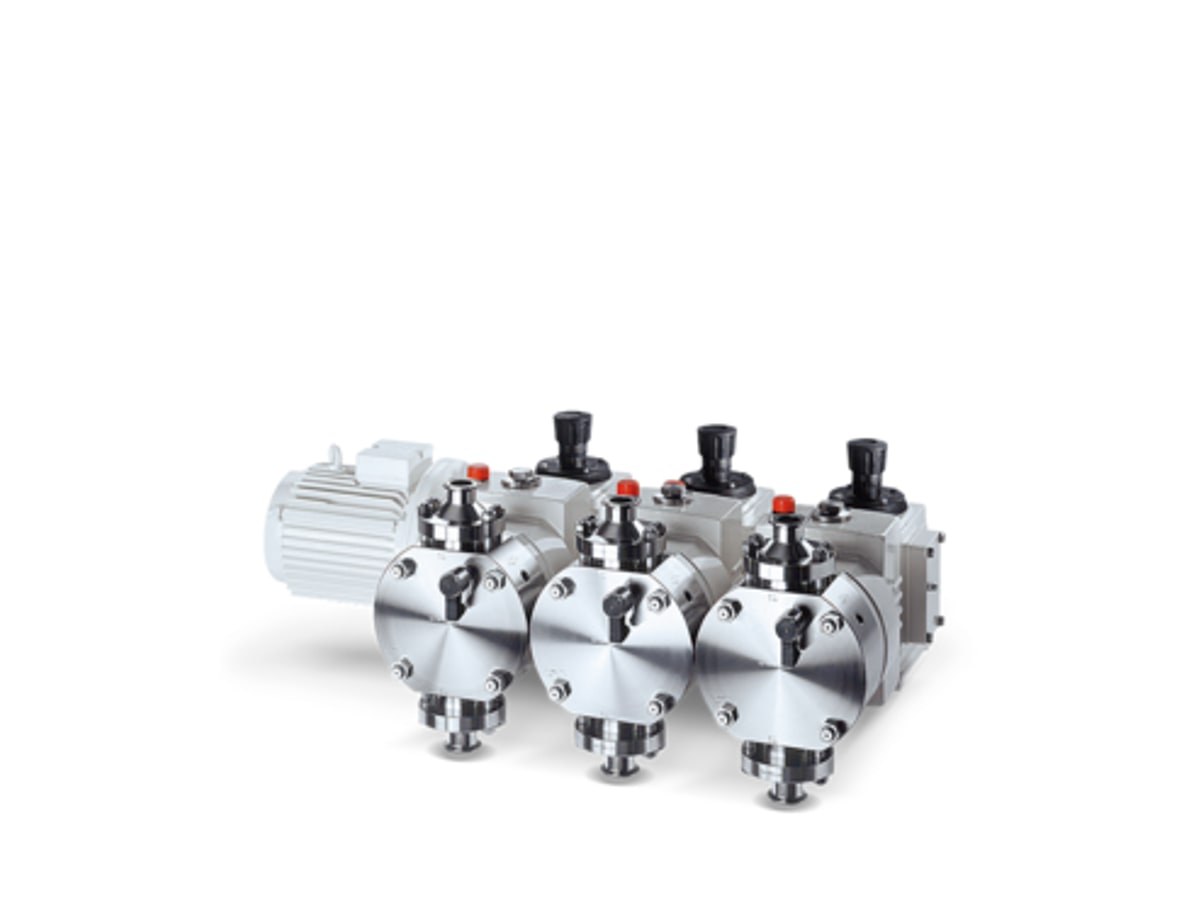

LEWA ecoflow Sanitary/Hygienic Diaphragm Metering Pump
LEWA ecoflow sanitary/hygienic hydraulically actuated diaphragm metering pump for food and pharma. Per lewa.com: up to ~6 m³/h per head, up to ~500 bar; polished surfaces, minimal dead space, FDA-compliant wetted parts, CIP/SIP.
Max flow
max. approx. 6 m³/h
Max pressure
max. approx. 500 bar
Turndown / accuracy
—
Wetted materials
max. approx. 6 m³/h
Protection
—
Power
—
Features
- Sanitary/hygienic design, minimal dead space, polished surfaces
- FDA-compliant wetted parts (USP Class VI)
- Patented DPS + sandwich diaphragm monitoring
- CIP/SIP capable
- Suction capability down to ~0.1 bar abs.
- API 675 compliant
Specifications
| Flow per head | max. approx. 6 m³/h |
| Discharge pressure | max. approx. 500 bar |
| Pump head example | M900: 500 bar / 6 m³/h; -20/+150 °C; viscosity up to approx. 100,000 mPa·s |
| Wetted materials | stainless steel etc. |
| Cleaning | CIP / SIP |
| Brand | LEWA |
Applications
Materials & media
| Wetted materials | stainless steel etc. |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Notes | |
| ecoflow sanitary M900 | ≤6 m³/h | ≤500 bar | PTFE sandwich diaphragm; -20/+150 °C |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
