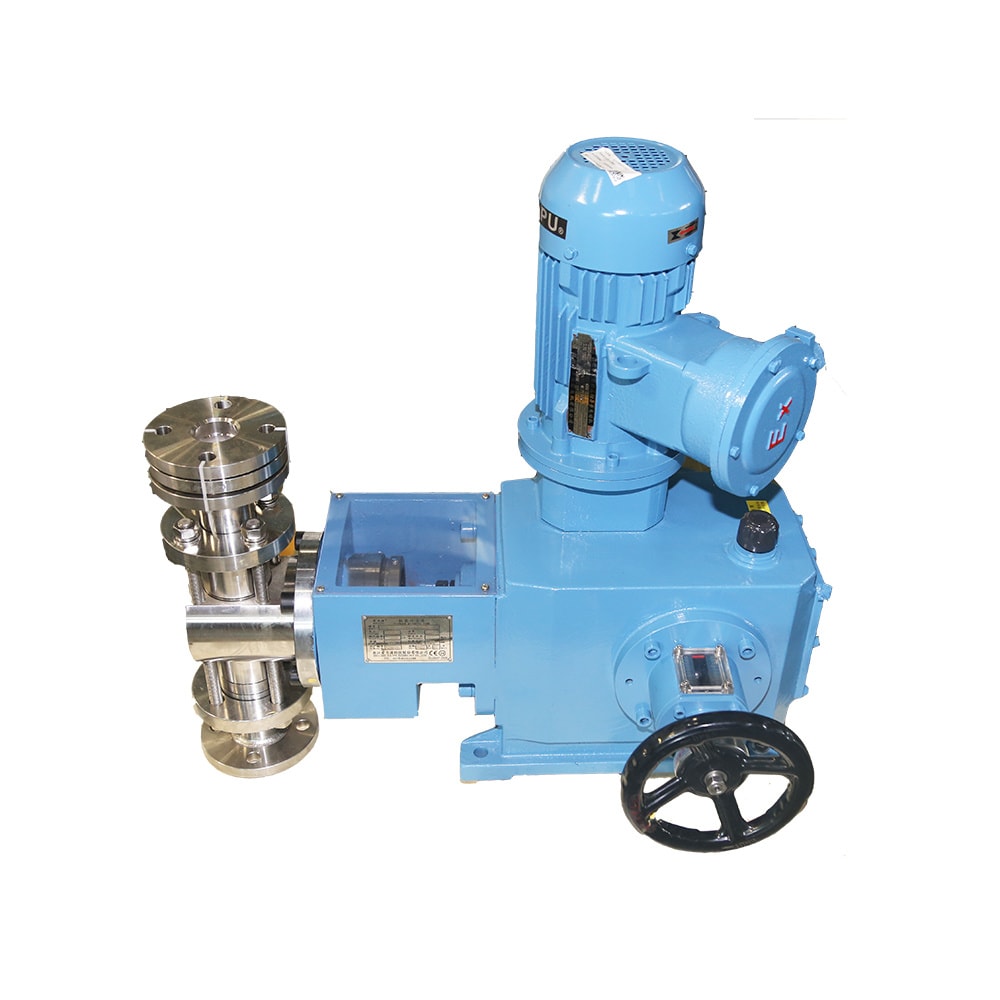

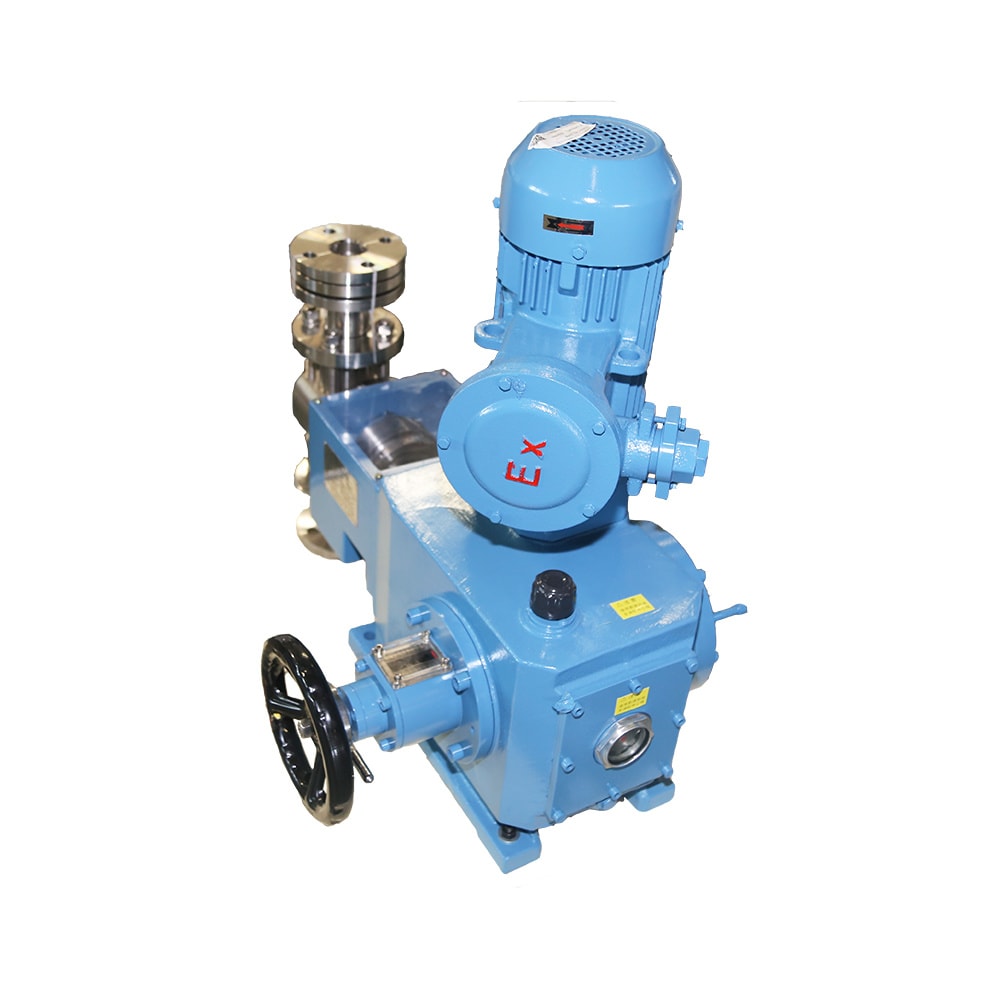

Ailipu J5.0 Plunger Metering Pump

Name: Ailipu J5.0 Plunger Metering Pump
Brand: Ailipu

J5.0 plunger pump (5.0 kN). Flow ~7.5 – 1800 L/h, up to ~50 MPa. Stroke 32 mm, ~135 kg.

Max flow

7.5 – 1800 L/h

Max pressure

0.25 – 50 MPa

Turndown / accuracy

stroke 10%–100% accuracy ±1%

Wetted materials

SS304 / SS316L / Hastelloy / ceramic etc. (see B.3)

Protection

—

Power

—

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Metering Pump). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

5.0 kN frame
32 mm stroke
Multi-head combinable
Standard/Ex/VFD motors

Specifications

Type	plunger type metering pump
Flow range	7.5 – 1800 L/h
Pressure range	0.25 – 50 MPa
Stroke	32 mm
Accuracy	stroke 10%–100% accuracy ±1%
Suction lift	≤6 m (plunger)
Wetted materials	SS304 / SS316L / Hastelloy / ceramic etc. (see B.3)
Motor	Ex-proof / VFD optional
Standard	GB/T 7782; optional API 675
Frame force	5.0 kN
Weight	approx. 135 kg
Brand	Ailipu

Applications

Oil & petrochemical

Chemical

Power

Nuclear

Mining

Food & pharma

Materials & media

Wetted materials

SS304 / SS316L / Hastelloy / ceramic etc. (see B.3)

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Control options are listed in notes or confirmed on inquiry.

Models & specs

Model	Flow	Pressure	Power	Notes
J5.0-7.5/50	7.5 L/h	50 MPa	1.5 kW	plunger φ8 mm; stroke 32 mm; speed 102 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-7.5/40	7.5 L/h	40 MPa	0.75 kW	plunger φ8 mm; stroke 32 mm; speed 102 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-9.5/50	9.5 L/h	50 MPa	1.5 kW	plunger φ8 mm; stroke 32 mm; speed 120 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-9.5/32	9.5 L/h	32 MPa	0.75 kW	plunger φ8 mm; stroke 32 mm; speed 120 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-12/50	12 L/h	50 MPa	1.5 kW	plunger φ10 mm; stroke 32 mm; speed 102 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-12/32	12 L/h	32 MPa	0.75 kW	plunger φ10 mm; stroke 32 mm; speed 102 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-16/50	16 L/h	50 MPa	1.5 kW	plunger φ10 mm; stroke 32 mm; speed 120 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-16/25	16 L/h	25 MPa	0.75 kW	plunger φ10 mm; stroke 32 mm; speed 120 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-19/50	19 L/h	50 MPa	2.2 kW	plunger φ10 mm; stroke 32 mm; speed 145 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-19/40	19 L/h	40 MPa	1.5 kW	plunger φ12 mm; stroke 32 mm; speed 102 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-19/20	19 L/h	20 MPa	0.75 kW	plunger φ12 mm; stroke 32 mm; speed 102 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-24/32	24 L/h	32 MPa	1.5 kW	plunger φ12 mm; stroke 32 mm; speed 120 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-24/16	24 L/h	16 MPa	0.75 kW	plunger φ12 mm; stroke 32 mm; speed 120 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-28/40	28 L/h	40 MPa	2.2 kW	plunger φ12 mm; stroke 32 mm; speed 145 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-32/25	32 L/h	25 MPa	1.5 kW	plunger φ16 mm; stroke 32 mm; speed 102 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-32/12.5	32 L/h	12.5 MPa	0.75 kW	plunger φ16 mm; stroke 32 mm; speed 102 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-40/20	40 L/h	20 MPa	1.5 kW	plunger φ16 mm; stroke 32 mm; speed 120 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-40/10	40 L/h	10 MPa	0.75 kW	plunger φ16 mm; stroke 32 mm; speed 120 spm; connection φ8 compression fitting; weight approx. 135 kg
J5.0-50/20	50 L/h	25 MPa	2.2 kW	plunger φ16 mm; stroke 32 mm; speed 145 spm; connection DN15; weight approx. 135 kg
J5.0-50/16	50 L/h	16 MPa	1.5 kW	plunger φ20 mm; stroke 32 mm; speed 102 spm; connection DN15; weight approx. 135 kg
J5.0-50/8	50 L/h	8 MPa	0.75 kW	plunger φ20 mm; stroke 32 mm; speed 102 spm; connection DN15; weight approx. 135 kg
J5.0-63/12.5	63 L/h	12.5 MPa	1.5 kW	plunger φ20 mm; stroke 32 mm; speed 120 spm; connection DN15; weight approx. 135 kg
J5.0-63/6.3	63 L/h	6.3 MPa	0.75 kW	plunger φ20 mm; stroke 32 mm; speed 145 spm; connection DN15; weight approx. 135 kg
J5.0-80/12.5	80 L/h	16 MPa	2.2 kW	plunger φ20 mm; stroke 32 mm; speed 145 spm; connection DN15; weight approx. 135 kg
J5.0-80/10	80 L/h	10 MPa	1.5 kW	plunger φ25 mm; stroke 32 mm; speed 102 spm; connection DN15; weight approx. 135 kg
J5.0-80/5	80 L/h	5 MPa	0.75 kW	plunger φ25 mm; stroke 32 mm; speed 102 spm; connection DN15; weight approx. 135 kg
J5.0-100/8	100 L/h	8 MPa	1.5 kW	plunger φ25 mm; stroke 32 mm; speed 120 spm; connection DN15; weight approx. 135 kg
J5.0-100/4	100 L/h	4 MPa	0.75 kW	plunger φ25 mm; stroke 32 mm; speed 120 spm; connection DN15; weight approx. 135 kg
J5.0-125/8	125 L/h	10 MPa	2.2 kW	plunger φ25 mm; stroke 32 mm; speed 145 spm; connection DN15; weight approx. 135 kg
J5.0-125/6.3	125 L/h	6.3 MPa	1.5 kW	plunger φ32 mm; stroke 32 mm; speed 102 spm; connection DN15; weight approx. 135 kg
J5.0-125/3.7	125 L/h	3.7 MPa	0.75 kW	plunger φ32 mm; stroke 32 mm; speed 102 spm; connection DN15; weight approx. 135 kg
J5.0-160/5	160 L/h	5 MPa	1.5 kW	plunger φ32 mm; stroke 32 mm; speed 120 spm; connection DN15; weight approx. 135 kg
J5.0-160/2.5	160 L/h	2.5 MPa	0.75 kW	plunger φ32 mm; stroke 32 mm; speed 120 spm; connection DN15; weight approx. 135 kg
J5.0-200/5	200 L/h	6.3 MPa	2.2 kW	plunger φ32 mm; stroke 32 mm; speed 145 spm; connection DN20; weight approx. 135 kg
J5.0-200/4	200 L/h	4 MPa	1.5 kW	plunger φ40 mm; stroke 32 mm; speed 102 spm; connection DN20; weight approx. 135 kg
J5.0-200/2.0	200 L/h	2.0 MPa	0.75 kW	plunger φ40 mm; stroke 32 mm; speed 102 spm; connection DN20; weight approx. 135 kg
J5.0-250/3.2	250 L/h	3.2 MPa	1.5 kW	plunger φ40 mm; stroke 32 mm; speed 120 spm; connection DN20; weight approx. 135 kg
J5.0-250/1.6	250 L/h	1.6 MPa	0.75 kW	plunger φ40 mm; stroke 32 mm; speed 120 spm; connection DN20; weight approx. 135 kg
J5.0-320/3.2	320 L/h	4 MPa	2.2 kW	plunger φ40 mm; stroke 32 mm; speed 145 spm; connection DN20; weight approx. 135 kg
J5.0-320/2.5	320 L/h	2.5 MPa	1.5 kW	plunger φ50 mm; stroke 32 mm; speed 102 spm; connection DN20; weight approx. 135 kg
J5.0-320/1.3	320 L/h	1.3 MPa	0.75 kW	plunger φ50 mm; stroke 32 mm; speed 102 spm; connection DN20; weight approx. 135 kg
J5.0-400/2	400 L/h	2 MPa	1.5 kW	plunger φ50 mm; stroke 32 mm; speed 120 spm; connection DN20; weight approx. 135 kg
J5.0-400/1	400 L/h	1 MPa	0.75 kW	plunger φ50 mm; stroke 32 mm; speed 120 spm; connection DN20; weight approx. 135 kg
J5.0-500/2	500 L/h	2.5 MPa	2.2 kW	plunger φ50 mm; stroke 32 mm; speed 145 spm; connection DN25; weight approx. 135 kg
J5.0-500/1.6	500 L/h	1.6 MPa	1.5 kW	plunger φ60 mm; stroke 32 mm; speed 102 spm; connection DN25; weight approx. 135 kg
J5.0-500/0.8	500 L/h	0.8 MPa	0.75 kW	plunger φ60 mm; stroke 32 mm; speed 102 spm; connection DN25; weight approx. 135 kg
J5.0-600/1.3	600 L/h	1.3 MPa	1.5 kW	plunger φ60 mm; stroke 32 mm; speed 120 spm; connection DN25; weight approx. 135 kg
J5.0-600/0.63	600 L/h	0.63 MPa	0.75 kW	plunger φ60 mm; stroke 32 mm; speed 120 spm; connection DN25; weight approx. 135 kg
J5.0-720/1.5	720 L/h	1.6 MPa	2.2 kW	plunger φ60 mm; stroke 32 mm; speed 145 spm; connection DN25; weight approx. 135 kg
J5.0-800/1	800 L/h	1 MPa	1.5 kW	plunger φ80 mm; stroke 32 mm; speed 102 spm; connection DN25; weight approx. 135 kg
J5.0-800/0.5	800 L/h	0.5 MPa	0.75 kW	plunger φ80 mm; stroke 32 mm; speed 102 spm; connection DN25; weight approx. 135 kg
J5.0-1000/0.8	1000 L/h	0.8 MPa	1.5 kW	plunger φ80 mm; stroke 32 mm; speed 120 spm; connection DN25; weight approx. 135 kg
J5.0-1000/0.4	1000 L/h	0.4 MPa	0.75 kW	plunger φ80 mm; stroke 32 mm; speed 120 spm; connection DN25; weight approx. 135 kg
J5.0-1250/0.8	1250 L/h	0.8 MPa	2.2 kW	plunger φ80 mm; stroke 32 mm; speed 145 spm; connection DN32; weight approx. 135 kg
J5.0-1200/0.63	1200 L/h	0.63 MPa	1.5 kW	plunger φ85 mm; stroke 32 mm; speed 120 spm; connection DN32; weight approx. 135 kg
J5.0-1200/0.32	1200 L/h	0.32 MPa	0.75 kW	plunger φ85 mm; stroke 32 mm; speed 120 spm; connection DN32; weight approx. 135 kg
J5.0-1500/0.8	1500 L/h	0.8 MPa	2.2 kW	plunger φ85 mm; stroke 32 mm; speed 145 spm; connection DN40; weight approx. 135 kg
J5.0-1500/0.5	1500 L/h	0.5 MPa	1.5 kW	plunger φ95 mm; stroke 32 mm; speed 120 spm; connection DN40; weight approx. 135 kg
J5.0-1500/0.25	1500 L/h	0.25 MPa	0.75 kW	plunger φ95 mm; stroke 32 mm; speed 120 spm; connection DN40; weight approx. 135 kg
J5.0-1800/0.63	1800 L/h	0.63 MPa	2.2 kW	plunger φ95 mm; stroke 32 mm; speed 145 spm; connection DN40; weight approx. 135 kg
