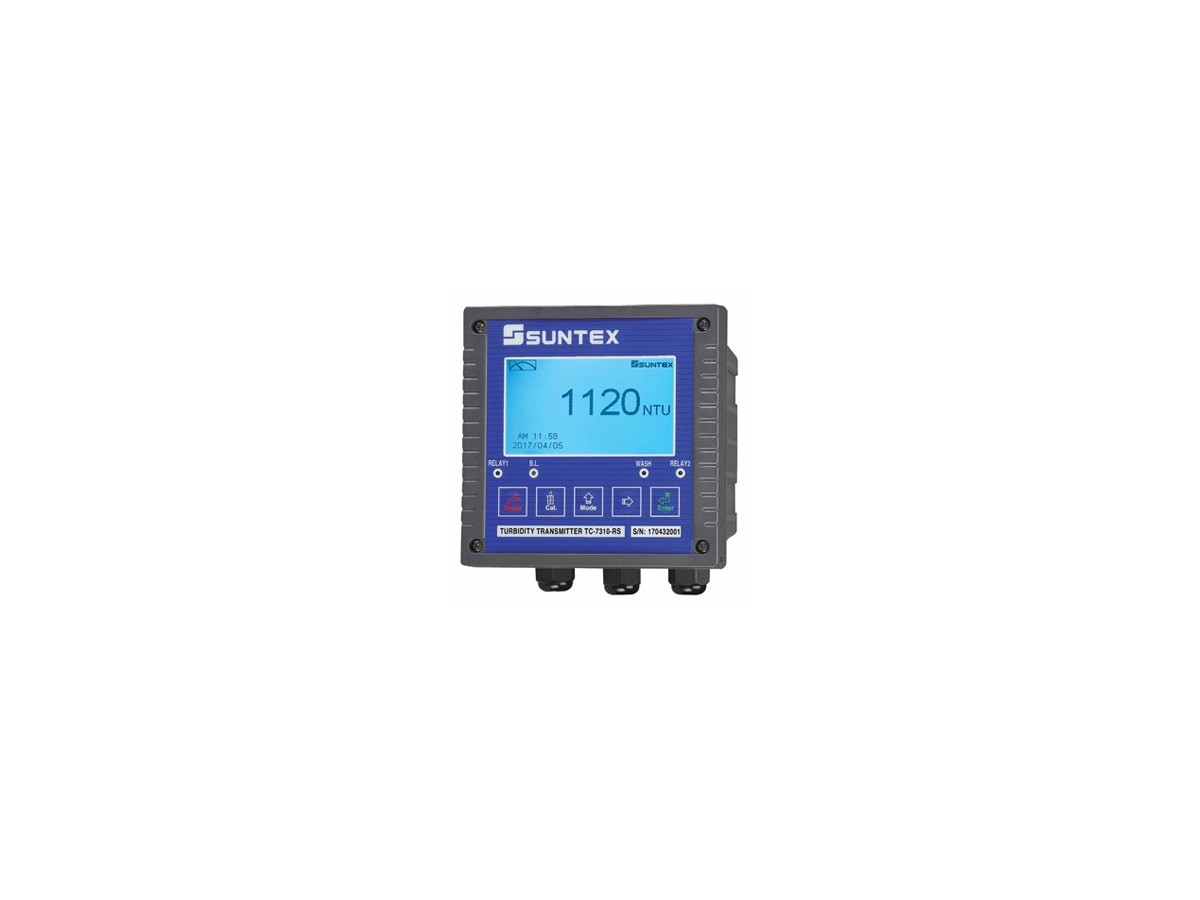

Suntex TC-7310 Transmitter
Suntex TC-7310. Official Suntex water-quality instrument series.
Max flow
—
Max pressure
—
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- 144×144 intelligent turbidity/suspended solids transmitter
- Chinese (simplified/traditional) and English user interface
- Outdoor waterproof design for wall, panel or pipe mounting
- Large LCM display with light-sensing backlight
- Clear graphic display with guided menus for easy operation
- Automatic cleaning contact with programmable output
- Selectable 1–5 point turbidity calibration and factor adjustment
- Password lock and key-combination access to setup/calibration for added security
- Isolated 0/4–20 mA output, max. load 500 Ω
- Isolated RS-485 interface, Modbus protocol
- Modbus provides readings, sample adjustment, event log and control parameters
- Digital readout plus real-time and historical trend charts
Specifications
| Brand | Suntex |
| Model | TC-7310 |
| Category | water analyzer |
| Feature | 144x144 smart turbidity / suspended solids transmitter |
| Feature | — |
| Feature | outside waterproof type wall-mounted, panel-mounted, pipe mounting |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Notes | |
| TC-7310 | TC-7310 smart turbidity / suspended solids transmitter |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
