Multi-Parameter Analyzers

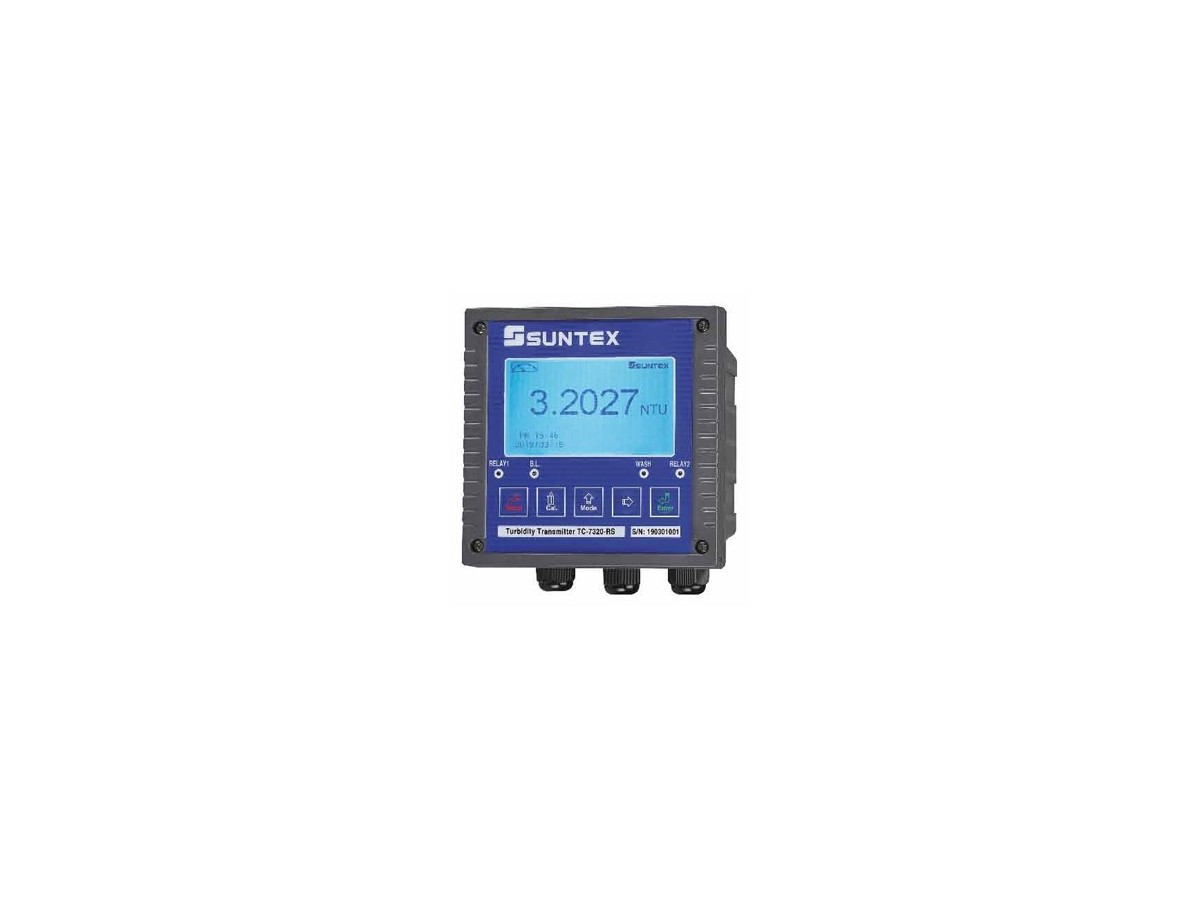

Suntex TC-7320RS Transmitter
Suntex TC-7320RS. Official Suntex water-quality instrument series.
Max flow
—
Max pressure
—
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- 144×144 intelligent turbidity transmitter
- Dual-channel design for two online turbidity sensors (TD-200 / TD-201)
- Chinese (simplified/traditional) and English user interface
- Outdoor waterproof design for wall, panel or pipe mounting
- Large LCM display with light-sensing backlight
- Clear graphic display with guided menus for easy operation
- Automatic cleaning contact with programmable output
- Selectable 1–5 point turbidity calibration
- Password lock and key-combination access to setup/calibration for added security
- Two isolated 0/4–20 mA outputs, max. load 500 Ω
- Isolated RS-485 interface, Modbus protocol
- Modbus allows reading or setting of readings, sample adjustment, event log and control parameters
Specifications
| Brand | Suntex |
| Model | TC-7320RS |
| Category | water analyzer |
| Communication | RS-485 Modbus |
| Analog Output | channels 0/4~20mA |
| Feature | 144x144 smart turbidity transmitter |
| Feature | dual can dual online turbidity TD-200 TD -201 |
| Feature | — |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Communication | RS-485 Modbus |
| Analog Output | channels 0/4~20mA |
Models & specs
| Model | Notes | |
| TC-7320RS | TC-7320RS smart type low turbidity transmitter |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
